FAG 2210-K-TVH-C3 50 mm ID 2 Row Ball Bearing -, 90 mm OD
- RS Stock No.:
- 260-0559
- Mfr. Part No.:
- 2210-K-TVH-C3
- Brand:
- FAG
Subtotal (1 unit)*
£70.34
(exc. VAT)
£84.41
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 5 unit(s) shipping from 05 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £70.34 |
*price indicative
- RS Stock No.:
- 260-0559
- Mfr. Part No.:
- 2210-K-TVH-C3
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Product Type | Ball Bearing | |
| Inside Diameter | 50mm | |
| Outside Diameter | 90mm | |
| Race Width | 23mm | |
| Cage Material | Polyamide | |
| Ball Material | Steel | |
| End Type | Open | |
| Number of Rows | 2 | |
| Static Load Rating | 9.5kN | |
| Internal Clearance | C3 | |
| Dynamic Load Rating | 28.5kN | |
| Bore Type | Tapered | |
| Series | 22..-K-TVH | |
| Standards/Approvals | No | |
| Limiting Speed | 8100rpm | |
| Bearing Type | Self-Aligning | |
| Race Type | Plain | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Product Type Ball Bearing | ||
Inside Diameter 50mm | ||
Outside Diameter 90mm | ||
Race Width 23mm | ||
Cage Material Polyamide | ||
Ball Material Steel | ||
End Type Open | ||
Number of Rows 2 | ||
Static Load Rating 9.5kN | ||
Internal Clearance C3 | ||
Dynamic Load Rating 28.5kN | ||
Bore Type Tapered | ||
Series 22..-K-TVH | ||
Standards/Approvals No | ||
Limiting Speed 8100rpm | ||
Bearing Type Self-Aligning | ||
Race Type Plain | ||
- COO (Country of Origin):
- DE

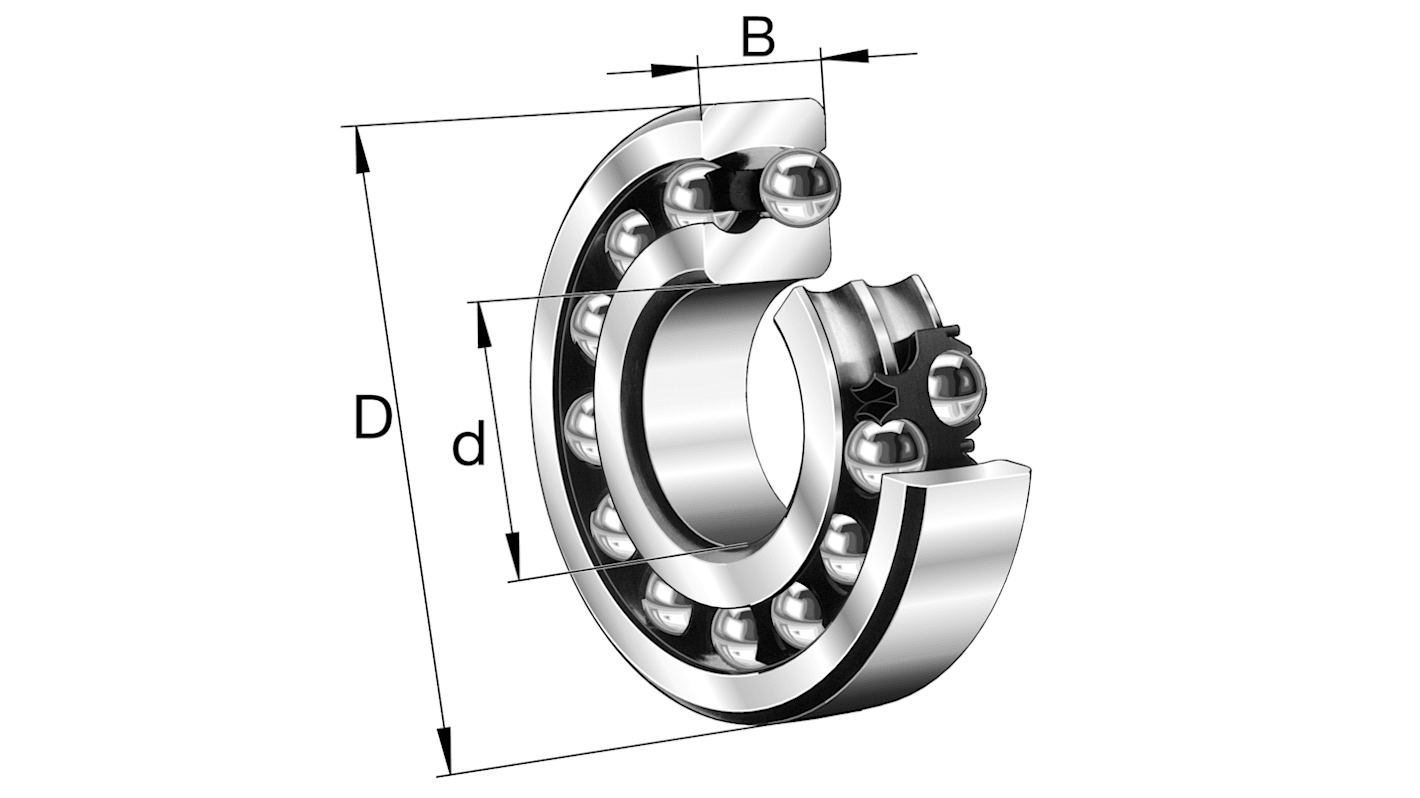

The FAG self-aligning ball bearing has 50 mm bore diameter and 23 mm width with H310 adapter sleeve.
Operating temperature -30 to 120 °C
