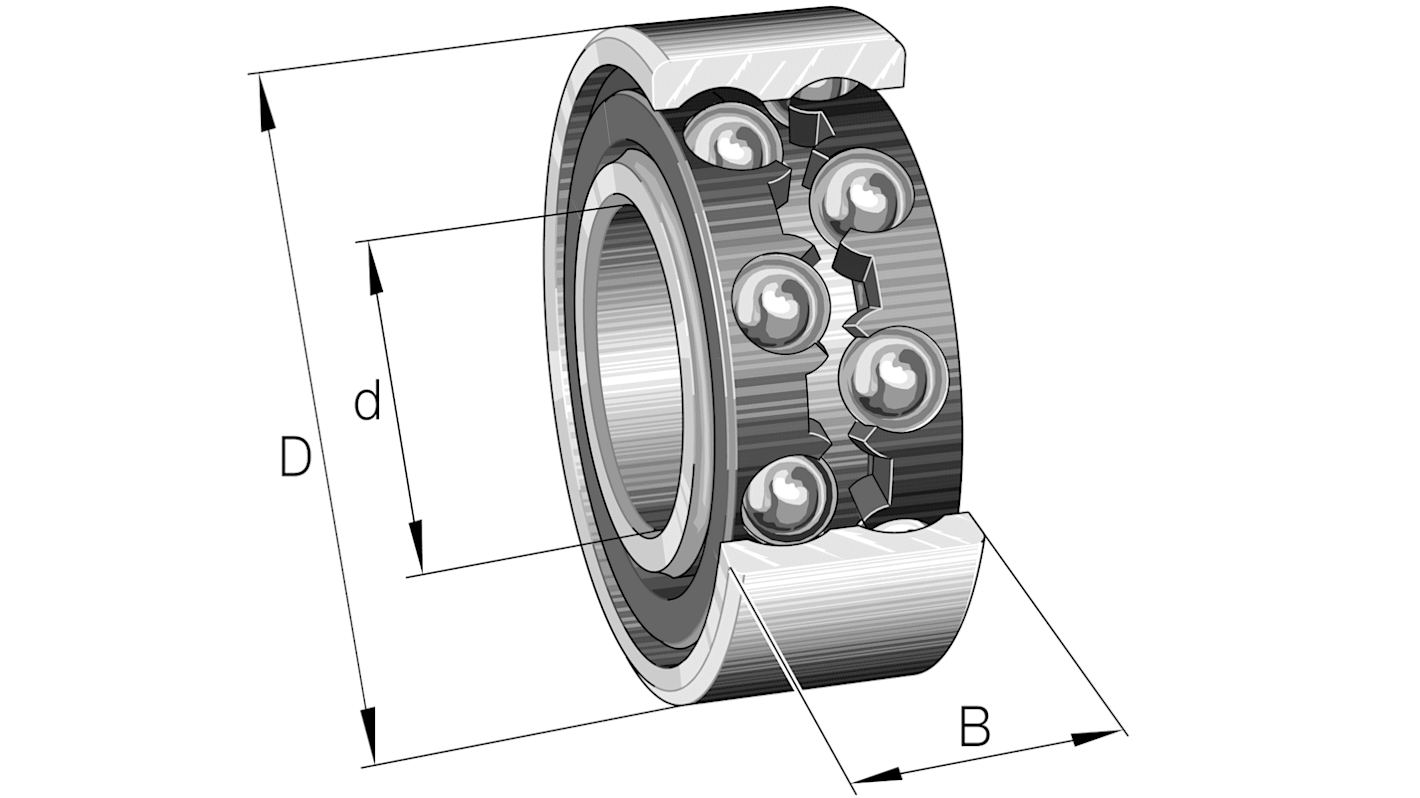

FAG 4306-BB-TVH 2 Row Ball Bearing - 30 mm ID, 72 mm OD
- RS Stock No.:
- 260-0551
- Mfr. Part No.:
- 4306-BB-TVH
- Brand:
- FAG
Subtotal (1 unit)*
£69.63
(exc. VAT)
£83.56
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 16 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £69.63 |
*price indicative
- RS Stock No.:
- 260-0551
- Mfr. Part No.:
- 4306-BB-TVH
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Inside Diameter | 30 mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 72 mm | |
| Race Width | 27mm | |
| Cage Material | Polyamide | |
| Ball Material | Steel | |
| End Type | Open | |
| Number of Rows | 2 | |
| Static Load Rating | 30kN | |
| Internal Clearance | CN | |
| Dynamic Load Rating | 44kN | |
| Bore Type | Parallel | |
| Series | 43-BB-TVH | |
| Standards/Approvals | No | |
| Limiting Speed | 8000rpm | |
| Bearing Type | Double Row Deep Groove Ball | |
| Race Type | Plain | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Inside Diameter 30 mm | ||
Product Type Ball Bearing | ||
Outside Diameter 72 mm | ||
Race Width 27mm | ||
Cage Material Polyamide | ||
Ball Material Steel | ||
End Type Open | ||
Number of Rows 2 | ||
Static Load Rating 30kN | ||
Internal Clearance CN | ||
Dynamic Load Rating 44kN | ||
Bore Type Parallel | ||
Series 43-BB-TVH | ||
Standards/Approvals No | ||
Limiting Speed 8000rpm | ||
Bearing Type Double Row Deep Groove Ball | ||
Race Type Plain | ||
- COO (Country of Origin):
- SK
The FAG deep groove ball bearing has 30 mm bore diameter and 27 mm width with 13 calculation factor.
Operating temperature -20 to 120 °C
