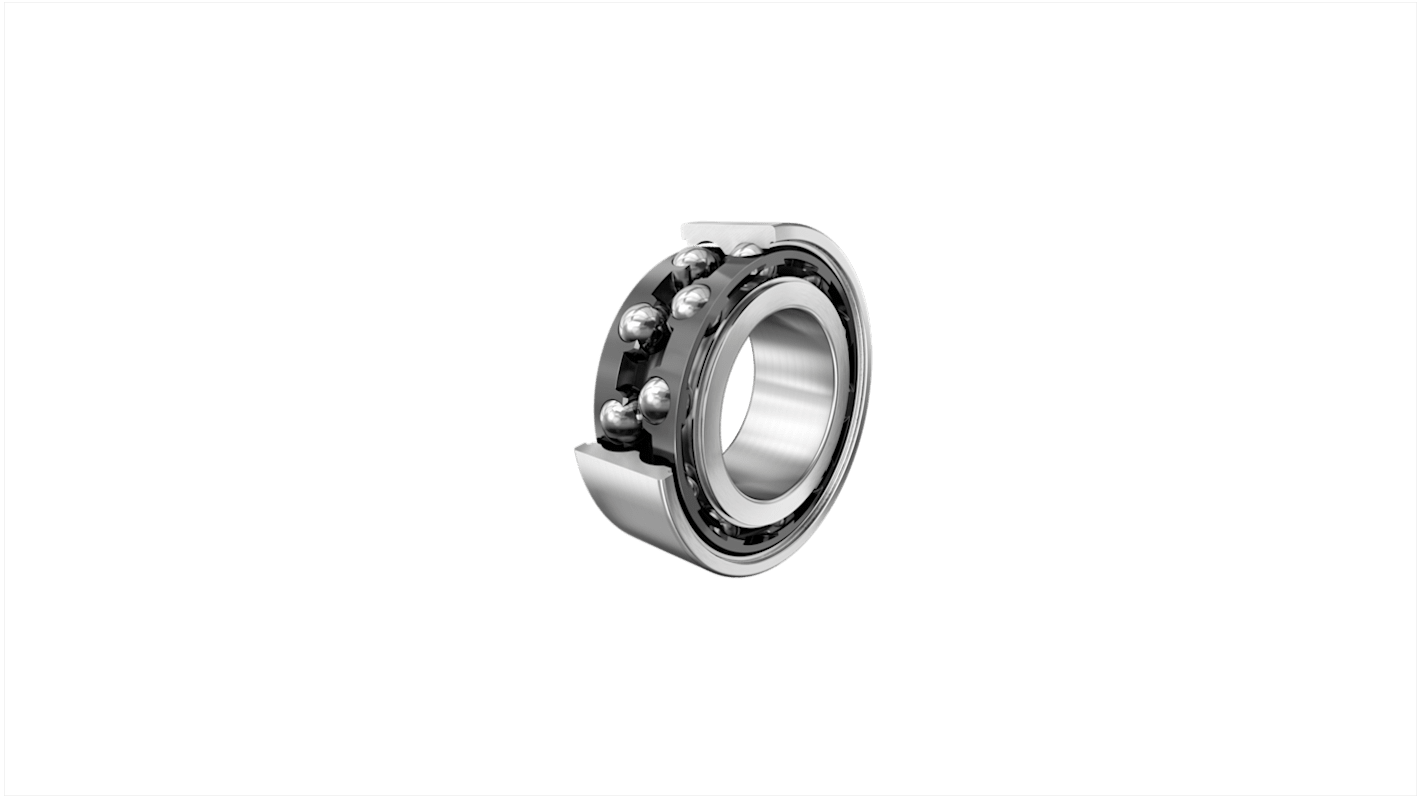

FAG 3306-BD-XL-TVH 2 Row Ball Bearing - 30 mm ID, 72 mm OD 30.2 mm Race Width
- RS Stock No.:
- 260-0728
- Mfr. Part No.:
- 3306-BD-XL-TVH
- Brand:
- FAG
Subtotal (1 unit)*
£87.94
(exc. VAT)
£105.53
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 1 unit(s) shipping from 21 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £87.94 |
*price indicative
Our Better World range features products that make it easy for you to make a greener product choice you can trust.
Learn more about RS Better World products
- RS Stock No.:
- 260-0728
- Mfr. Part No.:
- 3306-BD-XL-TVH
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Inside Diameter | 30mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 72mm | |
| Race Width | 30.2mm | |
| Ball Material | Steel | |
| Race Material | Steel | |
| Cage Material | Polyamide | |
| End Type | Open | |
| Number of Rows | 2 | |
| Internal Clearance | CN | |
| Static Load Rating | 29.5kN | |
| Contact Angle | 30° | |
| Dynamic Load Rating | 43kN | |
| Bore Type | Parallel | |
| Standards/Approvals | No | |
| Series | 33-BD-XL- TVH | |
| Better World Product | Yes | |
| Limiting Speed | 10400rpm | |
| Better World Claim | Extended Product Life, Saves Energy | |
| Race Type | Plain | |
| Bearing Type | Double Row Angular Contact Ball | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Inside Diameter 30mm | ||
Product Type Ball Bearing | ||
Outside Diameter 72mm | ||
Race Width 30.2mm | ||
Ball Material Steel | ||
Race Material Steel | ||
Cage Material Polyamide | ||
End Type Open | ||
Number of Rows 2 | ||
Internal Clearance CN | ||
Static Load Rating 29.5kN | ||
Contact Angle 30° | ||
Dynamic Load Rating 43kN | ||
Bore Type Parallel | ||
Standards/Approvals No | ||
Series 33-BD-XL- TVH | ||
Better World Product Yes | ||
Limiting Speed 10400rpm | ||
Better World Claim Extended Product Life, Saves Energy | ||
Race Type Plain | ||
Bearing Type Double Row Angular Contact Ball | ||
- COO (Country of Origin):
- SK
The FAG angular contact ball bearing has 30 mm bore diameter and 30.2 mm width with 30 degree contact angle.
Operating temperature -30 to 120 °C
