FAG 4200-BB-TVH 2 Row Ball Bearing - 10 mm ID, 30 mm OD
- RS Stock No.:
- 260-0546
- Mfr. Part No.:
- 4200-BB-TVH
- Brand:
- FAG
Subtotal (1 unit)*
£30.17
(exc. VAT)
£36.20
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £30.17 |
*price indicative
- RS Stock No.:
- 260-0546
- Mfr. Part No.:
- 4200-BB-TVH
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Inside Diameter | 10 mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 30 mm | |
| Race Width | 14mm | |
| Ball Material | Steel | |
| Cage Material | Polyamide | |
| End Type | Open | |
| Number of Rows | 2 | |
| Internal Clearance | CN | |
| Static Load Rating | 4.75kN | |
| Dynamic Load Rating | 8.3kN | |
| Bore Type | Parallel | |
| Standards/Approvals | No | |
| Series | 42-BB-TVH | |
| Limiting Speed | 21800rpm | |
| Bearing Type | Double Row Deep Groove Ball | |
| Race Type | Plain | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Inside Diameter 10 mm | ||
Product Type Ball Bearing | ||
Outside Diameter 30 mm | ||
Race Width 14mm | ||
Ball Material Steel | ||
Cage Material Polyamide | ||
End Type Open | ||
Number of Rows 2 | ||
Internal Clearance CN | ||
Static Load Rating 4.75kN | ||
Dynamic Load Rating 8.3kN | ||
Bore Type Parallel | ||
Standards/Approvals No | ||
Series 42-BB-TVH | ||
Limiting Speed 21800rpm | ||
Bearing Type Double Row Deep Groove Ball | ||
Race Type Plain | ||
- COO (Country of Origin):
- SK

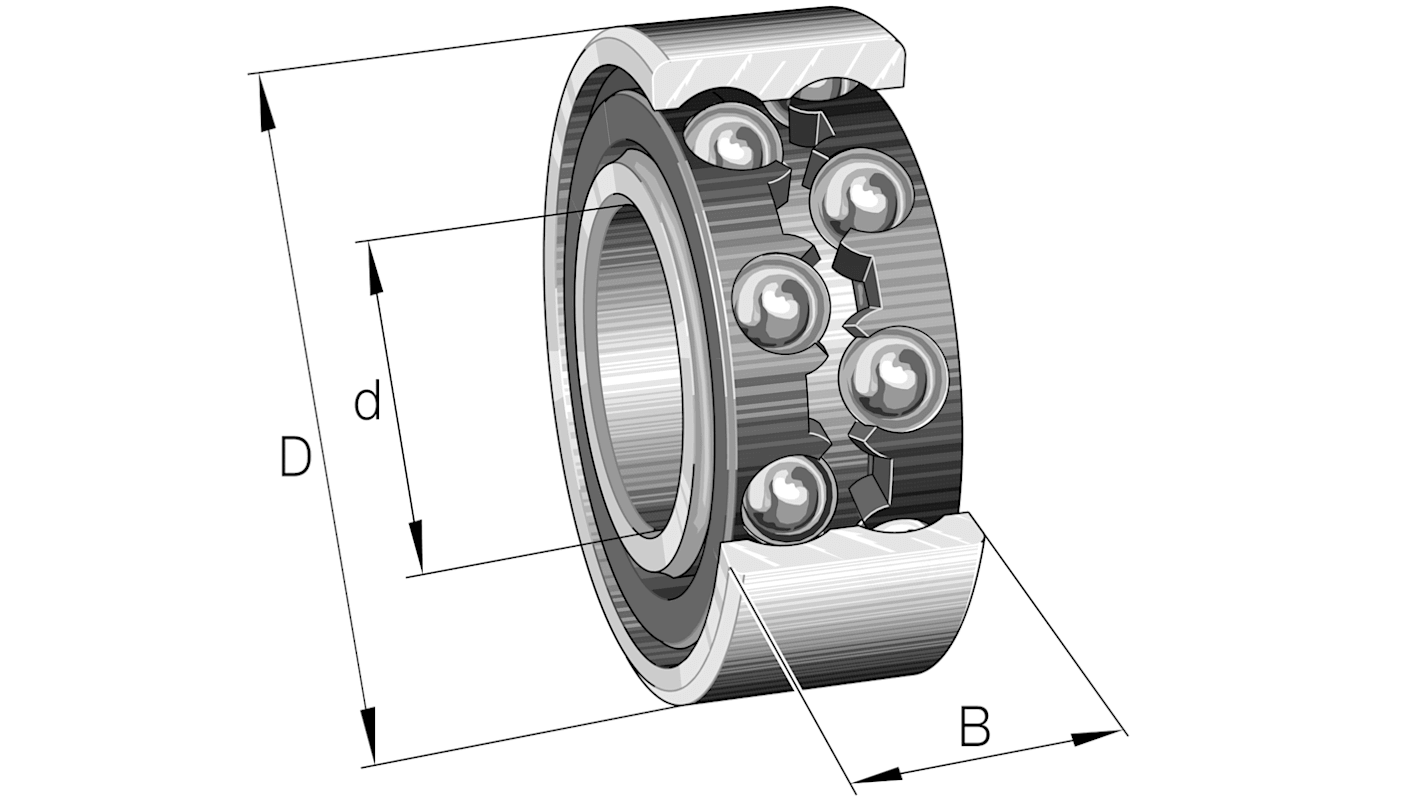

The FAG deep groove ball bearing has 10 mm bore diameter and 14 mm width with 13.1 calculation factor.
Operating temperature -20 to 120 °C
