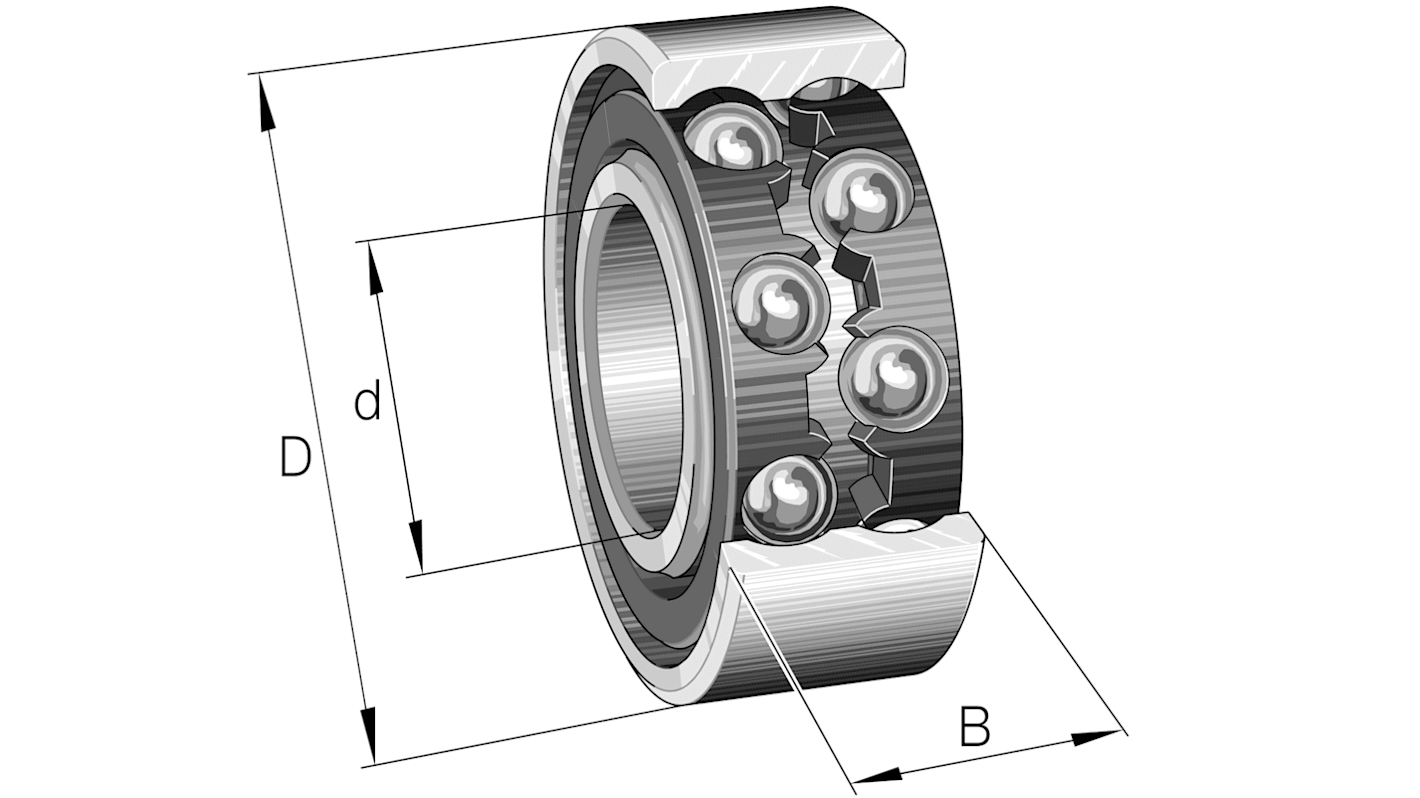

FAG 4204-BB-TVH 2 Row Ball Bearing - 20 mm ID, 47 mm OD
- RS Stock No.:
- 260-0543
- Mfr. Part No.:
- 4204-BB-TVH
- Brand:
- FAG
Subtotal (1 unit)*
£35.64
(exc. VAT)
£42.77
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 26 unit(s) shipping from 31 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £35.64 |
*price indicative
- RS Stock No.:
- 260-0543
- Mfr. Part No.:
- 4204-BB-TVH
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Inside Diameter | 20mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 47mm | |
| Race Width | 18mm | |
| Ball Material | Steel | |
| Cage Material | Polyamide | |
| End Type | Open | |
| Number of Rows | 2 | |
| Static Load Rating | 13.2kN | |
| Internal Clearance | CN | |
| Dynamic Load Rating | 20.9kN | |
| Standards/Approvals | No | |
| Series | 42-BB-TVH | |
| Bore Type | Parallel | |
| Limiting Speed | 14700rpm | |
| Race Type | Plain | |
| Bearing Type | Double Row Deep Groove Ball | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Inside Diameter 20mm | ||
Product Type Ball Bearing | ||
Outside Diameter 47mm | ||
Race Width 18mm | ||
Ball Material Steel | ||
Cage Material Polyamide | ||
End Type Open | ||
Number of Rows 2 | ||
Static Load Rating 13.2kN | ||
Internal Clearance CN | ||
Dynamic Load Rating 20.9kN | ||
Standards/Approvals No | ||
Series 42-BB-TVH | ||
Bore Type Parallel | ||
Limiting Speed 14700rpm | ||
Race Type Plain | ||
Bearing Type Double Row Deep Groove Ball | ||
- COO (Country of Origin):
- SK
The FAG deep groove ball bearing has 20 mm bore diameter and 18 mm width with 13.1 calculation factor.
Operating temperature -20 to 120 °C
