Select all	Attribute	Value
	Brand	FAG
	Inside Diameter	60mm
	Outside Diameter	95mm
	Race Width	18mm
	Ball Bearing Type	Single Row Deep Groove Ball Bearing
	Sealing Arrangement	Open Type
	Bearing Clearance	CN
	Material	Steel
	Ball Material	Steel
	Cage Material	Sheet Steel
	Number of Rows	1
	Static Load Rating	23.2kN
	Dynamic Load Rating	31.5kN
	Bore Type	Parallel
	Clearance Code	CN
	Bearing Series	0 Extra Light
	Race Type	Plain
	Partial Bearing Code	6012

	Select all
	Brand FAG
	Inside Diameter 60mm
	Outside Diameter 95mm
	Race Width 18mm
	Ball Bearing Type Single Row Deep Groove Ball Bearing
	Sealing Arrangement Open Type
	Bearing Clearance CN
	Material Steel
	Ball Material Steel
	Cage Material Sheet Steel
	Number of Rows 1
	Static Load Rating 23.2kN
	Dynamic Load Rating 31.5kN
	Bore Type Parallel
	Clearance Code CN
	Bearing Series 0 Extra Light
	Race Type Plain
	Partial Bearing Code 6012

Datasheet - 6012

COO (Country of Origin):: KR

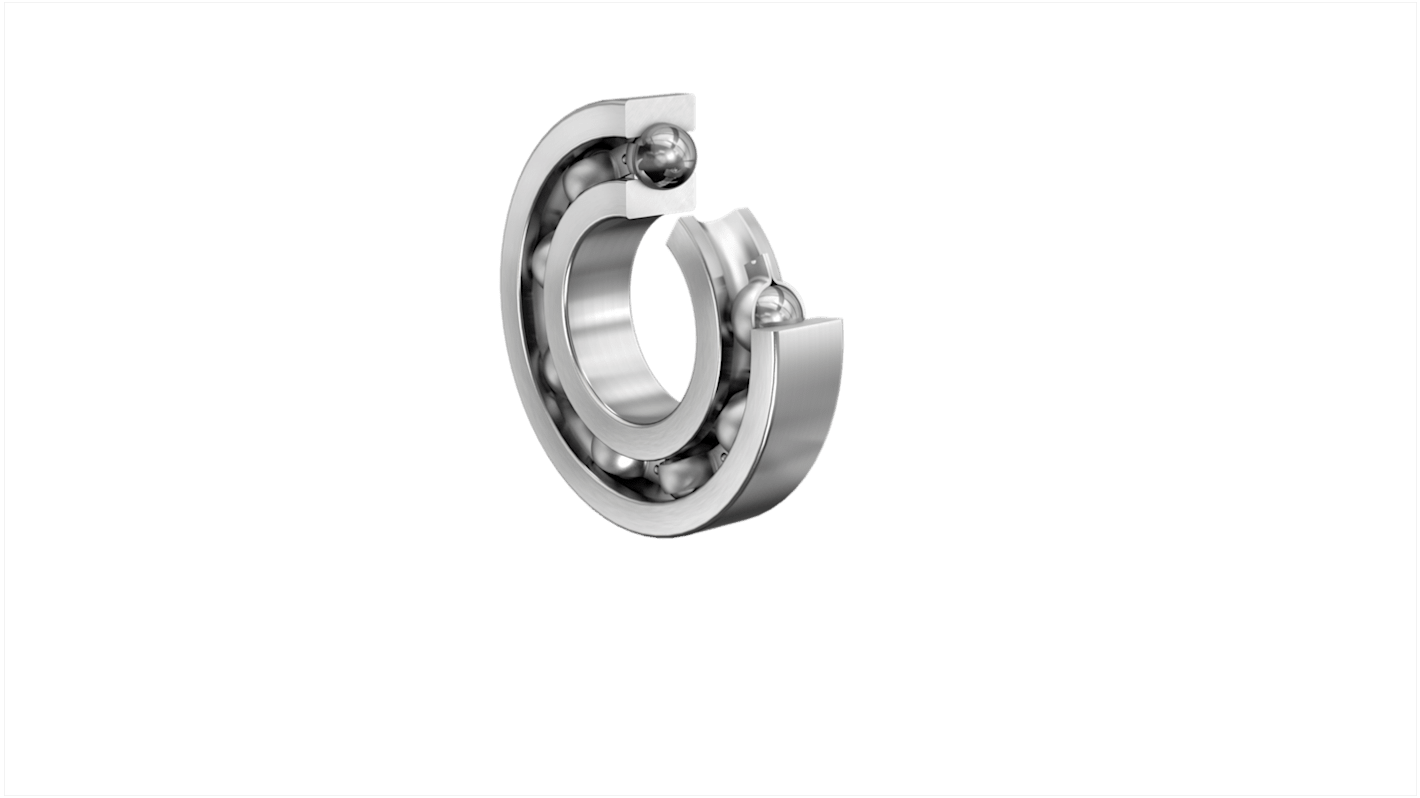

Schaeffler Deep Groove Ball Bearing, 60mm Inside Diameter, 95mm Outside Diameter - 6012

This deep groove ball bearing is designed for efficient performance in various mechanical applications. With a bore diameter of 60mm and an outside diameter of 95mm, it accommodates radial loads while ensuring durability. This single row deep groove ball bearing features an open type sealing arrangement and is constructed from high-quality steel for robust functionality.

Features & Benefits

• High dynamic load rating of 31.5 kN ensures reliability
• Static load rating of 23.2 kN provides exceptional performance
• Steel cage enhances strength and durability
• Open type design allows for easy lubrication access
• Cylindrical bore aids in smooth fitting on shafts
• Capable of operating at temperatures ranging from -30°C to 150°C

Applications

• Used in electric motor assemblies for smooth operation
• Can be used in machinery across the automation sector
• Ideal for requiring low-friction performance
• Suitable for power transmission systems in industrial settings
• Utilised in ventilation and air conditioning machinery

What limits can this bearing handle in terms of speed?

This bearing has a reference speed of 7,600r/min and a limiting speed of 10,100r/min, making it suitable for various rotating applications.

What is the fatigue load limit for this bearing?

The fatigue load limit is 1,230 N, indicating its reliability under repetitive loading conditions in practical use.

What factors should be considered during installation?

Ensure that the minimum diameter shaft shoulder is at least 66mm and the maximum diameter of the housing shoulder is 89mm to guarantee secure fitting.

FAG 6012 Single Row Deep Groove Ball Bearing- Open Type 60mm I.D, 95mm O.D
