Subtotal (1 unit)*
£56.78
(exc. VAT)
£68.14
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £56.78 |
*price indicative
- RS Stock No.:
- 260-0412
- Mfr. Part No.:
- 51117
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Inside Diameter | 85 mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 110 mm | |
| Race Width | 19mm | |
| Cage Material | Steel | |
| Ball Material | Steel | |
| End Type | Open | |
| Number of Rows | 1 | |
| Static Load Rating | 134kN | |
| Dynamic Load Rating | 45.5kN | |
| Series | 511 | |
| Bore Type | Parallel | |
| Standards/Approvals | No | |
| Limiting Speed | 4500rpm | |
| Bearing Type | Thrust Ball | |
| Race Type | Plain | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Inside Diameter 85 mm | ||
Product Type Ball Bearing | ||
Outside Diameter 110 mm | ||
Race Width 19mm | ||
Cage Material Steel | ||
Ball Material Steel | ||
End Type Open | ||
Number of Rows 1 | ||
Static Load Rating 134kN | ||
Dynamic Load Rating 45.5kN | ||
Series 511 | ||
Bore Type Parallel | ||
Standards/Approvals No | ||
Limiting Speed 4500rpm | ||
Bearing Type Thrust Ball | ||
Race Type Plain | ||

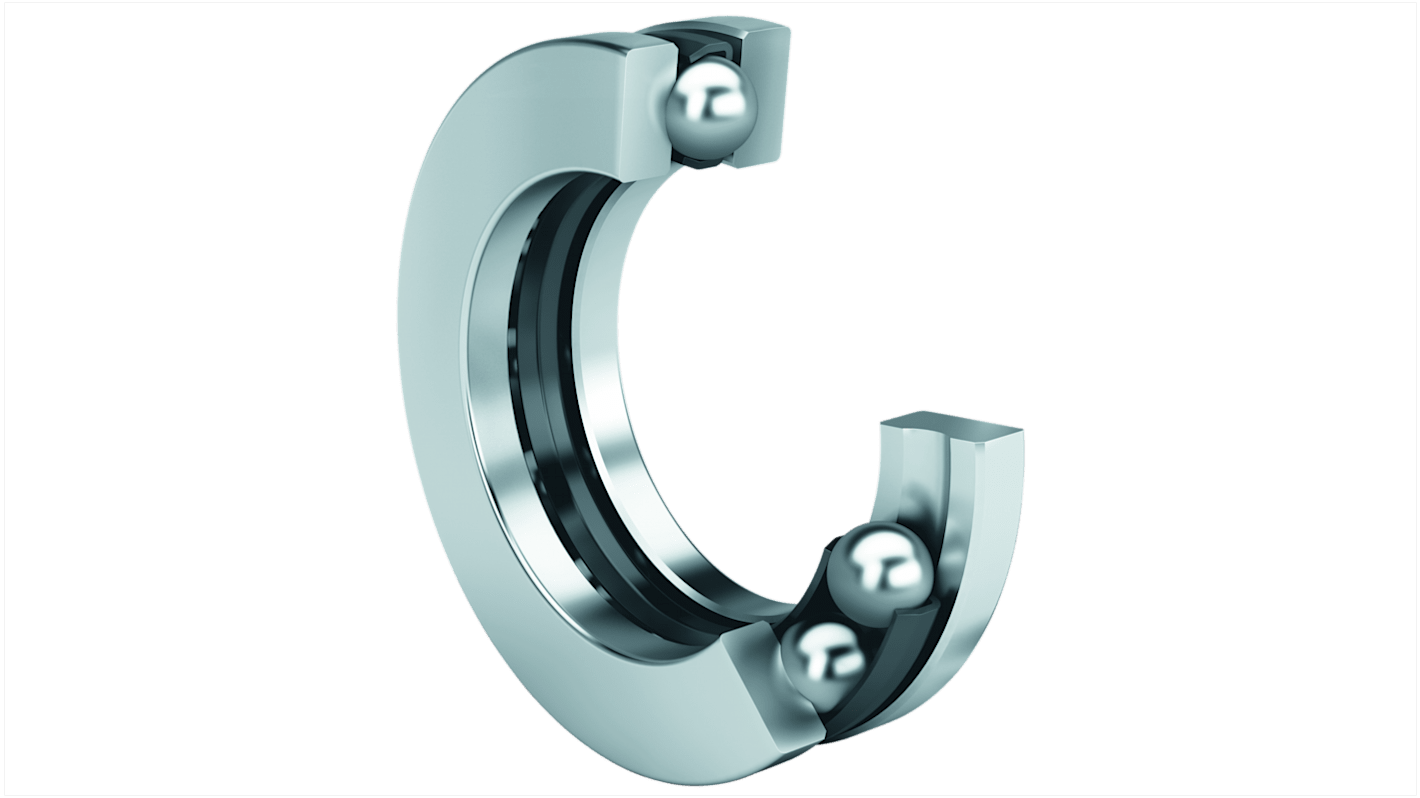

The FAG axial deep groove ball bearing has 85 mm inner diameter and 19 mm height with 0.11 minimum load factor.
Operating temperature -30 to 150 °C
