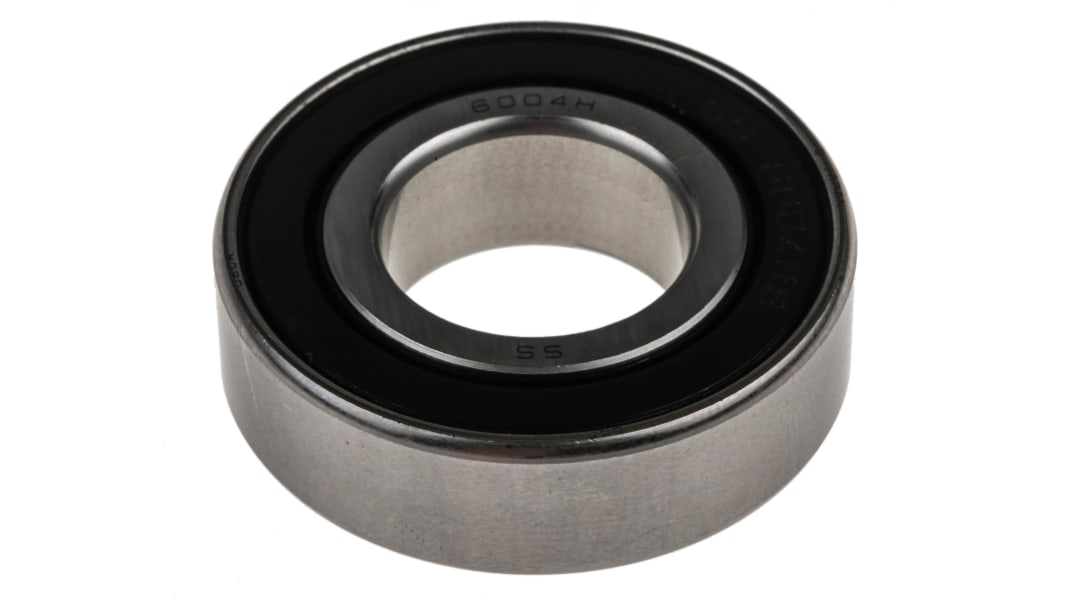

SKF W 6004-2RS1/W64 Single Row Deep Groove Ball Bearing- Both Sides Sealed 20mm I.D, 42mm O.D
- RS Stock No.:
- 233-7235
- Mfr. Part No.:
- W 6004-2RS1/W64
- Brand:
- SKF
Subtotal (1 unit)*
£106.75
(exc. VAT)
£128.10
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 31 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £106.75 |
*price indicative
- RS Stock No.:
- 233-7235
- Mfr. Part No.:
- W 6004-2RS1/W64
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 20mm | |
Outside Diameter | 42mm | |
Race Width | 12mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Both Sides Sealed | |
Bearing Clearance | CN | |
Material | Stainless Steel | |
Ball Material | Stainless Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 5kN | |
Dynamic Load Rating | 8.06kN | |
Bore Type | Parallel | |
Bearing Series | 0 Extra Light | |
Partial Bearing Code | 6004 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 20mm | ||
Outside Diameter 42mm | ||
Race Width 12mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Both Sides Sealed | ||
Bearing Clearance CN | ||
Material Stainless Steel | ||
Ball Material Stainless Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 5kN | ||
Dynamic Load Rating 8.06kN | ||
Bore Type Parallel | ||
Bearing Series 0 Extra Light | ||
Partial Bearing Code 6004 | ||
- COO (Country of Origin):
- SE
The SKF Deep groove ball bearing is particularly versatile. It has 20mm bore diameter and 42mm outside diameter. This is suitable for high and very high speeds, accommodate radial and axial loads in both directions and require little maintenance. Because deep groove ball bearings are the most widely used bearing type, they are available from skf in many designs, variants and sizes.
Single row design
Cylindrical bore type
Steel bearing
Cylindrical bore type
Steel bearing
