SKF W 6004-2RS1 Single Row Deep Groove Ball Bearing- Both Sides Sealed 20mm I.D, 42mm O.D
- RS Stock No.:
- 893-0205
- Mfr. Part No.:
- W 6004-2RS1
- Brand:
- SKF
Bulk discount available
Subtotal (1 unit)*
£35.21
(exc. VAT)
£42.25
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 26 unit(s) ready to ship from another location
- Plus 25 unit(s) shipping from 06 October 2025
- Plus 999,999,974 unit(s) shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £35.21 |
5 - 9 | £33.79 |
10 - 24 | £33.09 |
25 + | £32.39 |
*price indicative
- RS Stock No.:
- 893-0205
- Mfr. Part No.:
- W 6004-2RS1
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 20mm | |
Outside Diameter | 42mm | |
Race Width | 12mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Both Sides Sealed | |
Bearing Clearance | CN | |
Material | Stainless Steel | |
Ball Material | Stainless Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 5kN | |
Dynamic Load Rating | 8.06kN | |
Bore Type | Parallel | |
Bearing Series | 0 Extra Light | |
Race Material | Stainless Steel | |
Partial Bearing Code | 6004 | |
Race Type | Plain | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 20mm | ||
Outside Diameter 42mm | ||
Race Width 12mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Both Sides Sealed | ||
Bearing Clearance CN | ||
Material Stainless Steel | ||
Ball Material Stainless Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 5kN | ||
Dynamic Load Rating 8.06kN | ||
Bore Type Parallel | ||
Bearing Series 0 Extra Light | ||
Race Material Stainless Steel | ||
Partial Bearing Code 6004 | ||
Race Type Plain | ||
RoHS Status: Exempt
- COO (Country of Origin):
- JP

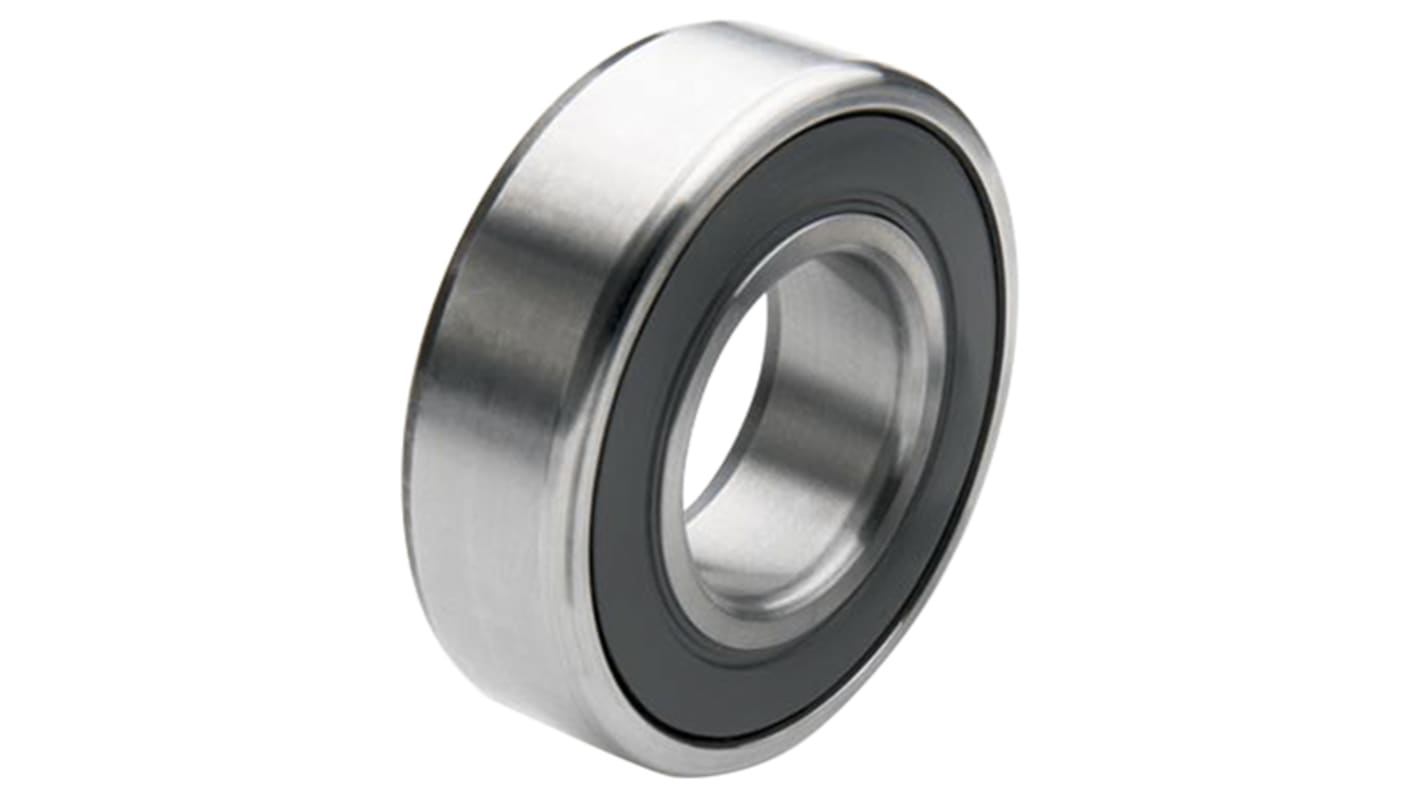

SKF Deep-groove Ball Bearing, Plain Race Type, 20 mm ID - W6004-2RS1
This deep-groove ball bearing from SKF is designed to accommodate radial and axial loads in both directions. The depth of its groove helps to stabilise the balls, allowing them to handle higher loads while reducing friction. It's a very reliable bearing that will last a long time. Made from strong and durable stainless steel, it includes two metal side shields that keep out dust, liquids and other contaminants. The bearing is pre-lubricated and doesn't need any further greasing, which helps to reduce your maintenance time.
• Made from stainless steel
• Parallel bore
• Sealed end type
• Single row
• Plain race
• Race width of 12 mm
• Outside diameter of 42 mm
• Inside diameter of 20 mm
• Static load rating of 5 kN
• Dynamic load rating of 8.06 kN
• Parallel bore
• Sealed end type
• Single row
• Plain race
• Race width of 12 mm
• Outside diameter of 42 mm
• Inside diameter of 20 mm
• Static load rating of 5 kN
• Dynamic load rating of 8.06 kN
Application Information
• Food and beverage industry
• Offshore and marine settings
• Chemical and pharmaceutical plants
• Offshore and marine settings
• Chemical and pharmaceutical plants
How is this bearing lubricated?
The bearing is filled with H1 NSF-certified food-grade grease, which limits moisture and prevents bacterial growth. This makes the product ideal for food-based environments.
What kind of steel is the product made from?
The bearing is made from stainless steel with a high chromium content, which makes it particularly hard and resistant to abrasion.
