SKF 3217 A/C3 2 Row Ball Bearing - 85 mm ID, 150 mm OD 49.2 mm Race Width
- RS Stock No.:
- 207-9905
- Mfr. Part No.:
- 3217 A/C3
- Brand:
- SKF
Subtotal (1 unit)*
£414.47
(exc. VAT)
£497.36
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £414.47 |
*price indicative
- RS Stock No.:
- 207-9905
- Mfr. Part No.:
- 3217 A/C3
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Ball Bearing | |
| Inside Diameter | 85 mm | |
| Outside Diameter | 150 mm | |
| Race Width | 49.2mm | |
| Ball Material | Steel | |
| Cage Material | Sheet Metal | |
| End Type | Open | |
| Number of Rows | 2 | |
| Internal Clearance | C3 | |
| Contact Angle | 30° | |
| Static Load Rating | 110kN | |
| Dynamic Load Rating | 124kN | |
| Standards/Approvals | No | |
| Bore Type | Parallel | |
| Limiting Speed | 3800rpm | |
| Bearing Type | Double Row Angular Contact Ball | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Ball Bearing | ||
Inside Diameter 85 mm | ||
Outside Diameter 150 mm | ||
Race Width 49.2mm | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
End Type Open | ||
Number of Rows 2 | ||
Internal Clearance C3 | ||
Contact Angle 30° | ||
Static Load Rating 110kN | ||
Dynamic Load Rating 124kN | ||
Standards/Approvals No | ||
Bore Type Parallel | ||
Limiting Speed 3800rpm | ||
Bearing Type Double Row Angular Contact Ball | ||
- COO (Country of Origin):
- DE

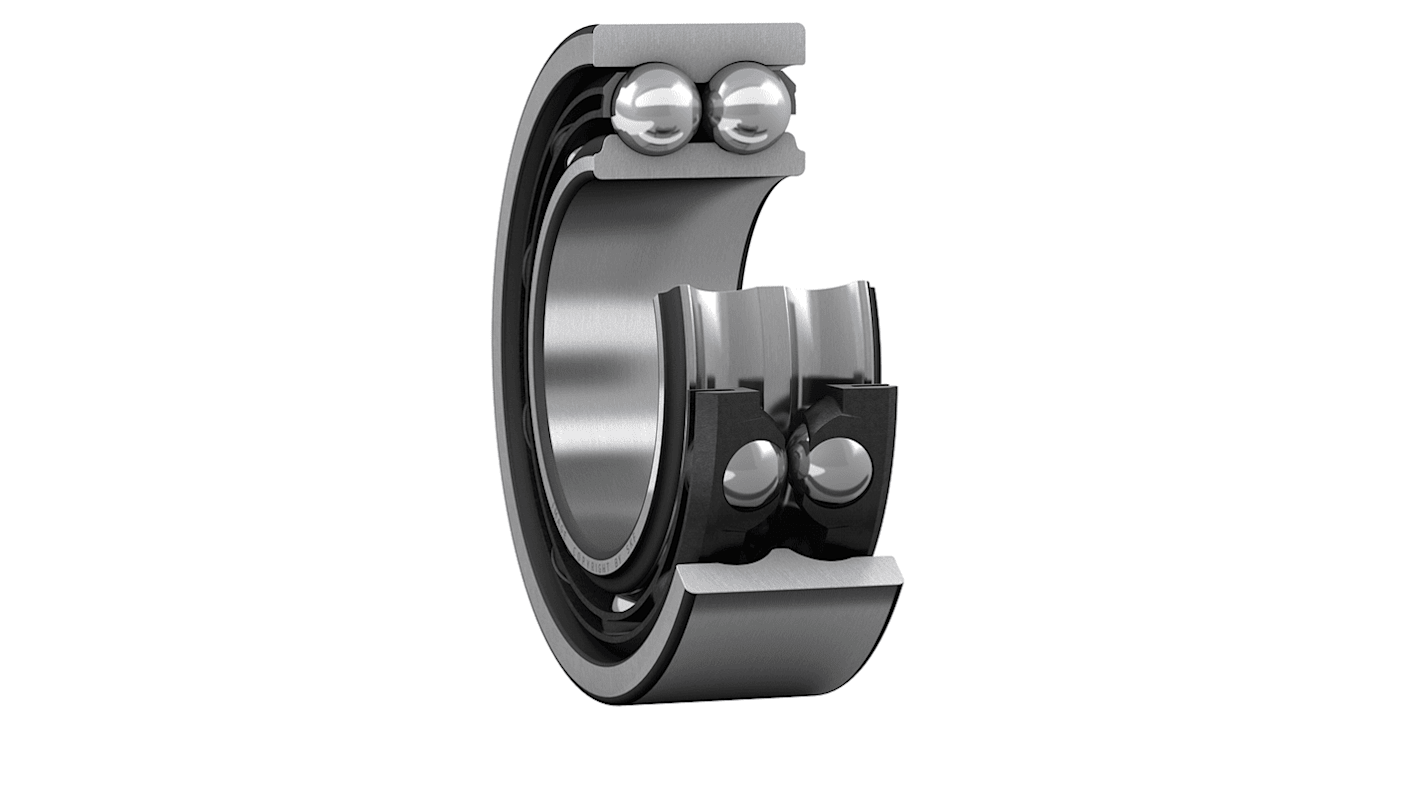

The SKF angular contact ball bearings with bore diameter 85mm and outside diameter 150mm having inner and outer ring raceways which is displaced relative to each other in the direction of the bearing axis this means that these bearings are designed to accommodate combined loads and simultaneously acts radial and axial loads. The axial load carrying capacity of angular contact ball bearings increases as the contact angle increases. The contact angle is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane along which the combined load is transmitted from one raceway to another and a line perpendicular to the bearing axis.
Cylindrical type bore
Steel bearing
