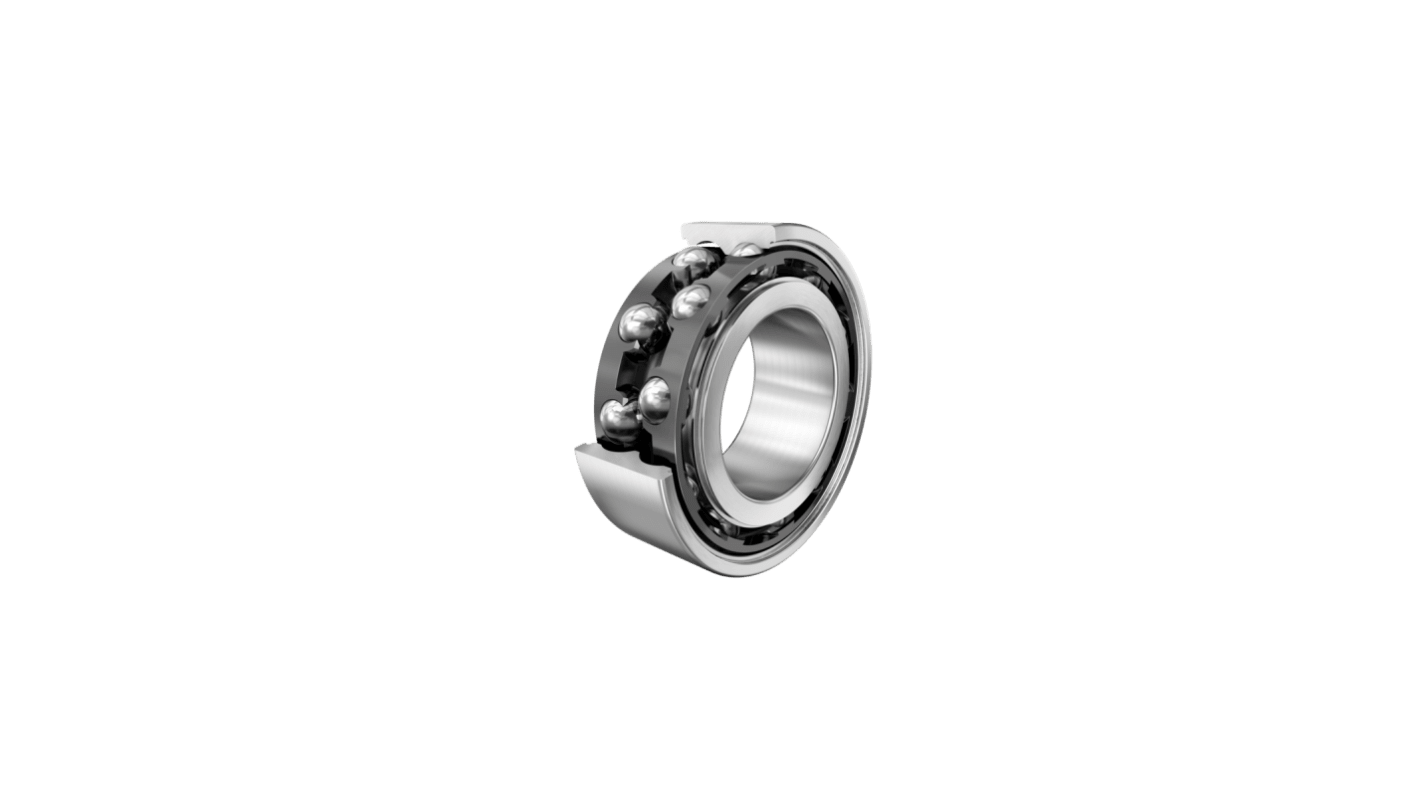

FAG 3311-BD-XL-TVH-C3 2 Row Angular Contact Ball Bearing - 55 mm ID, 120 mm OD 49.2 mm Race Width
- RS Stock No.:
- 310-190
- Mfr. Part No.:
- 3311-BD-XL-TVH-C3
- Brand:
- FAG
Subtotal (1 unit)*
£208.51
(exc. VAT)
£250.21
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £208.51 |
*price indicative
- RS Stock No.:
- 310-190
- Mfr. Part No.:
- 3311-BD-XL-TVH-C3
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Inside Diameter | 55 mm | |
| Product Type | Angular Contact Ball Bearing | |
| Outside Diameter | 120 mm | |
| Race Width | 49.2mm | |
| Cage Material | Fibreglass Reinforced Polyamide | |
| End Type | Unsealed | |
| Number of Rows | 2 | |
| Contact Angle | 30° | |
| Internal Clearance | CN | |
| Static Load Rating | 88000N | |
| Dynamic Load Rating | 116000N | |
| Series | 33-BD-XL-TVH | |
| Standards/Approvals | RoHS | |
| Limiting Speed | 5800rpm | |
| Flange Outside Diameter | 120mm | |
| Bearing Type | Angular Contact | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Inside Diameter 55 mm | ||
Product Type Angular Contact Ball Bearing | ||
Outside Diameter 120 mm | ||
Race Width 49.2mm | ||
Cage Material Fibreglass Reinforced Polyamide | ||
End Type Unsealed | ||
Number of Rows 2 | ||
Contact Angle 30° | ||
Internal Clearance CN | ||
Static Load Rating 88000N | ||
Dynamic Load Rating 116000N | ||
Series 33-BD-XL-TVH | ||
Standards/Approvals RoHS | ||
Limiting Speed 5800rpm | ||
Flange Outside Diameter 120mm | ||
Bearing Type Angular Contact | ||
- COO (Country of Origin):
- SK
The FAG Angular Contact Ball Bearing features a double row design with advanced X life technology, promoting enhanced performance and longevity. Encased in a robust plastic cage, it demonstrates outstanding stability and minimal friction even under extreme load conditions. Designed without a filling slot, it is fully sealed to prevent contamination, ensuring consistent operation over its service life.
Plastic cage provides exceptional resilience and reduced friction
Operating temperature range accommodates a variety of environments
Robust construction ensures longevity and reliability
Sealed design protects against contamination
Enhanced dynamic load ratings support high speed applications
