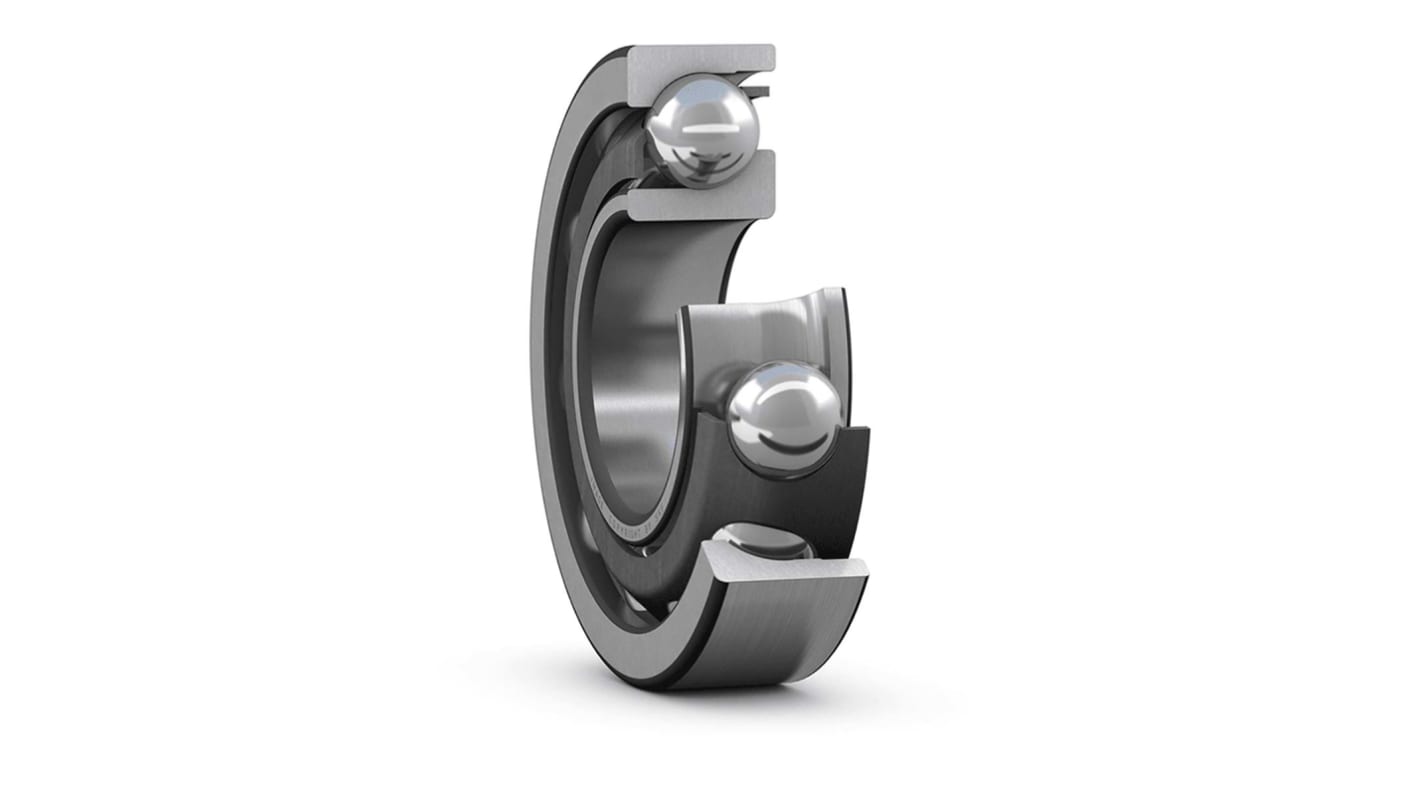

SKF 7217 BECBJ 1 Row Ball Bearing - 85 mm ID, 150 mm OD 28 mm Race Width

View all Ball Bearings

Subtotal (1 unit)*

£346.88

(exc. VAT)

£416.26

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 16 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£346.88

*price indicative

Sponsored
Image of box of various metal tools to work with bearings, all grey metal
SKF logo in blue reading SKF
SKF Hydraulic Bearing Puller, 17 Piece Kit
Effortlessly remove tight-fitted bearings with SKF's 17-piece bearing puller kit. Equipped with a hydraulic spindle and adaptable assembly stand, it's perfect for heavy-duty industrial applications.
Shop now
RS Stock No.:
207-5481
Mfr. Part No.:
7217 BECBJ
Brand:
SKF
Find similar products by selecting one or more attributes.
Select all

Brand

SKF

Inside Diameter

85 mm

Product Type

Ball Bearing

Outside Diameter

150 mm

Race Width

28mm

Cage Material

Steel

Ball Material

Steel

End Type

Open

Number of Rows

1

Static Load Rating

90kN

Dynamic Load Rating

102kN

Series

SKF Explorer

Bore Type

Parallel

Standards/Approvals

No

Limiting Speed

5300rpm

Bearing Type

Single Row Angular Contact Ball

COO (Country of Origin):
DE
The SKF Angular contact ball bearing has 85mm inner bore and 150mm outer ring raceways that are displaced relative to each other in the direction of the bearing axis. This bearing is designed to accommodate combined loads, i.e. Simultaneously acting radial and axial loads.

The axial load carrying capacity of angular contact ball bearings increases as the contact angle increases. The contact angle is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the combined load is transmitted from one raceway to another, and a line perpendicular to the bearing axis.

Single row

Cylindrical type bore

Steel bearing

Nominal contact angle 40 deg
