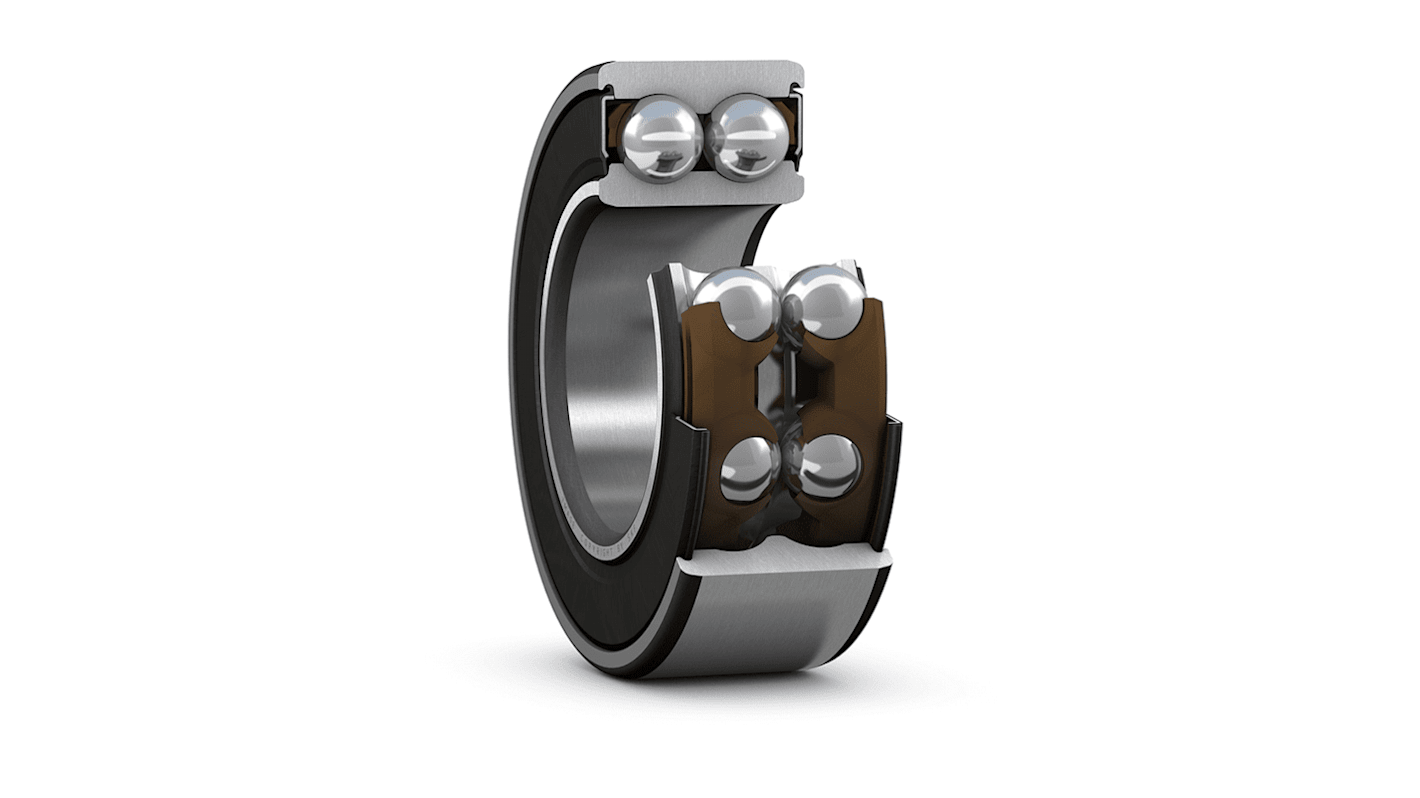

SKF 3214 A-2Z/MT33 2 Row Ball Bearing - 70 mm ID, 125 mm OD 39.7 mm Race Width
- RS Stock No.:
- 207-9899
- Mfr. Part No.:
- 3214 A-2Z/MT33
- Brand:
- SKF
Subtotal (1 unit)*
£313.21
(exc. VAT)
£375.85
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £313.21 |
*price indicative
- RS Stock No.:
- 207-9899
- Mfr. Part No.:
- 3214 A-2Z/MT33
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Ball Bearing | |
| Inside Diameter | 70 mm | |
| Outside Diameter | 125 mm | |
| Race Width | 39.7mm | |
| Cage Material | Non-Metallic | |
| Ball Material | Steel | |
| End Type | Shielded | |
| Number of Rows | 2 | |
| Static Load Rating | 88.4kN | |
| Contact Angle | 30° | |
| Internal Clearance | C3 | |
| Dynamic Load Rating | 80kN | |
| Bore Type | Parallel | |
| Standards/Approvals | No | |
| Limiting Speed | 4500rpm | |
| Bearing Type | Double Row Angular Contact Ball | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Ball Bearing | ||
Inside Diameter 70 mm | ||
Outside Diameter 125 mm | ||
Race Width 39.7mm | ||
Cage Material Non-Metallic | ||
Ball Material Steel | ||
End Type Shielded | ||
Number of Rows 2 | ||
Static Load Rating 88.4kN | ||
Contact Angle 30° | ||
Internal Clearance C3 | ||
Dynamic Load Rating 80kN | ||
Bore Type Parallel | ||
Standards/Approvals No | ||
Limiting Speed 4500rpm | ||
Bearing Type Double Row Angular Contact Ball | ||
- COO (Country of Origin):
- DE
The SKF angular contact ball bearings with bore diameter 70mm and outside diameter 125mm having inner and outer ring raceways which is displaced relative to each other in the direction of the bearing axis this means that these bearings are designed to accommodate combined loads and simultaneously acts radial and axial loads. The axial load carrying capacity of angular contact ball bearings increases as the contact angle increases. The contact angle is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane along which the combined load is transmitted from one raceway to another and a line perpendicular to the bearing axis.
Cylindrical type bore
Steel bearing
