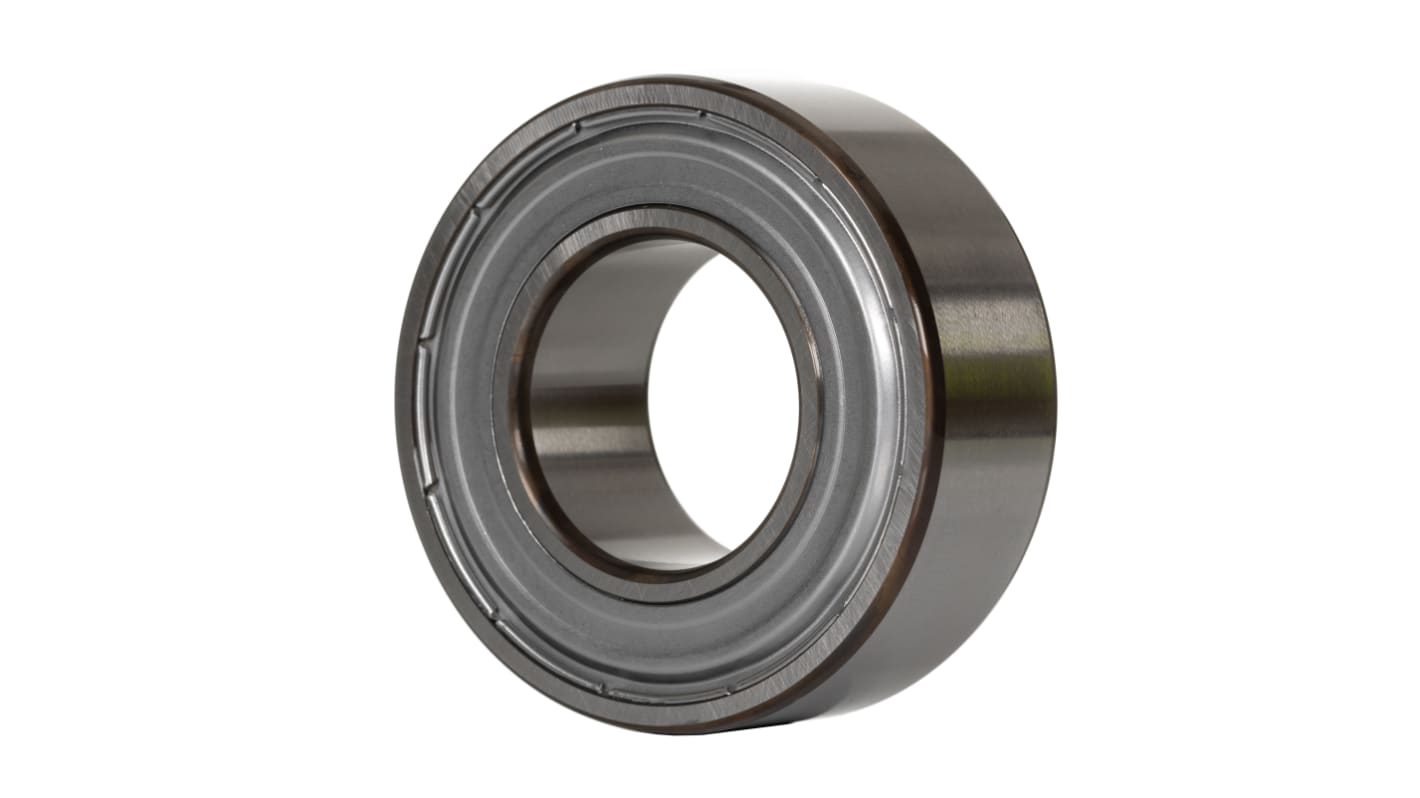

SKF 3202 A-2ZTN9/MT33 Double Row Angular Contact Ball Bearing- Both Sides Shielded 15mm I.D, 35mm O.D
- RS Stock No.:
- 207-9844
- Mfr. Part No.:
- 3202 A-2ZTN9/MT33
- Brand:
- SKF
Subtotal (1 unit)*
£44.66
(exc. VAT)
£53.59
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
- Plus 6 unit(s) ready to ship from another location
- Plus 999,999,997 unit(s) shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £44.66 |
*price indicative
- RS Stock No.:
- 207-9844
- Mfr. Part No.:
- 3202 A-2ZTN9/MT33
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 15mm | |
Outside Diameter | 35mm | |
Race Width | 15.9mm | |
Ball Bearing Type | Double Row Angular Contact Ball Bearing | |
Sealing Arrangement | Both Sides Shielded | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Non-metallic | |
Number of Rows | 2 | |
Static Load Rating | 6.8kN | |
Dynamic Load Rating | 11.2kN | |
Bore Type | Parallel | |
Bearing Series | 2 Light | |
Partial Bearing Code | 3202 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 15mm | ||
Outside Diameter 35mm | ||
Race Width 15.9mm | ||
Ball Bearing Type Double Row Angular Contact Ball Bearing | ||
Sealing Arrangement Both Sides Shielded | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Non-metallic | ||
Number of Rows 2 | ||
Static Load Rating 6.8kN | ||
Dynamic Load Rating 11.2kN | ||
Bore Type Parallel | ||
Bearing Series 2 Light | ||
Partial Bearing Code 3202 | ||
- COO (Country of Origin):
- BG
SKF Ball Bearing, 35mm Outside Diameter, 11.2 kN Dynamic Load Rating - 3202 A-2ZTN9/MT33
This ball bearing features a double row angular contact design that optimises load distribution and minimises friction, making it suitable for applications demanding high load capacities and durability. It enhances the operational efficiency of machinery across the automation, electronics, and mechanical sectors.
Features & Benefits
• Double row angular contact design improves load handling capabilities
• Shielded on both sides to guard against contamination
• Constructed from steel for enhanced strength and longevity
• Non-metallic cage allows for effective separation of the balls
• Capable of withstanding dynamic loads of up to 11.2 kN
• Designed to fit standard parallel bore types
• Shielded on both sides to guard against contamination
• Constructed from steel for enhanced strength and longevity
• Non-metallic cage allows for effective separation of the balls
• Capable of withstanding dynamic loads of up to 11.2 kN
• Designed to fit standard parallel bore types
Applications
• Suitable for precision machinery applications
• Ideal for high-speed rotating equipment
• Applicable in the automotive and industrial sectors
• Commonly utilised in conveyors and material handling equipment
• Ideal for high-speed rotating equipment
• Applicable in the automotive and industrial sectors
• Commonly utilised in conveyors and material handling equipment
What is the maintenance procedure for this bearing?
Regular cleaning and lubrication are recommended to maintain performance and extend longevity.
Can it withstand exposure to harsh environments?
The shielding offers protection against dust and moisture, making it suitable for various operating conditions.
How can I determine if this bearing is the right choice for my application?
Evaluate the load requirements and environmental conditions, as this product is designed for high loads and durability.
What tools are needed for installation?
Basic tools such as bearing pullers and appropriate wrenches are sufficient for proper installation.
