SKF 3202 ATN9/C3 Double Row Angular Contact Ball Bearing- Open Type 15mm I.D, 35mm O.D
- RS Stock No.:
- 207-9845
- Mfr. Part No.:
- 3202 ATN9/C3
- Brand:
- SKF
Subtotal (1 unit)*
£38.10
(exc. VAT)
£45.72
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 16 unit(s) ready to ship
- Plus 999,999,983 unit(s) shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £38.10 |
*price indicative
- RS Stock No.:
- 207-9845
- Mfr. Part No.:
- 3202 ATN9/C3
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 15mm | |
Outside Diameter | 35mm | |
Race Width | 15.9mm | |
Ball Bearing Type | Double Row Angular Contact Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | C3 | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Non-metallic | |
Number of Rows | 2 | |
Static Load Rating | 6.8kN | |
Dynamic Load Rating | 11.2kN | |
Bore Type | Parallel | |
Clearance Code | C3 | |
Bearing Series | 2 Light | |
Model Number p | 3202 | |
Partial Bearing Code | 3202 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 15mm | ||
Outside Diameter 35mm | ||
Race Width 15.9mm | ||
Ball Bearing Type Double Row Angular Contact Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance C3 | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Non-metallic | ||
Number of Rows 2 | ||
Static Load Rating 6.8kN | ||
Dynamic Load Rating 11.2kN | ||
Bore Type Parallel | ||
Clearance Code C3 | ||
Bearing Series 2 Light | ||
Model Number p 3202 | ||
Partial Bearing Code 3202 | ||
- COO (Country of Origin):
- BG

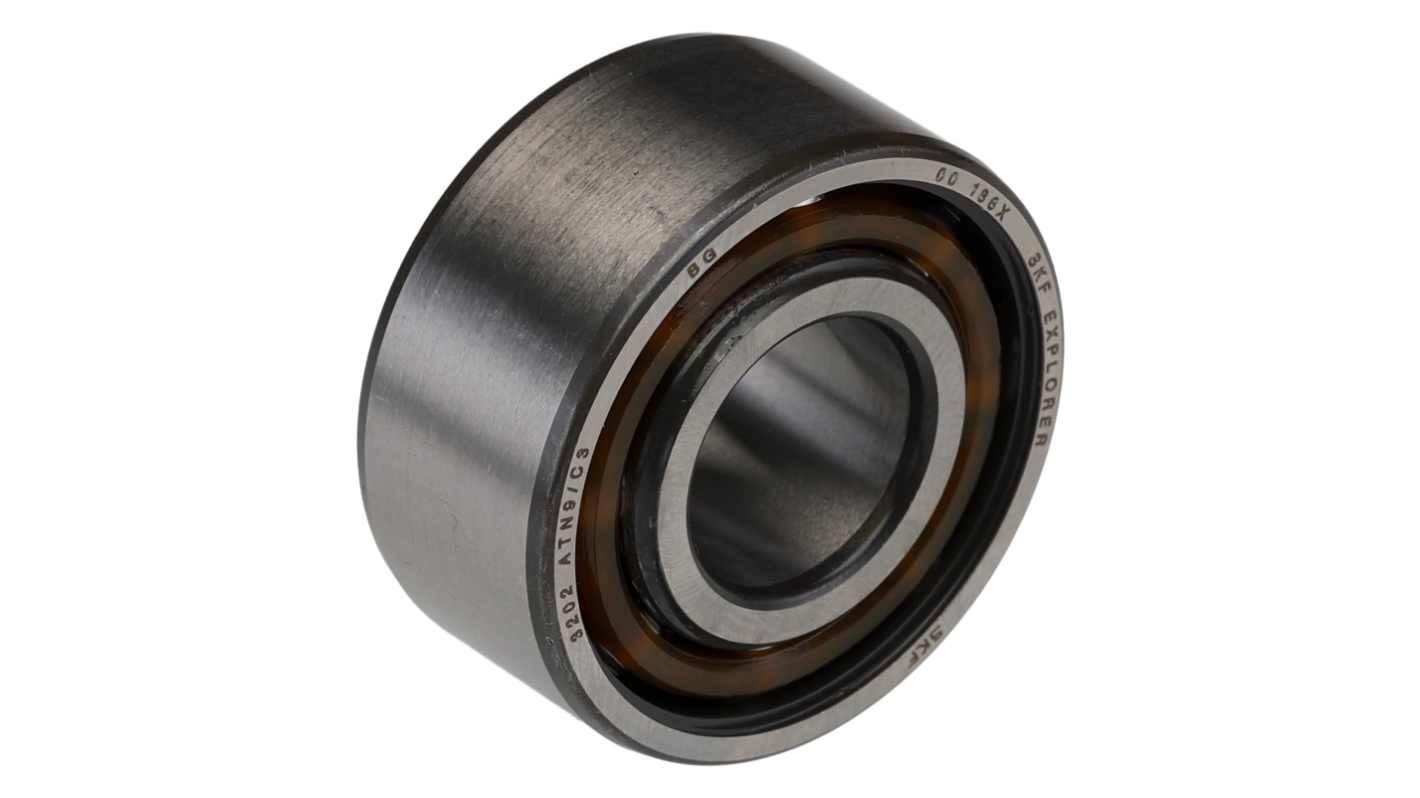

SKF Ball Bearing, 15mm Inside Diameter, 35mm Outside Diameter - 3202 ATN9/C3
This ball bearing is engineered to meet demanding mechanical applications, featuring a double row angular contact design. The SKF 3202 ATN9/C3 ball bearing offers precise dimensions with an inside diameter of 15mm and an outside diameter of 35mm, ensuring it performs reliably under significant load. The open type sealing arrangement allows for easy lubrication and maintenance, making it suitable for various high-performance applications.
Features & Benefits
• High load capacity with a dynamic load rating of 11.2 kN
• C3 clearance enables improved operational efficiency
• Non-metallic cage reduces friction and enhances durability
• Dual-row configuration supports axial and radial loads
• Open type design simplifies lubrication processes
• Manufactured from robust steel for long-lasting performance
• C3 clearance enables improved operational efficiency
• Non-metallic cage reduces friction and enhances durability
• Dual-row configuration supports axial and radial loads
• Open type design simplifies lubrication processes
• Manufactured from robust steel for long-lasting performance
Applications
• Utilised in precision machinery for improved performance
• Suitable for high-speed where load varies
• Often used in automation equipment requiring reliable operation
• Ideal for electrical systems demanding resilient components
• Suitable for high-speed where load varies
• Often used in automation equipment requiring reliable operation
• Ideal for electrical systems demanding resilient components
What is the significance of the C3 clearance in this bearing?
C3 clearance provides additional space for thermal expansion during operation, allowing for smoother movement and reducing wear, which is crucial for high-load applications.
How does the non-metallic cage contribute to performance?
The non-metallic cage minimises friction between the rolling elements, enhancing the overall operational efficiency and extending the bearing's lifespan by reducing heat generation.
What is the reference speed of this bearing?
The reference speed of this bearing is 22,000 r/min, making it suitable for high-speed applications while maintaining stability and performance under load.
What type of lubrication is recommended for optimal performance?
For optimal performance, the use of high-quality grease compatible with steel materials is recommended, ensuring lubrication effectiveness and reducing maintenance intervals.
