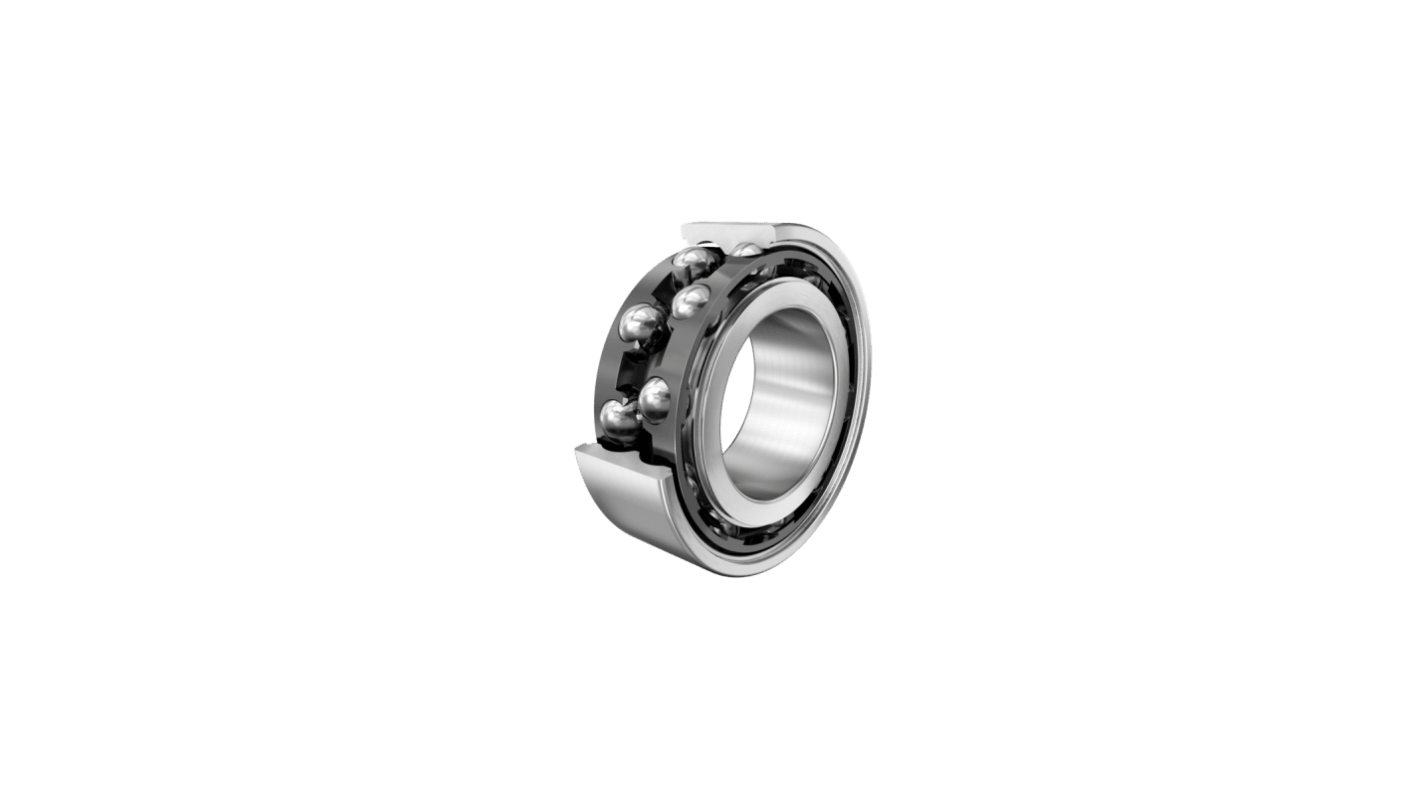

FAG 3202-BD-XL-TVH-L285 2 Row Ball Bearing - 15 mm ID, 35 mm OD 15.9 mm Race Width
- RS Stock No.:
- 312-624
- Mfr. Part No.:
- 3202-BD-XL-TVH-L285
- Brand:
- FAG
Subtotal (1 pack of 50 units)*
£1,893.71
(exc. VAT)
£2,272.45
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 11 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £1,893.71 | £37.874 |
*price indicative
- RS Stock No.:
- 312-624
- Mfr. Part No.:
- 3202-BD-XL-TVH-L285
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Product Type | Ball Bearing | |
| Inside Diameter | 15mm | |
| Outside Diameter | 35mm | |
| Race Width | 15.9mm | |
| Cage Material | Fibreglass Reinforced Polyamide | |
| End Type | Unsealed | |
| Number of Rows | 2 | |
| Internal Clearance | N | |
| Contact Angle | 30° | |
| Static Load Rating | 7400N | |
| Dynamic Load Rating | 12600N | |
| Series | 32-BD-XL-TVH | |
| Standards/Approvals | RoHS | |
| Limiting Speed | 16700rpm | |
| Bearing Type | Angular Contact | |
| Flange Outside Diameter | 35mm | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Product Type Ball Bearing | ||
Inside Diameter 15mm | ||
Outside Diameter 35mm | ||
Race Width 15.9mm | ||
Cage Material Fibreglass Reinforced Polyamide | ||
End Type Unsealed | ||
Number of Rows 2 | ||
Internal Clearance N | ||
Contact Angle 30° | ||
Static Load Rating 7400N | ||
Dynamic Load Rating 12600N | ||
Series 32-BD-XL-TVH | ||
Standards/Approvals RoHS | ||
Limiting Speed 16700rpm | ||
Bearing Type Angular Contact | ||
Flange Outside Diameter 35mm | ||
- COO (Country of Origin):
- SK
The FAG Angular Contact Ball Bearing is an engineering marvel designed for exceptional load bearing capabilities. Equipped with a double row configuration and a robust plastic cage, this bearing ensures durability under demanding conditions. Its advanced design incorporates X life technology, offering superior performance and reliability. With high precision manufacturing, it meets the stringent P6 tolerance class, surpassing standard performance criteria. This product is particularly suited for applications that require high radial and axial loads, delivering outstanding results in various industrial environments.
Designed with advanced X life technology for enhanced durability
Double row configuration allows for high load capacities
Excellent radial and axial load ability makes it a robust choice for heavy duty applications
Suitable grease lubrication ensures minimal maintenance and long service life
High precision in manufacturing meets the stringent requirements of P6 tolerance class
