SKF 2219 KM/P63 Self Aligning Ball Bearing- Open Type 95mm I.D, 170mm O.D

View all Ball Bearings

Subtotal (1 unit)*

£772.37

(exc. VAT)

£926.84

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£772.37

*price indicative

Sponsored
Image of box of various metal tools to work with bearings, all grey metal
SKF logo in blue reading SKF
SKF Hydraulic Bearing Puller, 17 Piece Kit
Effortlessly remove tight-fitted bearings with SKF's 17-piece bearing puller kit. Equipped with a hydraulic spindle and adaptable assembly stand, it's perfect for heavy-duty industrial applications.
Shop now
RS Stock No.:
207-9774
Mfr. Part No.:
2219 KM/P63
Brand:
SKF
Find similar products by selecting one or more attributes.
Select all

Brand

SKF

Inside Diameter

95mm

Outside Diameter

170mm

Race Width

43mm

Ball Bearing Type

Self Aligning Ball Bearing

Sealing Arrangement

Open Type

Bearing Clearance

C3

Material

Steel

Ball Material

Steel

Cage Material

Machined Metal

Number of Rows

2

Static Load Rating

34.5kN

Dynamic Load Rating

83.2kN

Bore Type

Tapered

Bearing Series

2 Light

Partial Bearing Code

2219

COO (Country of Origin):
MY

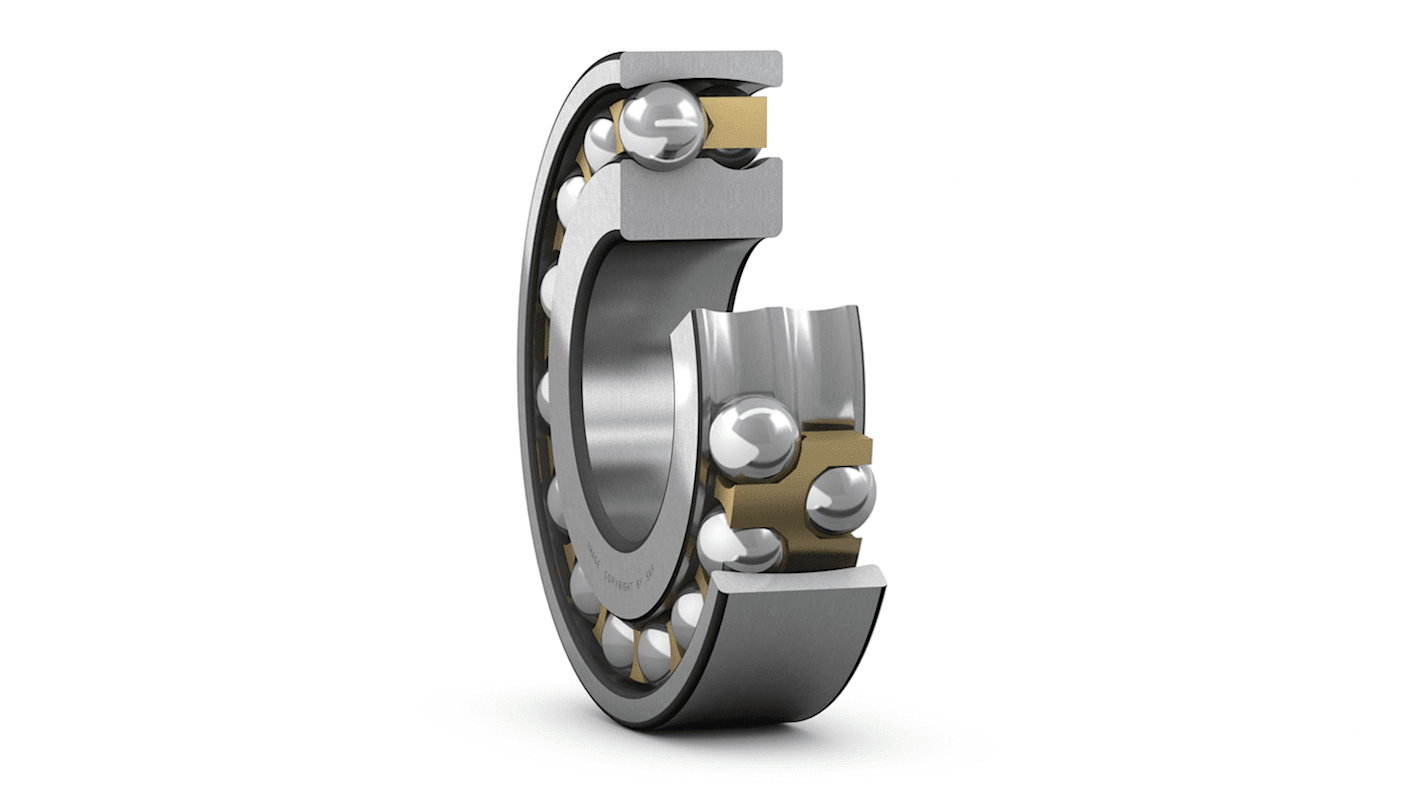

The SKF self-aligning ball bearings with two rows of balls having bore diameter 95mm and outside diameter 170mm. It has a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. The bearings are insensitive to angular misalignment of the shaft relative to the housing which can be caused by shaft deflection.

Tapered type bore
Steel bearing
