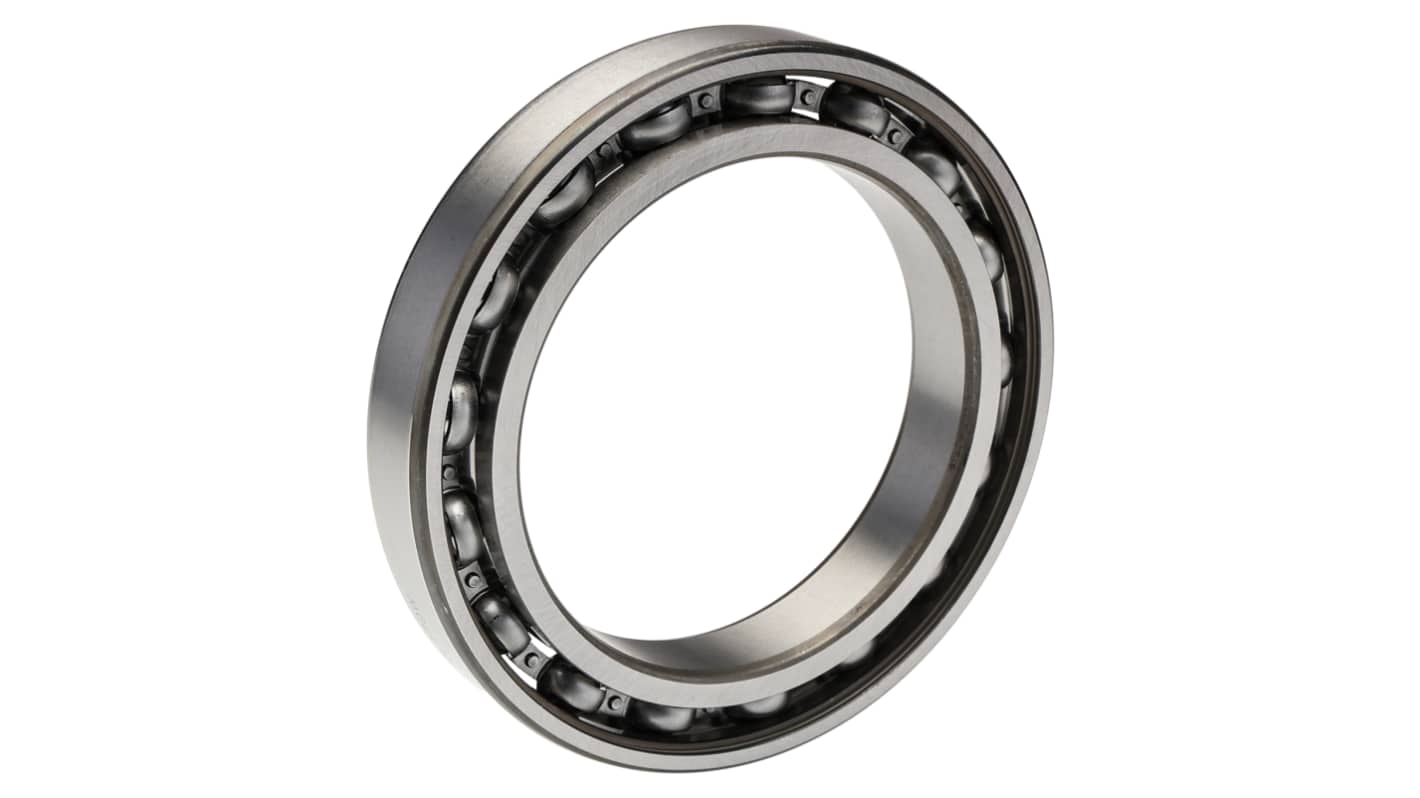

SKF 61914 Single Row Deep Groove Ball Bearing- Open Type 70mm I.D, 100mm O.D
- RS Stock No.:
- 207-7060
- Mfr. Part No.:
- 61914
- Brand:
- SKF
Subtotal (1 unit)*
£107.55
(exc. VAT)
£129.06
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £107.55 |
*price indicative
- RS Stock No.:
- 207-7060
- Mfr. Part No.:
- 61914
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 70mm | |
Outside Diameter | 100mm | |
Race Width | 16mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 18.3kN | |
Dynamic Load Rating | 23.8kN | |
Bore Type | Parallel | |
Clearance Code | CN | |
Bearing Series | 1 Extra Light Thrust | |
Model Number p | 61914 | |
Partial Bearing Code | 61914 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 70mm | ||
Outside Diameter 100mm | ||
Race Width 16mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 18.3kN | ||
Dynamic Load Rating 23.8kN | ||
Bore Type Parallel | ||
Clearance Code CN | ||
Bearing Series 1 Extra Light Thrust | ||
Model Number p 61914 | ||
Partial Bearing Code 61914 | ||
- COO (Country of Origin):
- FR
SKF Deep Groove Ball Bearing, 70mm Inside Diameter, 100mm Outside Diameter - 61914
This deep groove ball bearing is designed for optimal performance in various applications. It features an inside diameter of 70mm and an outside diameter of 100mm. Constructed from robust steel, this single row deep groove bearing is built to accommodate high loads and ensure smooth operation in demanding environments.
Features & Benefits
• Open type design allows for effective lubrication maintenance
• Robust steel construction enhances durability and load capacity
• Designed for cylindrical bore applications ensuring stable alignment
• Suitable for temperature variations and high-speed operations
• Robust steel construction enhances durability and load capacity
• Designed for cylindrical bore applications ensuring stable alignment
• Suitable for temperature variations and high-speed operations
Applications
• Used in automation systems requiring high load capacity
• Ideal for electrical machinery with rotational components
• Utilised in mechanical systems for dependable performance
• Appropriate for various industrial installations demanding precision
• Can be found in electronic devices needing smooth motion
• Ideal for electrical machinery with rotational components
• Utilised in mechanical systems for dependable performance
• Appropriate for various industrial installations demanding precision
• Can be found in electronic devices needing smooth motion
What are the load ratings and their significance for performance?
The static load rating of 18.3 kN indicates the maximum load the bearing can withstand when not in motion, while the dynamic load rating of 23.8 kN signifies the maximum load during operation. These ratings ensure the bearing performs effectively under various stress conditions.
How should lubrication be managed for optimal lifespan?
Because this bearing features an open type design, regular lubrication is recommended to prevent wear and overheating. The appropriate lubricant will enhance operational efficiency and prolong the bearing's service life.
What factors influence the choice of bearing clearance in this product?
The CN clearance code denotes a normal clearance which accommodates slight misalignments and thermal expansions. Selecting the proper clearance is vital for ensuring optimal performance, minimising friction, and prolonging service life.
