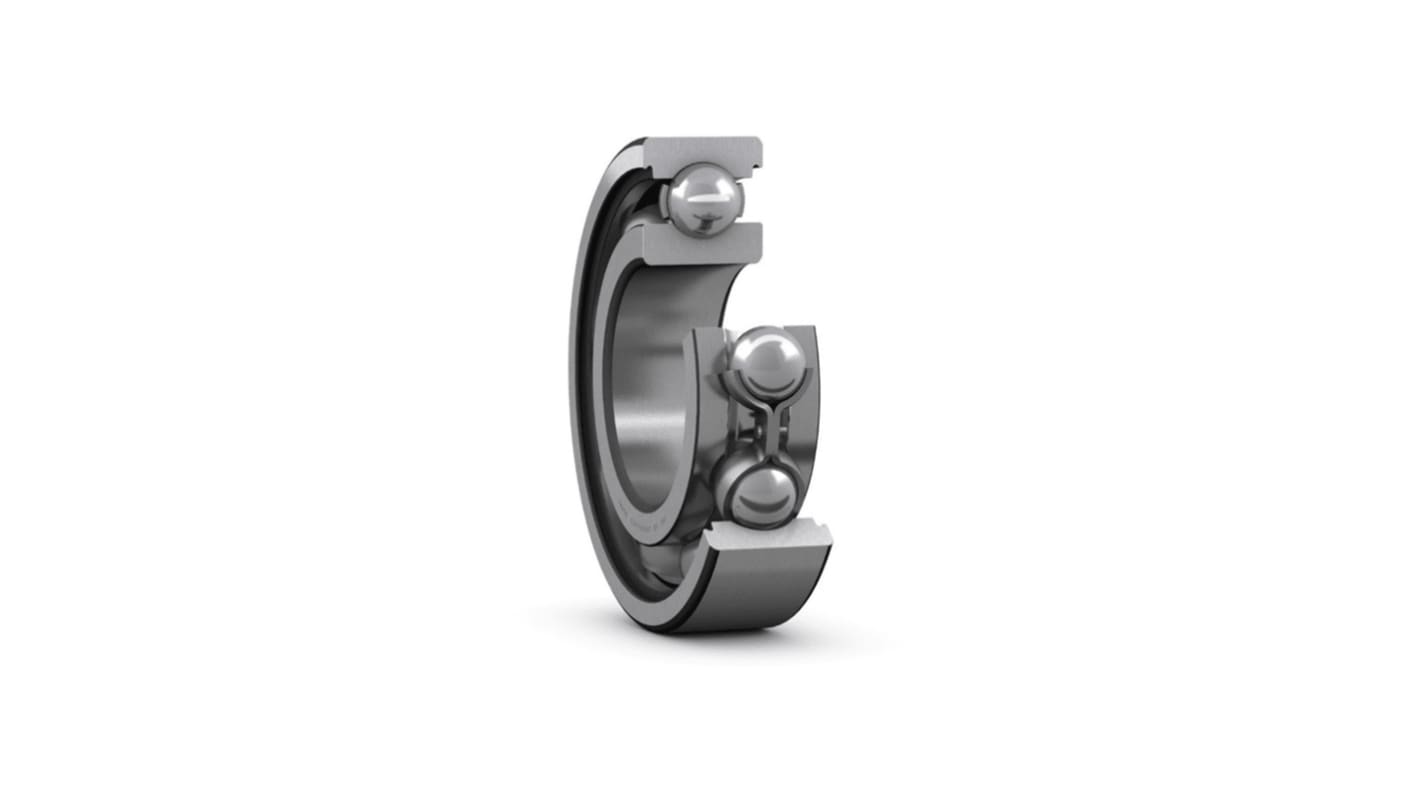

SKF 6030/C3 Single Row Deep Groove Ball Bearing- Open Type 150mm I.D, 225mm O.D
- RS Stock No.:
- 207-6931
- Mfr. Part No.:
- 6030/C3
- Brand:
- SKF
Subtotal (1 unit)*
£385.41
(exc. VAT)
£462.49
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £385.41 |
*price indicative
- RS Stock No.:
- 207-6931
- Mfr. Part No.:
- 6030/C3
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 150mm | |
Outside Diameter | 225mm | |
Race Width | 35mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | C3 | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 125kN | |
Dynamic Load Rating | 125kN | |
Bore Type | Parallel | |
Bearing Series | 0 Extra Light | |
Partial Bearing Code | 6030 | |
Model Number p | 6030/C3 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 150mm | ||
Outside Diameter 225mm | ||
Race Width 35mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance C3 | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 125kN | ||
Dynamic Load Rating 125kN | ||
Bore Type Parallel | ||
Bearing Series 0 Extra Light | ||
Partial Bearing Code 6030 | ||
Model Number p 6030/C3 | ||
- COO (Country of Origin):
- FR
The SKF deep groove ball bearings are particularly versatile. They are suitable for high and very high speeds, accommodate radial and axial loads in both directions and require little maintenance. Because deep groove ball bearings are the most widely used bearing type, they are available from SKF in many designs, variants and sizes. It has 150 mm ID and 225 mm OD.
Bearing is of bearing steel
Cylindrical bore type
Cylindrical bore type
