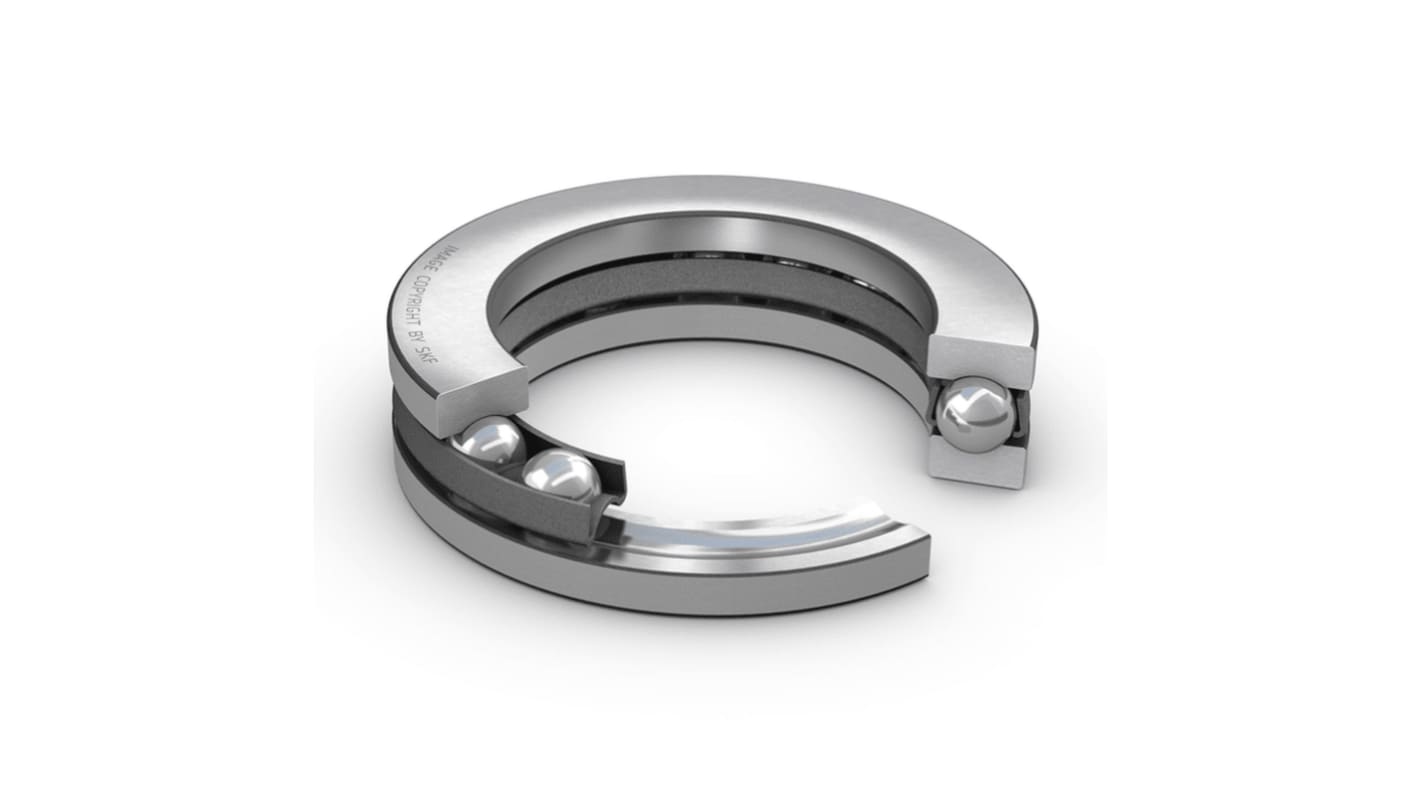

SKF 51202 Thrust Ball Bearing- Open Type 15mm I.D, 32mm O.D
- RS Stock No.:
- 207-6294
- Mfr. Part No.:
- 51202
- Brand:
- SKF
Subtotal (1 unit)*
£19.61
(exc. VAT)
£23.53
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 85 unit(s) ready to ship
- Plus 24 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £19.61 |
*price indicative
- RS Stock No.:
- 207-6294
- Mfr. Part No.:
- 51202
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 15mm | |
Outside Diameter | 32mm | |
Race Width | 12mm | |
Ball Bearing Type | Thrust Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 25kN | |
Dynamic Load Rating | 15.9kN | |
Bore Type | Parallel | |
Bearing Series | 1 Extra Light Thrust | |
Flange Outside Diameter | 32mm | |
Partial Bearing Code | 51202 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 15mm | ||
Outside Diameter 32mm | ||
Race Width 12mm | ||
Ball Bearing Type Thrust Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 25kN | ||
Dynamic Load Rating 15.9kN | ||
Bore Type Parallel | ||
Bearing Series 1 Extra Light Thrust | ||
Flange Outside Diameter 32mm | ||
Partial Bearing Code 51202 | ||
SKF Ball Bearing, Steel Construction, Parallel Bore, 15mm ID, 32mm OD - 1 Extra Light Thrust Series - 51202
Keep your kit spinning smoothly with this thrust ball bearing from SKF. It's designed to support axial loads of up to 15.9kN (dynamic) and 25kN (static) in one direction, enabling you to manage the force and rotate your components effectively. As this is a single-row unit, you can trust it minimises friction to deliver efficient operation. Noise and vibration are also kept low, which boosts workplace comfort and cuts excess wear out of the picture.
Features & Benefits
• Parallel bore means it's easy to fit onto a shaft with no need for a bearing sleeve
• Steel construction makes it hardwearing and durable
• Open-ended style gives you easy access for relubrication
• Steel construction makes it hardwearing and durable
• Open-ended style gives you easy access for relubrication
Applications
• Conveyors
• Oil and gas industry
• Construction equipment
• Oil and gas industry
• Construction equipment
Why would I choose an open-ended ball bearing?
Bearings with open ends are suitable choices where frequent relubrication is needed, as you can apply grease without disassembly. They also experience less friction than shielded alternatives, so can run faster and cooler. Pick this option for clean environments where you don't need to worry about contaminants getting in among the rolling parts.
