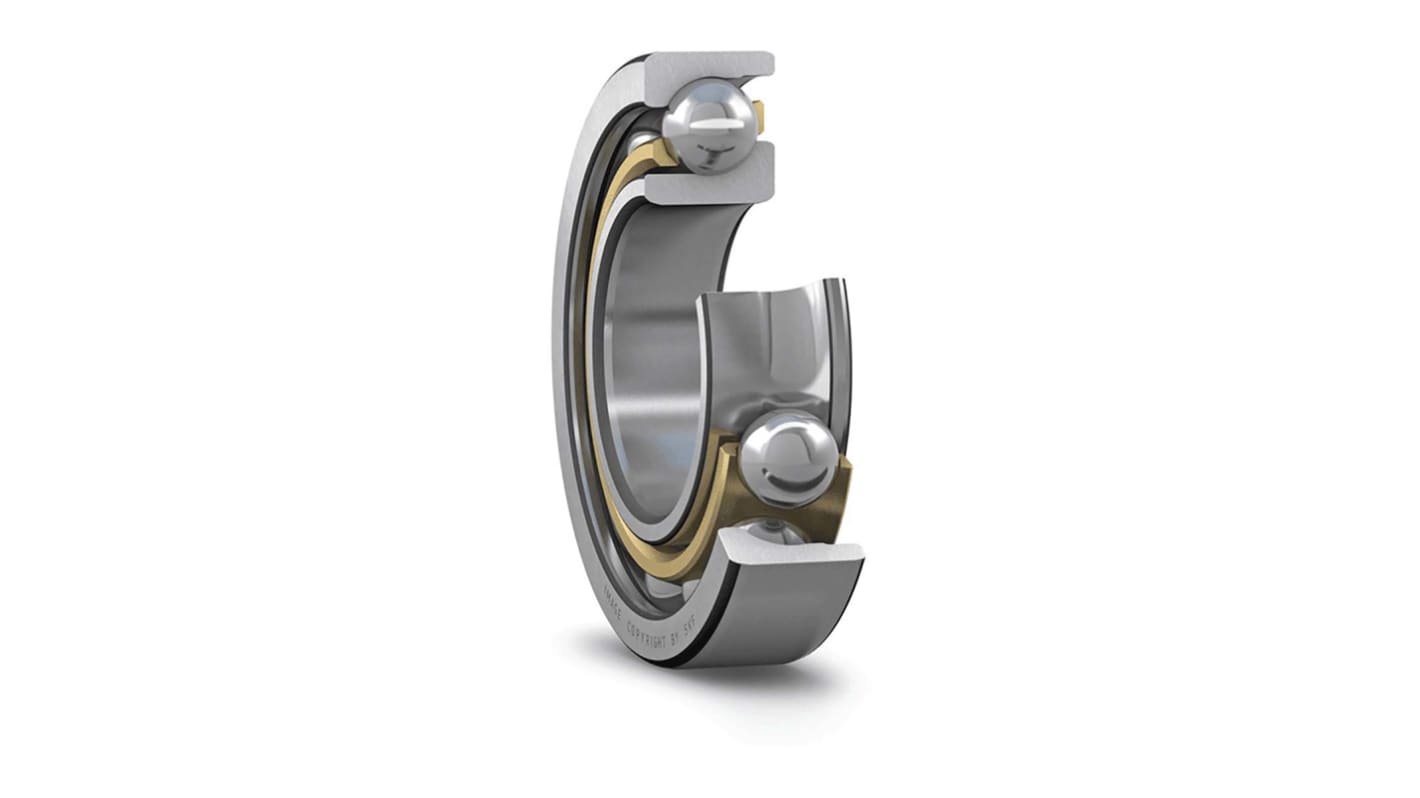

SKF 7228 BCBM Single Row Angular Contact Ball Bearing- Open Type 140mm I.D, 250mm O.D
- RS Stock No.:
- 207-5504
- Mfr. Part No.:
- 7228 BCBM
- Brand:
- SKF
Subtotal (1 unit)*
£1,309.45
(exc. VAT)
£1,571.34
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £1,309.45 |
*price indicative
- RS Stock No.:
- 207-5504
- Mfr. Part No.:
- 7228 BCBM
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 140mm | |
Outside Diameter | 250mm | |
Race Width | 42mm | |
Ball Bearing Type | Single Row Angular Contact Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Brass | |
Number of Rows | 1 | |
Static Load Rating | 212kN | |
Dynamic Load Rating | 199kN | |
Bore Type | Parallel | |
Bearing Series | 2 Light | |
Race Material | Steel | |
Partial Bearing Code | 7228 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 140mm | ||
Outside Diameter 250mm | ||
Race Width 42mm | ||
Ball Bearing Type Single Row Angular Contact Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Brass | ||
Number of Rows 1 | ||
Static Load Rating 212kN | ||
Dynamic Load Rating 199kN | ||
Bore Type Parallel | ||
Bearing Series 2 Light | ||
Race Material Steel | ||
Partial Bearing Code 7228 | ||
- COO (Country of Origin):
- DE
SKF Ball Bearing, 140 mm ID, 250 mm OD - 7224 BCBM
This single-row angular contact ball bearing from SKF can take a radial load combined with a heavy axial load in one direction. The raceways are displaced relative to each other in the direction of the bearing axis. As the contact angle increases, so does the axial load-carrying capacity of the bearing. It's built for universal matching, making it simple to install. Because of their substantial load-carrying capacity, bearings of this type are commonly used in heavy machinery and agricultural equipment.
• Low-friction design produces little heat and extends service life
• Minimal noise and vibration levels for a safe working environment
• Smooth running properties allowing for rapid acceleration and deceleration
• Minimal noise and vibration levels for a safe working environment
• Smooth running properties allowing for rapid acceleration and deceleration
Application Information
• Machine tools
• Steel mill
• Wind energy industries
• Compressors
• Industrial gearboxes
• Steel mill
• Wind energy industries
• Compressors
• Industrial gearboxes
What type of seal is used in SKF single row angular contact ball bearings?
SKF ball bearings use NBR (nitrile butadiene rubber) seals to form an effective barrier against oil and water.
What is the operating temperature range of this bearing?
The permissible operating temperature range of this bearing is -40°C to +100°C. Temperatures up to +120°C can be tolerated for brief periods.
