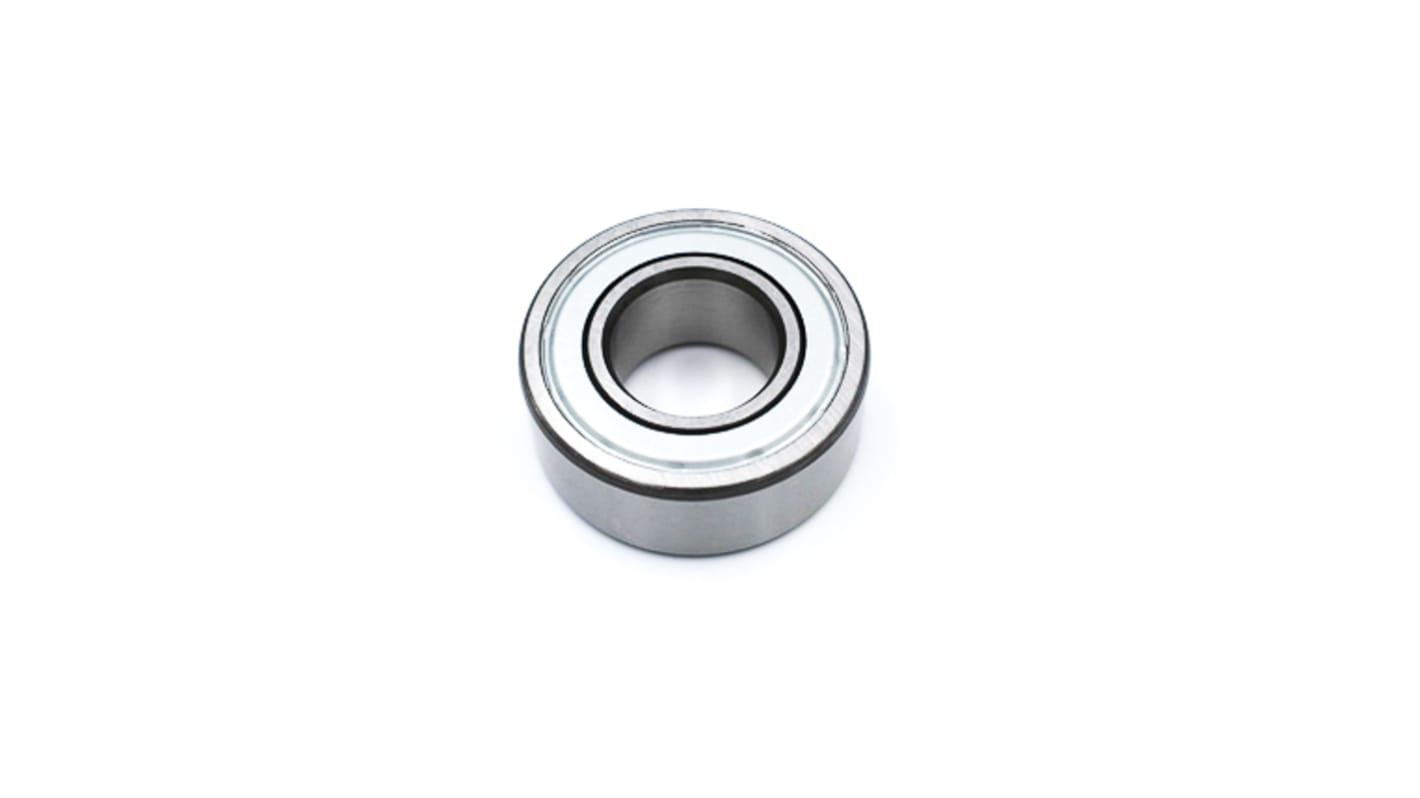

FAG 3004-2Z Double Row Angular Contact Ball Bearing- Both Sides Shielded 20mm I.D, 42mm O.D
- RS Stock No.:
- 190-8355
- Mfr. Part No.:
- 3004-2Z
- Brand:
- FAG
Save 7% when you buy 25 units
Subtotal (1 unit)*
£38.66
(exc. VAT)
£46.39
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 15 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £38.66 |
5 - 9 | £37.11 |
10 - 24 | £36.34 |
25 + | £35.58 |
*price indicative
- RS Stock No.:
- 190-8355
- Mfr. Part No.:
- 3004-2Z
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | FAG | |
Inside Diameter | 20mm | |
Outside Diameter | 42mm | |
Race Width | 16mm | |
Ball Bearing Type | Double Row Angular Contact Ball Bearing | |
Sealing Arrangement | Both Sides Shielded | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Steel | |
Number of Rows | 2 | |
Static Load Rating | 9.4kN | |
Dynamic Load Rating | 14.3kN | |
Bore Type | Parallel | |
Bearing Series | 0 Extra Light | |
Partial Bearing Code | 3004 | |
Race Type | Plain | |
Select all | ||
---|---|---|
Brand FAG | ||
Inside Diameter 20mm | ||
Outside Diameter 42mm | ||
Race Width 16mm | ||
Ball Bearing Type Double Row Angular Contact Ball Bearing | ||
Sealing Arrangement Both Sides Shielded | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Steel | ||
Number of Rows 2 | ||
Static Load Rating 9.4kN | ||
Dynamic Load Rating 14.3kN | ||
Bore Type Parallel | ||
Bearing Series 0 Extra Light | ||
Partial Bearing Code 3004 | ||
Race Type Plain | ||
The design envelope is not sufficient under high loads for a pair of single row angular contact ball bearings
High radial and axial loads are acting simultaneously
Tilting moments must also be supported
A relatively rigid bearing arrangement is required
The bearing arrangement is to run quietly in addition to meeting the requirements stated above
High radial and axial loads are acting simultaneously
Tilting moments must also be supported
A relatively rigid bearing arrangement is required
The bearing arrangement is to run quietly in addition to meeting the requirements stated above
