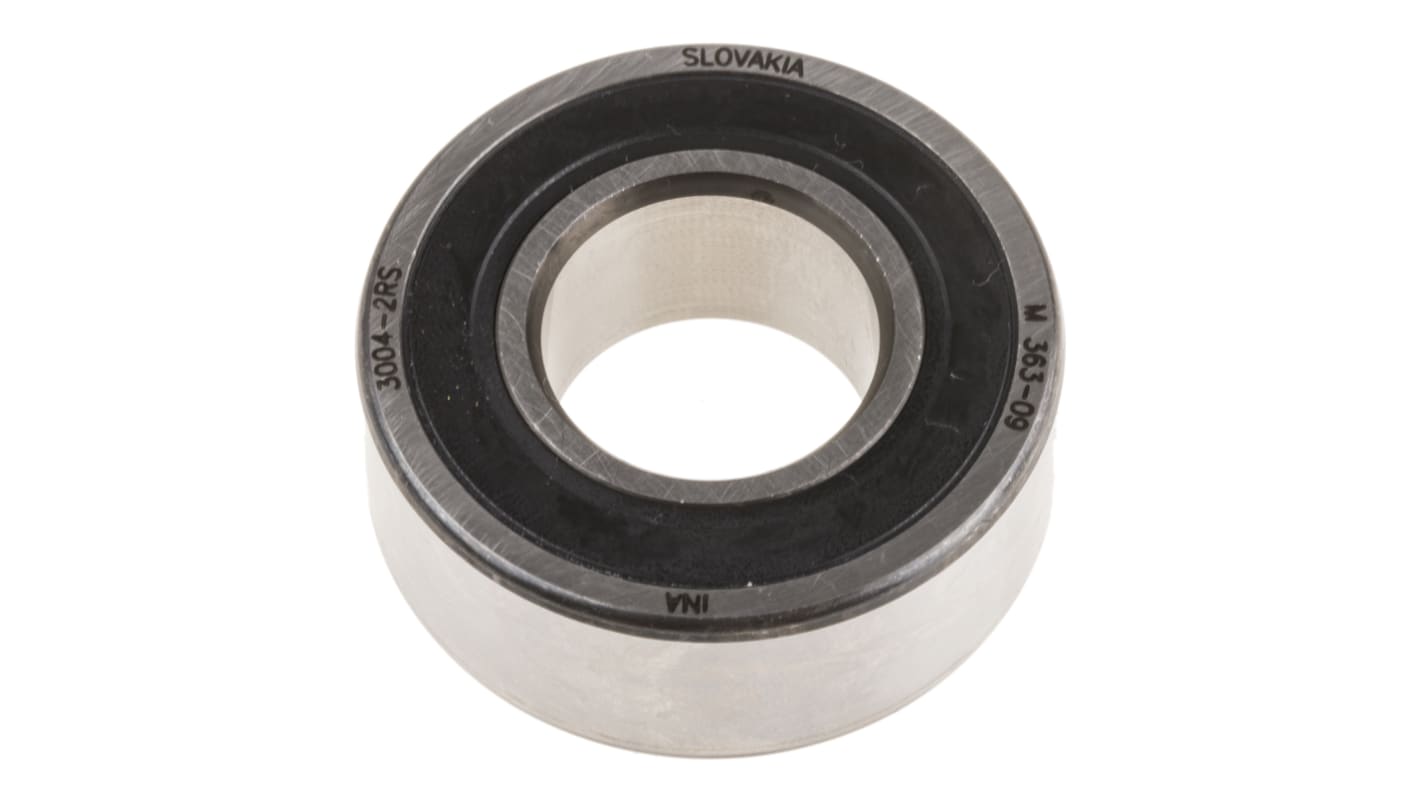

INA 3004-2RS Double Row Angular Contact Ball Bearing- Both Sides Sealed 20mm I.D, 42mm O.D
- RS Stock No.:
- 137-1543
- Mfr. Part No.:
- 3004-2RS
- Brand:
- INA
Save 8% when you buy 25 units
Subtotal (1 unit)*
£39.74
(exc. VAT)
£47.69
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 33 unit(s) shipping from 01 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £39.74 |
5 - 9 | £38.14 |
10 - 24 | £37.36 |
25 + | £36.55 |
*price indicative
- RS Stock No.:
- 137-1543
- Mfr. Part No.:
- 3004-2RS
- Brand:
- INA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | INA | |
Inside Diameter | 20mm | |
Outside Diameter | 42mm | |
Race Width | 16mm | |
Ball Bearing Type | Double Row Angular Contact Ball Bearing | |
Sealing Arrangement | Both Sides Sealed | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Polyamide | |
Number of Rows | 2 | |
Static Load Rating | 9.4kN | |
Dynamic Load Rating | 14.3kN | |
Bore Type | Parallel | |
Bearing Series | 0 Extra Light | |
Partial Bearing Code | 3004 | |
Race Type | Plain | |
Select all | ||
---|---|---|
Brand INA | ||
Inside Diameter 20mm | ||
Outside Diameter 42mm | ||
Race Width 16mm | ||
Ball Bearing Type Double Row Angular Contact Ball Bearing | ||
Sealing Arrangement Both Sides Sealed | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Polyamide | ||
Number of Rows 2 | ||
Static Load Rating 9.4kN | ||
Dynamic Load Rating 14.3kN | ||
Bore Type Parallel | ||
Bearing Series 0 Extra Light | ||
Partial Bearing Code 3004 | ||
Race Type Plain | ||
Schaeffler 0 Extra Light Series Ball Bearing, 20mm Inside Diameter, 42mm Outside Diameter - 3004-2RS
This ball bearing is designed for superior performance in electrical, mechanical, and automation applications. Measuring 20mm in inner diameter and 42mm in outer diameter, it features a double row angular contact design that enhances load-carrying capacity. Manufactured with both sides sealed, this bearing offers protection against contaminants, promoting longevity and reliability in demanding environments.
Features & Benefits
• Double row design enhances load distribution and stability
• Sealed on both sides to prevent ingress of contaminants
• Steel construction ensures durability and strength under load
• High load ratings of 9.4kN static and 14.3kN dynamic improve performance
• Polyamide cage reduces friction and noise during operation
• CN bearing clearance ensures optimal fit and movement
• Sealed on both sides to prevent ingress of contaminants
• Steel construction ensures durability and strength under load
• High load ratings of 9.4kN static and 14.3kN dynamic improve performance
• Polyamide cage reduces friction and noise during operation
• CN bearing clearance ensures optimal fit and movement
Applications
• High-load requiring compact design
• Rotating machinery in industrial environments
• needing effective sealing against solids and liquids
• Rotating machinery in industrial environments
• needing effective sealing against solids and liquids
What is the significance of the double row design in enhancing performance?
The double row design allows for a greater load-carrying capacity and improved stability, which is beneficial in applications with dynamic forces or vibrations. This structure evenly distributes the load across more balls, reducing stress and prolonging bearing life.
What materials are used in the manufacturing of this bearing, and how does it affect performance?
This bearing is primarily made from steel, which provides exceptional strength and wear resistance. The polyamide cage further contributes to reduced friction and noise, ensuring smoother operation in various applications.
How does the sealing arrangement influence the bearing's lifespan?
The sealing arrangement on both sides prevents the entry of dirt and moisture, which can cause premature wear. This protection extends the bearing's operational lifespan, especially in harsh environments where contaminant exposure is likely.
