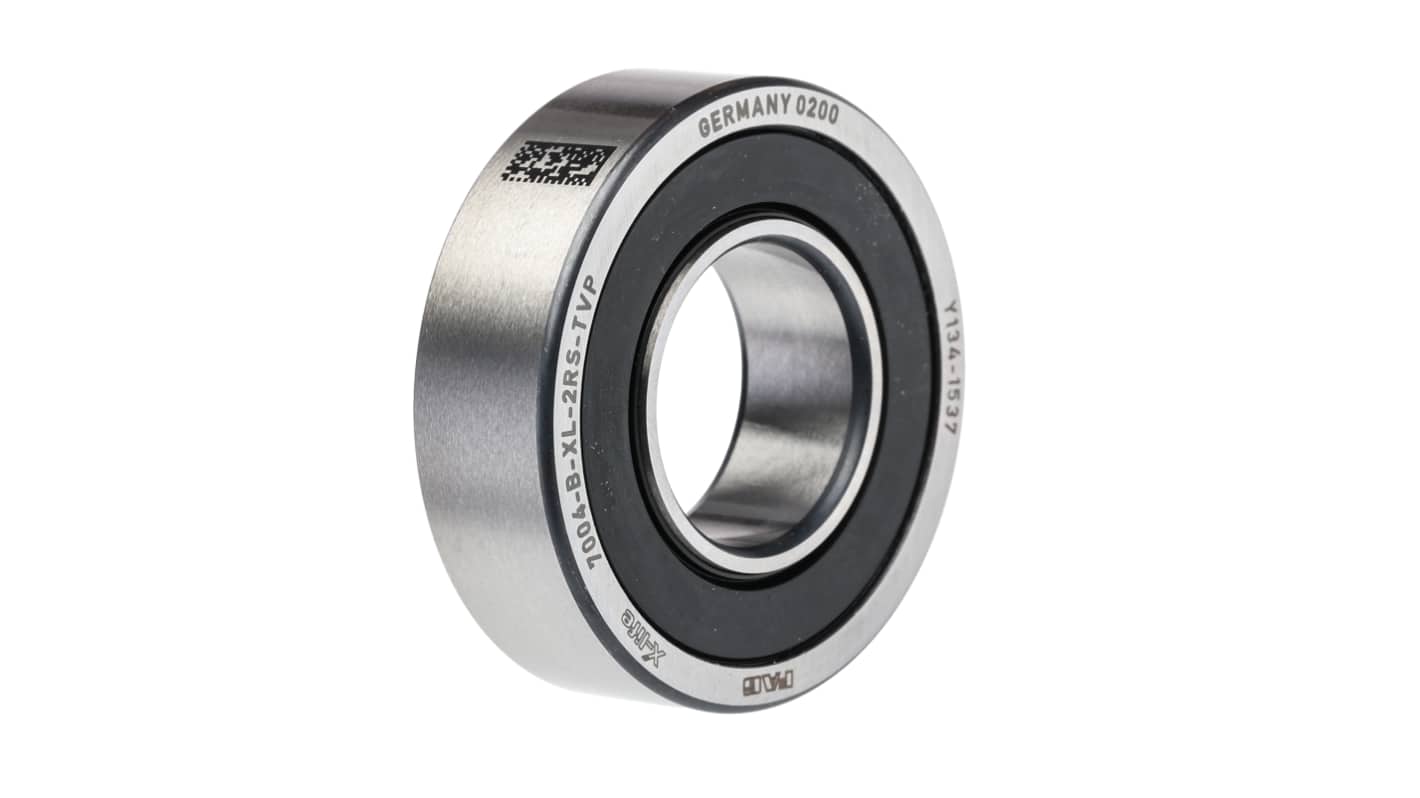

FAG 7004-B-XL-2RS-TVP Single Row Angular Contact Ball Bearing- Both Sides Sealed 20mm I.D, 42mm O.D
- RS Stock No.:
- 187-9489
- Mfr. Part No.:
- 7004-B-XL-2RS-TVP
- Brand:
- FAG
Bulk discount available
Subtotal (1 unit)*
£96.38
(exc. VAT)
£115.66
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 10 unit(s) shipping from 13 October 2025
- Plus 999,999,989 unit(s) shipping from 14 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £96.38 |
5 - 9 | £92.52 |
10 - 24 | £90.61 |
25 + | £88.67 |
*price indicative
- RS Stock No.:
- 187-9489
- Mfr. Part No.:
- 7004-B-XL-2RS-TVP
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | FAG | |
Inside Diameter | 20mm | |
Outside Diameter | 42mm | |
Race Width | 12mm | |
Ball Bearing Type | Single Row Angular Contact Ball Bearing | |
Sealing Arrangement | Both Sides Sealed | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Polyamide | |
Number of Rows | 1 | |
Static Load Rating | 8kN | |
Dynamic Load Rating | 14.5kN | |
Bore Type | Parallel | |
Bearing Series | 0 Extra Light | |
Race Material | Steel | |
Race Type | Plain | |
Partial Bearing Code | 7004 | |
Select all | ||
---|---|---|
Brand FAG | ||
Inside Diameter 20mm | ||
Outside Diameter 42mm | ||
Race Width 12mm | ||
Ball Bearing Type Single Row Angular Contact Ball Bearing | ||
Sealing Arrangement Both Sides Sealed | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Polyamide | ||
Number of Rows 1 | ||
Static Load Rating 8kN | ||
Dynamic Load Rating 14.5kN | ||
Bore Type Parallel | ||
Bearing Series 0 Extra Light | ||
Race Material Steel | ||
Race Type Plain | ||
Partial Bearing Code 7004 | ||
- COO (Country of Origin):
- DE
Schaeffler 0 Extra Light Series Angular Contact Ball Bearing, 20mm Inside Diameter, 42mm Outside Diameter - 7004-B-XL-2RS-TVP
This angular contact ball bearing is designed for high precision applications and features a robust construction. With dimensions of 20mm for the inside diameter and 42mm for the outside diameter, this single row angular contact bearing provides optimal performance in various mechanical setups. The dual sealing arrangement enhances durability, making it ideal for environments where contaminants may be present.
Features & Benefits
• Dual sealing arrangement protects against contamination
• High load ratings ensure reliability under heavy loads
• Single row design allows for high-speed operations
• Steel construction enhances strength and longevity
• Polyamide cage reduces friction for smoother operation
• Suitable for parallel bore applications ensuring easy integration
• High load ratings ensure reliability under heavy loads
• Single row design allows for high-speed operations
• Steel construction enhances strength and longevity
• Polyamide cage reduces friction for smoother operation
• Suitable for parallel bore applications ensuring easy integration
Applications
• Used for precision machinery in the electrical industry
• Employed in equipment for efficient operation
• Ideal for high-speed spindle in electronics
• Suitable for systems requiring reliable performance
• Employed in equipment for efficient operation
• Ideal for high-speed spindle in electronics
• Suitable for systems requiring reliable performance
What type of materials are used in this bearing's construction?
The bearing is constructed from steel, ensuring high durability, while the cage is made from polyamide, providing enhanced performance through reduced friction.
What load capacities can be expected from this design?
The static load rating reaches up to 8kN, while the dynamic load rating is 14.5kN, making it suitable for heavy loads in various applications.
How does the sealing arrangement benefit the bearing's operation?
The sealing arrangement on both sides helps keep contaminants out, which prolongs the service life of the bearing and maintains operational efficiency in challenging environments.
