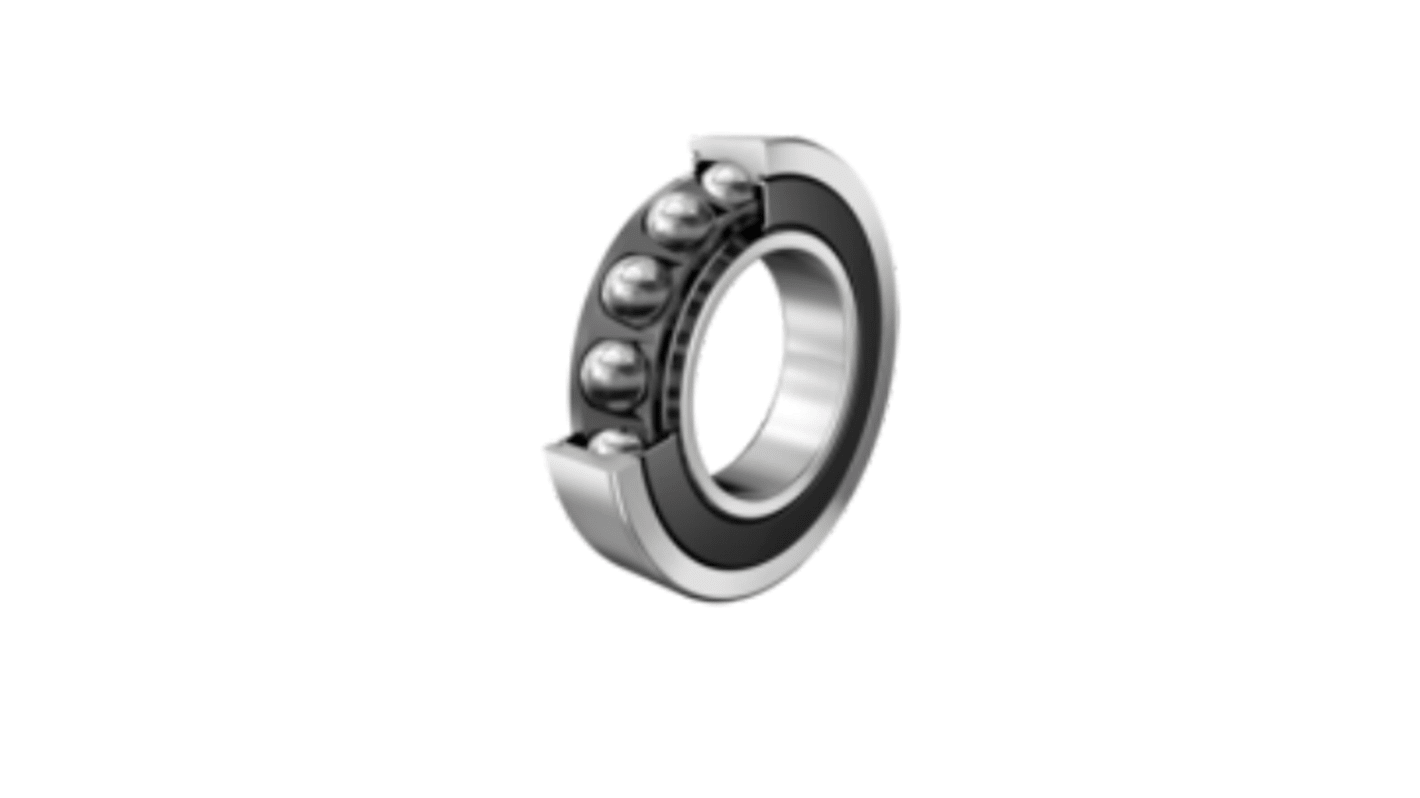

FAG 7005-B-XL-2RS-TVP Single Row Angular Contact Ball Bearing- Both Sides Sealed 25mm I.D, 47mm O.D
- RS Stock No.:
- 187-9490
- Mfr. Part No.:
- 7005-B-XL-2RS-TVP
- Brand:
- FAG
Save 7% when you buy 25 units
Subtotal (1 unit)*
£104.83
(exc. VAT)
£125.80
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
- Plus 999,999,997 unit(s) shipping from 14 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £104.83 |
5 - 9 | £100.63 |
10 - 24 | £98.53 |
25 + | £96.46 |
*price indicative
- RS Stock No.:
- 187-9490
- Mfr. Part No.:
- 7005-B-XL-2RS-TVP
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | FAG | |
Inside Diameter | 25mm | |
Outside Diameter | 47mm | |
Race Width | 12mm | |
Ball Bearing Type | Single Row Angular Contact Ball Bearing | |
Sealing Arrangement | Both Sides Sealed | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Plastic | |
Number of Rows | 1 | |
Static Load Rating | 9.9kN | |
Dynamic Load Rating | 16kN | |
Clearance Code | CN | |
Bore Type | Parallel | |
Bearing Series | 0 Extra Light | |
Race Type | Plain | |
Race Material | Steel | |
Partial Bearing Code | 7005 | |
Select all | ||
---|---|---|
Brand FAG | ||
Inside Diameter 25mm | ||
Outside Diameter 47mm | ||
Race Width 12mm | ||
Ball Bearing Type Single Row Angular Contact Ball Bearing | ||
Sealing Arrangement Both Sides Sealed | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Plastic | ||
Number of Rows 1 | ||
Static Load Rating 9.9kN | ||
Dynamic Load Rating 16kN | ||
Clearance Code CN | ||
Bore Type Parallel | ||
Bearing Series 0 Extra Light | ||
Race Type Plain | ||
Race Material Steel | ||
Partial Bearing Code 7005 | ||
- COO (Country of Origin):
- DE
Schaeffler 0 Extra Light Series Ball Bearing, 25mm Inside Diameter, 47mm Outside Diameter - 7005-B-XL-2RS-TVP
This ball bearing is a single row angular contact type, designed for high performance in various applications. With an inner diameter of 25mm and a race width of 12mm, it is built to handle dynamic loads efficiently. The sealing arrangement protects against contamination, enhancing durability and reliability in demanding environments.
Features & Benefits
• Dual sealing arrangement enhances protection from contaminants
• Single row design offers efficient performance under load
• Steel construction provides robustness for industrial applications
• High static load rating of 9.9 kN accommodates heavy loads
• Dynamic load rating of 16 kN supports rigorous movements
• Clearance code CN ensures optimal functioning in varying conditions
• Single row design offers efficient performance under load
• Steel construction provides robustness for industrial applications
• High static load rating of 9.9 kN accommodates heavy loads
• Dynamic load rating of 16 kN supports rigorous movements
• Clearance code CN ensures optimal functioning in varying conditions
Applications
• Used for rotary requiring precision
• Suitable for electric motors and mechanical assemblies
• Ideal for automation systems and machinery components
• Utilised in conveyor systems for consistent torque transmission
• Effective in robotics and precision engineering
• Suitable for electric motors and mechanical assemblies
• Ideal for automation systems and machinery components
• Utilised in conveyor systems for consistent torque transmission
• Effective in robotics and precision engineering
What type of materials are used in the construction?
The construction primarily features steel for both the race and ball materials, ensuring strength and longevity. The cage comprises plastic, contributing to reduced friction and improved performance.
How does the sealing arrangement protect the bearing?
The sealed design prevents dust and moisture ingress, which helps maintain lubrication levels and reduces wear, thus prolonging the bearing's operational life.
What does it mean when a bearing has a CN clearance?
A CN clearance indicates standard internal clearance, allowing for adequate space between the balls and races when mounted, which is crucial for optimal performance and heat dissipation.
