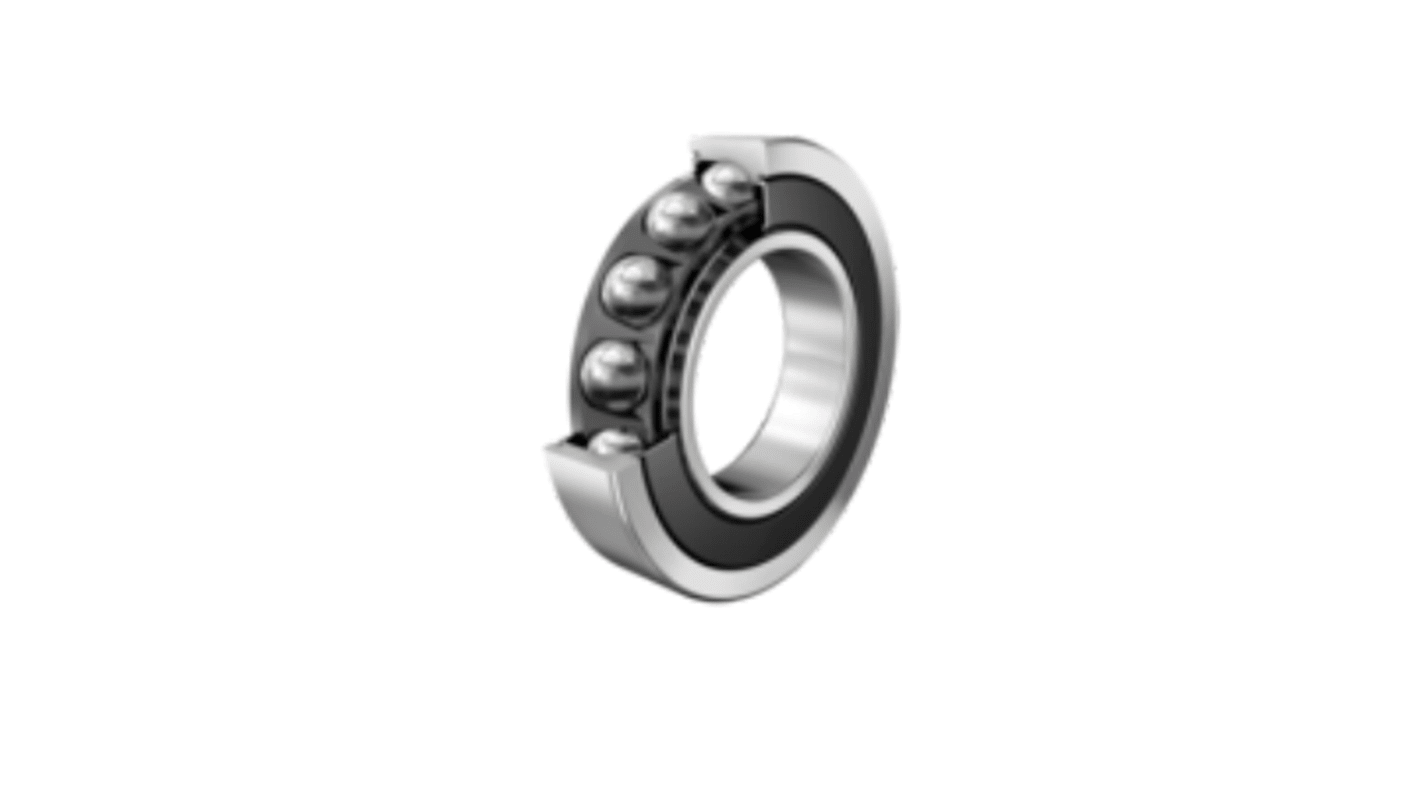

FAG 7007-B-XL-2RS-TVP Single Row Angular Contact Ball Bearing- Both Sides Sealed 35mm I.D, 62mm O.D
- RS Stock No.:
- 187-9494
- Mfr. Part No.:
- 7007-B-XL-2RS-TVP
- Brand:
- FAG
Bulk discount available
Subtotal (1 unit)*
£154.06
(exc. VAT)
£184.87
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 999,999,998 unit(s) shipping from 14 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £154.06 |
5 - 9 | £147.90 |
10 + | £144.82 |
*price indicative
- RS Stock No.:
- 187-9494
- Mfr. Part No.:
- 7007-B-XL-2RS-TVP
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | FAG | |
Inside Diameter | 35mm | |
Outside Diameter | 62mm | |
Race Width | 14mm | |
Ball Bearing Type | Single Row Angular Contact Ball Bearing | |
Sealing Arrangement | Both Sides Sealed | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Polyamide | |
Number of Rows | 1 | |
Static Load Rating | 17.2kN | |
Dynamic Load Rating | 24.3kN | |
Bore Type | Parallel | |
Bearing Series | 0 Extra Light | |
Partial Bearing Code | 7007 | |
Race Material | Steel | |
Race Type | Plain | |
Select all | ||
---|---|---|
Brand FAG | ||
Inside Diameter 35mm | ||
Outside Diameter 62mm | ||
Race Width 14mm | ||
Ball Bearing Type Single Row Angular Contact Ball Bearing | ||
Sealing Arrangement Both Sides Sealed | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Polyamide | ||
Number of Rows 1 | ||
Static Load Rating 17.2kN | ||
Dynamic Load Rating 24.3kN | ||
Bore Type Parallel | ||
Bearing Series 0 Extra Light | ||
Partial Bearing Code 7007 | ||
Race Material Steel | ||
Race Type Plain | ||
- COO (Country of Origin):
- DE
Schaeffler 0 Extra Light Series Angular Contact Ball Bearing, 35mm Inside Diameter, 62mm Outside Diameter - 7007-B-XL-2RS-TVP
This angular contact ball bearing is ideal for precision applications in various industries. Designed for high performance, it features an inside diameter of 35mm and an outside diameter of 62mm, with a race width of 14mm. The bearing is classified as a single row angular contact type and incorporates sealing on both sides for enhanced durability and reliability.
Features & Benefits
• Constructed from steel for increased strength and longevity
• Sealed design prevents contamination and enhances lifespan
• High dynamic load rating of 24.3kN ensures robust performance
• Single row configuration allows for effective load distribution
• Designed with parallel bore type for easy installation
• Reliable performance in automation and mechanical applications
• Sealed design prevents contamination and enhances lifespan
• High dynamic load rating of 24.3kN ensures robust performance
• Single row configuration allows for effective load distribution
• Designed with parallel bore type for easy installation
• Reliable performance in automation and mechanical applications
Applications
• Utilised in robotics for smooth movement and stability
• Employed in electronic equipment for precision operations
• Suitable for heavy machinery requiring durable components
• Used in conveyor systems for reliable transport functions
• Employed in electronic equipment for precision operations
• Suitable for heavy machinery requiring durable components
• Used in conveyor systems for reliable transport functions
What load capacity can this bearing support in various applications?
With a static load rating of 17.2kN and a dynamic load rating of up to 24.3kN, this bearing can efficiently handle significant loads in both static and dynamic conditions, making it ideal for high-stress applications.
How does the sealing arrangement benefit the operational lifespan?
The dual sealing arrangement effectively blocks dirt and moisture from entering the bearing, significantly reducing wear and tear, thus enhancing the operational lifespan under challenging conditions.
What factors should be considered when installing this bearing?
It's crucial to ensure proper alignment during installation to prevent premature wear. Additionally, adequate lubrication should be applied based on operational speeds and load conditions to maintain optimal performance.
