SKF 6322/C3VL0241 Single Row Deep Groove Ball Bearing- Open Type 110mm I.D, 240mm O.D
- RS Stock No.:
- 207-5376
- Mfr. Part No.:
- 6322/C3VL0241
- Brand:
- SKF
Subtotal (1 unit)*
£2,335.59
(exc. VAT)
£2,802.71
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £2,335.59 |
*price indicative
- RS Stock No.:
- 207-5376
- Mfr. Part No.:
- 6322/C3VL0241
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 110mm | |
Outside Diameter | 240mm | |
Race Width | 50mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | C3 | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 180kN | |
Dynamic Load Rating | 216kN | |
Bore Type | Parallel | |
Bearing Series | 3 Medium | |
Partial Bearing Code | 6322 | |
Race Material | Steel | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 110mm | ||
Outside Diameter 240mm | ||
Race Width 50mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance C3 | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 180kN | ||
Dynamic Load Rating 216kN | ||
Bore Type Parallel | ||
Bearing Series 3 Medium | ||
Partial Bearing Code 6322 | ||
Race Material Steel | ||
- COO (Country of Origin):
- DE

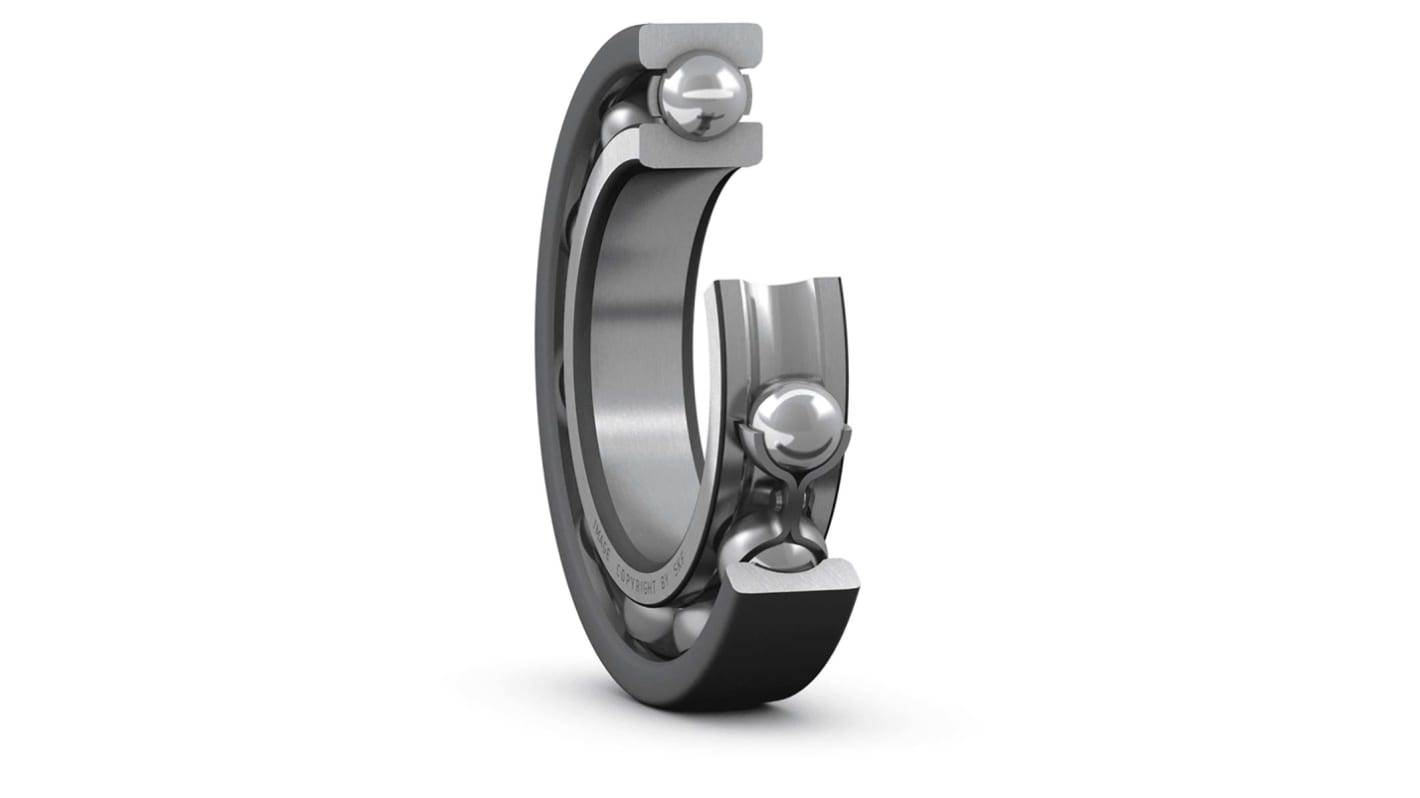

SKF Ball Bearing, 110 mm ID, 240 mm OD - 6322/C3VL0241
This SKF ball bearing is designed to deliver reliable and durable service. You'll find it commonly used in electric generators and motors. Known as an INSOCOAT bearing, it's coated with an insulating aluminium oxide layer that stops electric current from passing through the unit. This prevents surface damage and ensures that its lubrication doesn't degrade quickly, so you don't have to worry about frequent maintenance. The bearing also features a large internal clearance which accommodates thermal expansion, so it's the ideal choice for high-temperature applications.
• Open-end type bearing for low friction generation
• INSOCOAT insulation makes the bearing suitable for use in generators and motors
• Inside diameter of 110 mm, outside diameter of 240 mm
• Versatile race width of 50 mm
• INSOCOAT insulation makes the bearing suitable for use in generators and motors
• Inside diameter of 110 mm, outside diameter of 240 mm
• Versatile race width of 50 mm
Application Information
• Railways
• Electric motors and generators
• Wind energy
• Electric motors and generators
• Wind energy
What type of coating method is used in INSOCOAT bearings?
The aluminium-oxide layer is added to the bearing using a plasma-coating technology that ensures a smooth, quality finish.
Are INSOCOAT bearings susceptible to condensation?
No – INSOCOAT bearings from SKF are treated with a sealant that prevents condensation.
