SKF 6320/C3 Single Row Deep Groove Ball Bearing- Open Type 100mm I.D, 215mm O.D
- RS Stock No.:
- 207-5366
- Mfr. Part No.:
- 6320/C3
- Brand:
- SKF
Subtotal (1 unit)*
£321.49
(exc. VAT)
£385.79
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £321.49 |
*price indicative
- RS Stock No.:
- 207-5366
- Mfr. Part No.:
- 6320/C3
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 100mm | |
Outside Diameter | 215mm | |
Race Width | 47mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | C3 | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 140kN | |
Dynamic Load Rating | 174kN | |
Bore Type | Parallel | |
Clearance Code | C3 | |
Bearing Series | 3 Medium | |
Partial Bearing Code | 6320 | |
Model Number p | 6320C3 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 100mm | ||
Outside Diameter 215mm | ||
Race Width 47mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance C3 | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 140kN | ||
Dynamic Load Rating 174kN | ||
Bore Type Parallel | ||
Clearance Code C3 | ||
Bearing Series 3 Medium | ||
Partial Bearing Code 6320 | ||
Model Number p 6320C3 | ||
- COO (Country of Origin):
- FR

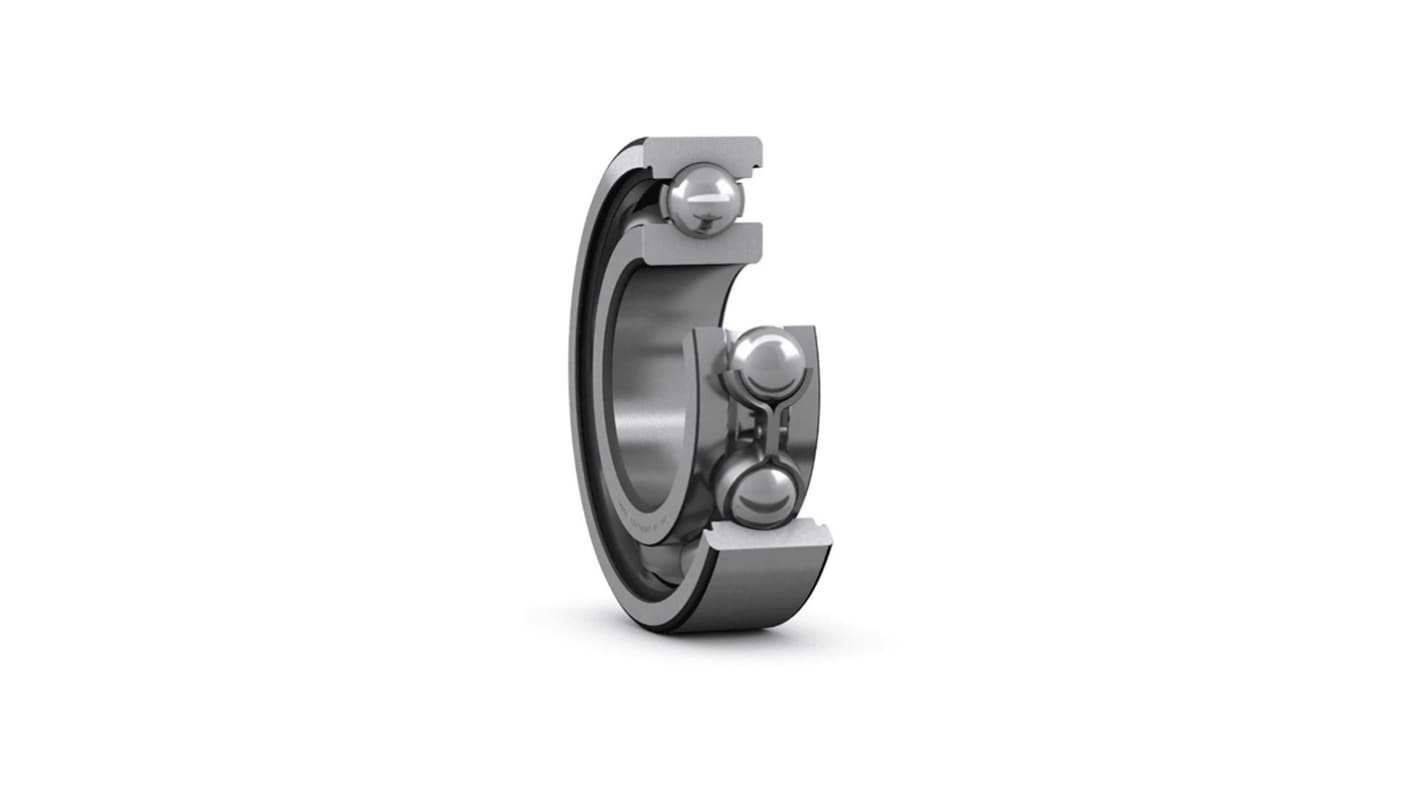

SKF Deep Groove Ball Bearing, 100mm Inside Diameter, 215mm Outside Diameter - 6320/C3
This deep groove ball bearing is an essential component in various mechanical applications. Designed for high-load capabilities, it features an inside diameter of 100mm and an outside diameter of 215mm. The open-type design facilitates easy maintenance and lubrication, enhancing its performance in demanding environments.
Features & Benefits
• High dynamic load rating of 174 kN for robust performance
• Static load rating of 140 kN ensures reliability under heavy loads
• Steel construction for durability and long service life
• Single-row design allows for efficient and smooth operation
• Versatile usage in industrial bearing systems
• Static load rating of 140 kN ensures reliability under heavy loads
• Steel construction for durability and long service life
• Single-row design allows for efficient and smooth operation
• Versatile usage in industrial bearing systems
Applications
• Used in automation machinery for reliable operation
• Suitable for electric motors requiring high load support
• Effective in electronic devices needing precise movement
• Ideal for mechanical assemblies demanding low friction
• Suitable for electric motors requiring high load support
• Effective in electronic devices needing precise movement
• Ideal for mechanical assemblies demanding low friction
What are the key advantages of the open-type design?
The open-type design allows for easier access to the internal components, facilitating regular maintenance and lubrication. This can significantly extend the bearing's operational life by reducing wear and tear due to friction.
How does C3 clearance affect performance?
C3 clearance provides additional internal space, allowing for thermal expansion during operation. This design helps maintain optimal performance in high-temperature conditions, preventing binding or excessive wear.
What materials are used in the construction, and why?
The bearing is constructed from steel, ensuring enhanced strength and resistance to deformation under load. This material choice is crucial for maintaining performance and extending service life in demanding applications.
