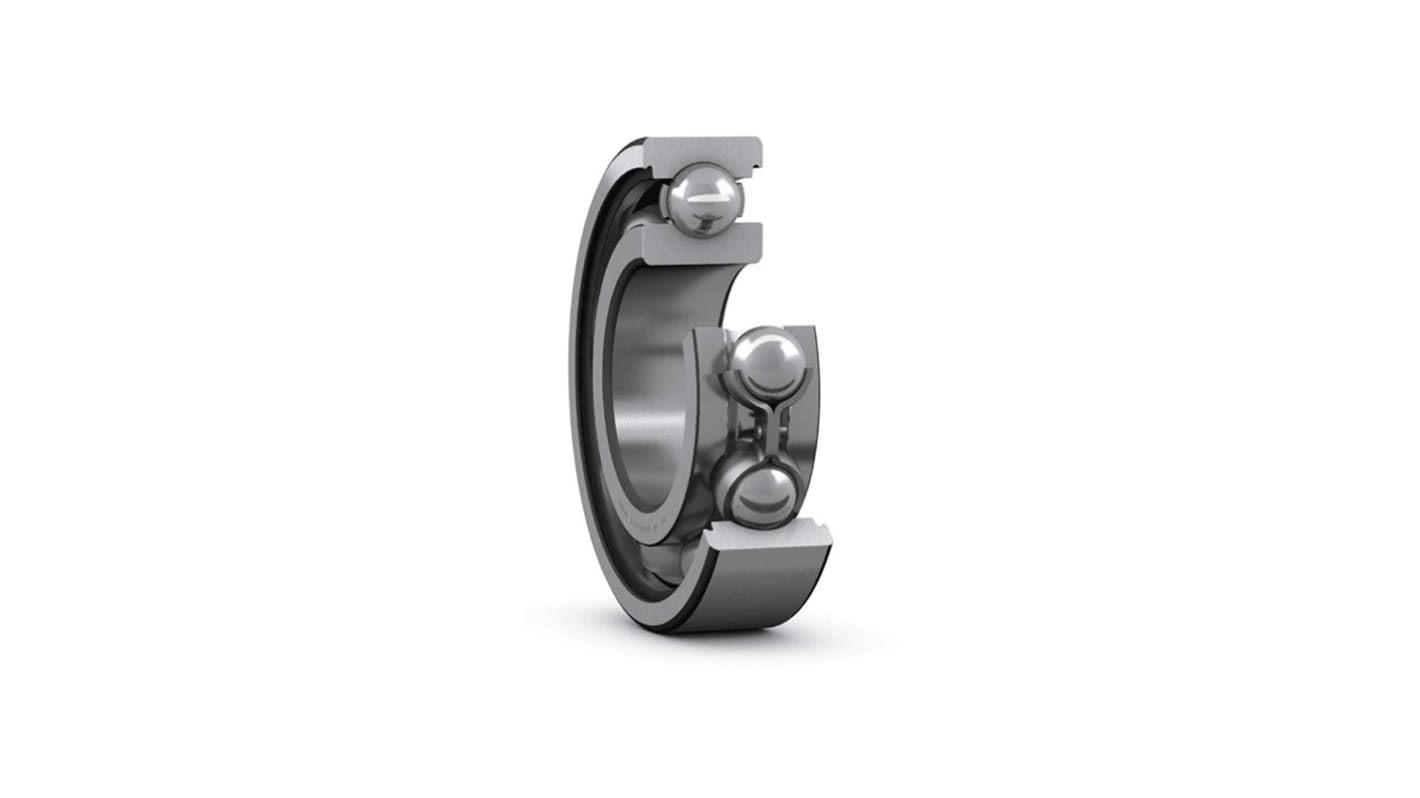

SKF 6320 Single Row Deep Groove Ball Bearing- Open Type 100mm I.D, 215mm O.D
- RS Stock No.:
- 207-5362
- Mfr. Part No.:
- 6320
- Brand:
- SKF
Subtotal (1 unit)*
£257.19
(exc. VAT)
£308.63
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 999,999,998 unit(s) shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £257.19 |
*price indicative
- RS Stock No.:
- 207-5362
- Mfr. Part No.:
- 6320
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Inside Diameter | 100mm | |
| Outside Diameter | 215mm | |
| Race Width | 47mm | |
| Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
| Sealing Arrangement | Open Type | |
| Bearing Clearance | CN | |
| Material | Steel | |
| Ball Material | Steel | |
| Cage Material | Sheet Metal | |
| Number of Rows | 1 | |
| Static Load Rating | 140kN | |
| Dynamic Load Rating | 174kN | |
| Bore Type | Parallel | |
| Bearing Series | 3 Medium | |
| Model Number p | 6320 | |
| Race Material | Steel | |
| Race Type | Plain | |
| Partial Bearing Code | 6320 | |
| Flange Outside Diameter | 215mm | |
Select all | ||
|---|---|---|
Brand SKF | ||
Inside Diameter 100mm | ||
Outside Diameter 215mm | ||
Race Width 47mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 140kN | ||
Dynamic Load Rating 174kN | ||
Bore Type Parallel | ||
Bearing Series 3 Medium | ||
Model Number p 6320 | ||
Race Material Steel | ||
Race Type Plain | ||
Partial Bearing Code 6320 | ||
Flange Outside Diameter 215mm | ||
- COO (Country of Origin):
- FR
SKF Ball Bearing, Deep-Groove Bearing Type, Open-Ended, 100mm ID, 215mm OD - 6320
You need your machines to turn quickly and efficiently, so get things rolling with this ball bearing from SKF. It's a deep-groove type that supports axial and radial loads in both directions. This makes it suitable for use with electric motors, conveyors and pumps. The unit is configured to be low friction, which helps it to handle fast speeds up to 4,300r/min without generating too much heat, so it stays cool under pressure. It's also designed for reduced noise and vibration to minimise wear, making it an effective and long-lasting component.
Features & Benefits
• Cylindrical shape makes mounting quick to maximise uptime
• Caged balls ensure loads are supported evenly
• Constructed from strong and corrosion-resistant steel to keep maintenance low
• Caged balls ensure loads are supported evenly
• Constructed from strong and corrosion-resistant steel to keep maintenance low
Applications
• Robotics systems
• Machine tools
• Milling machines
• Machine tools
• Milling machines
What's the dynamic load rating of this ball bearing?
This ball bearing has a dynamic load rating of 174kN, so you can trust it to handle heavy forces while it rotates.
What size is the ball bearing?
It has an inner diameter of 100mm and an outer diameter of 215mm, so it's a solid choice for use with larger pieces of machinery.
