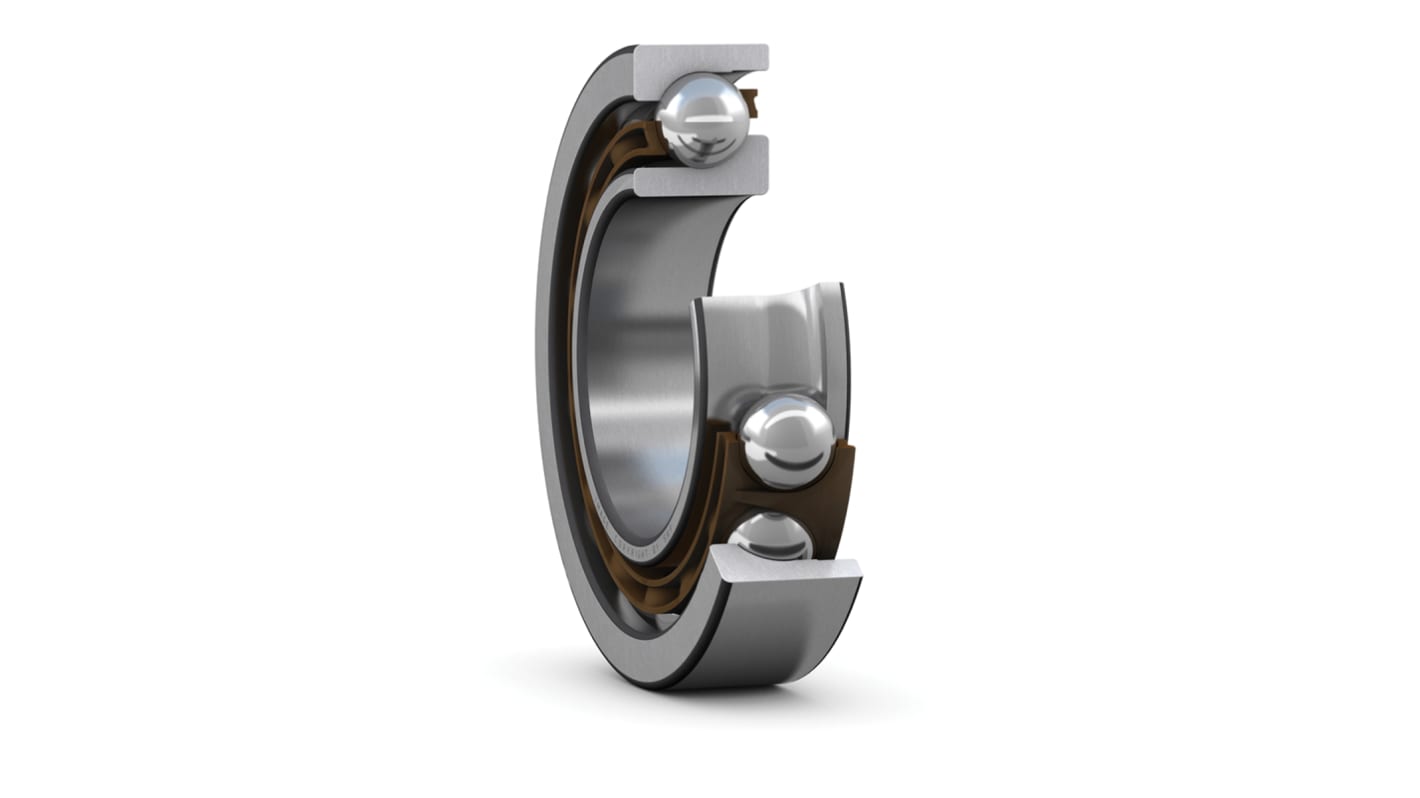

SKF 7306 BECBP 1 Row Ball Bearing - 30 mm ID, 72 mm OD 19 mm Race Width
- RS Stock No.:
- 195-9574
- Mfr. Part No.:
- 7306 BECBP
- Brand:
- SKF
Bulk discount available
Subtotal (1 unit)*
£63.44
(exc. VAT)
£76.13
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 10 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £63.44 |
| 5 - 9 | £60.87 |
| 10 - 24 | £59.61 |
| 25 + | £58.36 |
*price indicative
- RS Stock No.:
- 195-9574
- Mfr. Part No.:
- 7306 BECBP
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Inside Diameter | 30mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 72mm | |
| Race Width | 19mm | |
| Ball Material | Steel | |
| Cage Material | Non-Metallic | |
| End Type | Open | |
| Number of Rows | 1 | |
| Contact Angle | 40° | |
| Static Load Rating | 21.2kN | |
| Internal Clearance | CN | |
| Dynamic Load Rating | 35.5kN | |
| Standards/Approvals | No | |
| Bore Type | Parallel | |
| Series | 3 Medium | |
| Limiting Speed | 13000rpm | |
| Race Type | Plain | |
| Bearing Type | Single Row Angular Contact Ball | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Inside Diameter 30mm | ||
Product Type Ball Bearing | ||
Outside Diameter 72mm | ||
Race Width 19mm | ||
Ball Material Steel | ||
Cage Material Non-Metallic | ||
End Type Open | ||
Number of Rows 1 | ||
Contact Angle 40° | ||
Static Load Rating 21.2kN | ||
Internal Clearance CN | ||
Dynamic Load Rating 35.5kN | ||
Standards/Approvals No | ||
Bore Type Parallel | ||
Series 3 Medium | ||
Limiting Speed 13000rpm | ||
Race Type Plain | ||
Bearing Type Single Row Angular Contact Ball | ||
RoHS Status: Exempt
SKF Ball Bearing, 30mm Inside Diameter, 72mm Outside Diameter - 7306 BECBP
This ball bearing is a single row angular contact type, designed for use in various applications requiring precise load management. Featuring a 30mm inner diameter and a 72mm outer diameter, it provides an Ideal solution for those needing robust performance in mechanical assemblies. The open type design supports versatile installation, making it suitable for a range of industrial contexts.
Features & Benefits
• Constructed from steel for enhanced durability and strength
• Designed for dynamic loads up to 35.5kN for reliable operation
• Incorporates non-metallic cage material for reduced friction
• Optimised for reference speeds of 12000 r/min, ensuring high efficiency
• Features a bearing clearance rating of CN for precise installation
• Standardised dimensions aid in straightforward replacement and maintenance
• Designed for dynamic loads up to 35.5kN for reliable operation
• Incorporates non-metallic cage material for reduced friction
• Optimised for reference speeds of 12000 r/min, ensuring high efficiency
• Features a bearing clearance rating of CN for precise installation
• Standardised dimensions aid in straightforward replacement and maintenance
Applications
• Utilised in automated machinery for effective load distribution
• Implemented in electric motors for reliable performance
• Suitable for industrial equipment requiring high-speed operation
• Applied in conveyor systems for smooth rotational movement
• Implemented in electric motors for reliable performance
• Suitable for industrial equipment requiring high-speed operation
• Applied in conveyor systems for smooth rotational movement
How does the material of this product impact its performance?
The use of steel in construction increases the bearing's load capacity and overall durability, making it Ideal for high-stress applications.
What factors could influence the bearing's life expectancy in a typical application?
The lifespan can be affected by load conditions, speeds, lubrication quality, and installation accuracy, all of which should be optimised for maximum longevity.
What is the significance of the open type design in this ball bearing?
An open type design allows for easy lubrication access and is better suited for applications where environmental contaminants are minimal.
