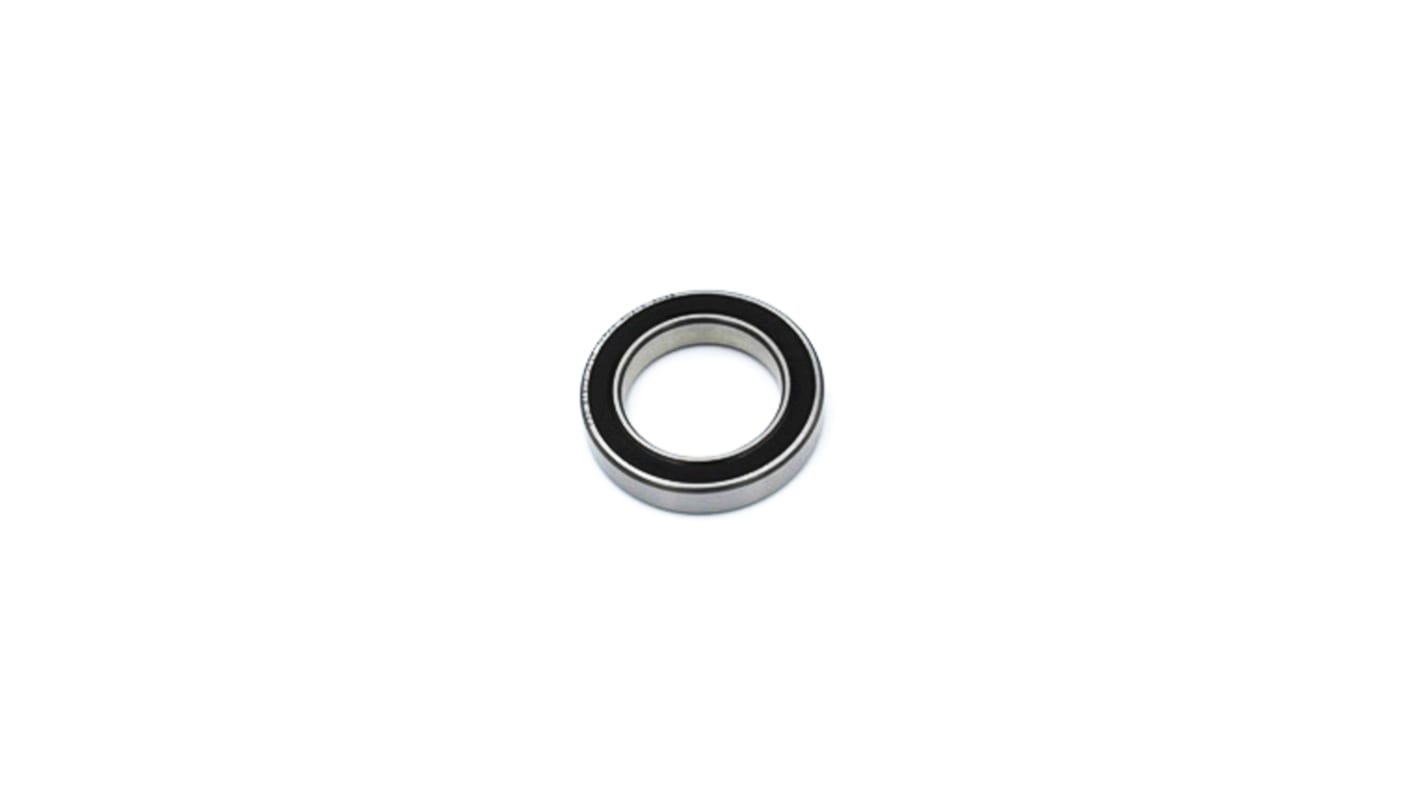

FAG 61800-2RSR-HLC 1 Row Ball Bearing - 10 mm ID, 19 mm OD
- RS Stock No.:
- 190-8404
- Mfr. Part No.:
- 61800-2RSR-HLC
- Brand:
- FAG
Bulk discount available
Subtotal (1 unit)*
£14.03
(exc. VAT)
£16.84
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 37 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £14.03 |
| 5 - 9 | £13.46 |
| 10 - 24 | £13.20 |
| 25 + | £12.89 |
*price indicative
- RS Stock No.:
- 190-8404
- Mfr. Part No.:
- 61800-2RSR-HLC
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Product Type | Ball Bearing | |
| Inside Diameter | 10mm | |
| Outside Diameter | 19mm | |
| Race Width | 5mm | |
| Cage Material | Steel | |
| Ball Material | Steel | |
| End Type | Sealed | |
| Number of Rows | 1 | |
| Internal Clearance | CN | |
| Static Load Rating | 840N | |
| Dynamic Load Rating | 1.82kN | |
| Bore Type | Parallel | |
| Series | 60 | |
| Standards/Approvals | No | |
| Limiting Speed | 21100rpm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Race Type | Plain | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Product Type Ball Bearing | ||
Inside Diameter 10mm | ||
Outside Diameter 19mm | ||
Race Width 5mm | ||
Cage Material Steel | ||
Ball Material Steel | ||
End Type Sealed | ||
Number of Rows 1 | ||
Internal Clearance CN | ||
Static Load Rating 840N | ||
Dynamic Load Rating 1.82kN | ||
Bore Type Parallel | ||
Series 60 | ||
Standards/Approvals No | ||
Limiting Speed 21100rpm | ||
Bearing Type Single Row Deep Groove Ball | ||
Race Type Plain | ||
Schaeffler Series 60 Ball Bearing, 10mm Inside Diameter, 19mm Outside Diameter - 61800-2RSR-HLC
This ball bearing provides sealed rolling support for rotating shafts in Compact electromechanical assemblies, delivering low-friction operation for automation and electronics equipment. It is constructed from steel with a parallel bore and fitted with sealing for contamination protection, making it suitable for continuous high-speed rotation in confined housings.
Features & Benefits
• High permissible speed supports Rapid shaft rotation up to 21,100 rpm
• Robust dynamic capacity offers 1.82 kN load handling for live loads
• Static resistance of 840 N reduces the risk of deformation at rest
• Single-row deep-groove design ensures smooth radial load performance
• Steel cage Plus sealed ends limits ingress and maintenance intervals
• Robust dynamic capacity offers 1.82 kN load handling for live loads
• Static resistance of 840 N reduces the risk of deformation at rest
• Single-row deep-groove design ensures smooth radial load performance
• Steel cage Plus sealed ends limits ingress and maintenance intervals
**Applications**
• Suitable for precision motors in automation systems
• Ideal for spindle support in Compact electrical drives
• Used for rotary components in consumer electronics assemblies
• Can be used for gearbox idlers in light mechanical equipment
• Ideal for spindle support in Compact electrical drives
• Used for rotary components in consumer electronics assemblies
• Can be used for gearbox idlers in light mechanical equipment
Which component limits permissible rotational speed?
The bearing’s material, internal geometry and two-sided Seals define the maximum operational speed of 21,100 rpm under rated conditions.
How does the sealing affect maintenance needs?
The sealed construction reduces lubricant loss and contaminant ingress, thereby extending service intervals compared with open bearings.
What bearing construction assists alignment and load distribution?
The plain races combined with a single-row deep-groove arrangement provide consistent contact angles for radial load distribution without angular-contact characteristics.
