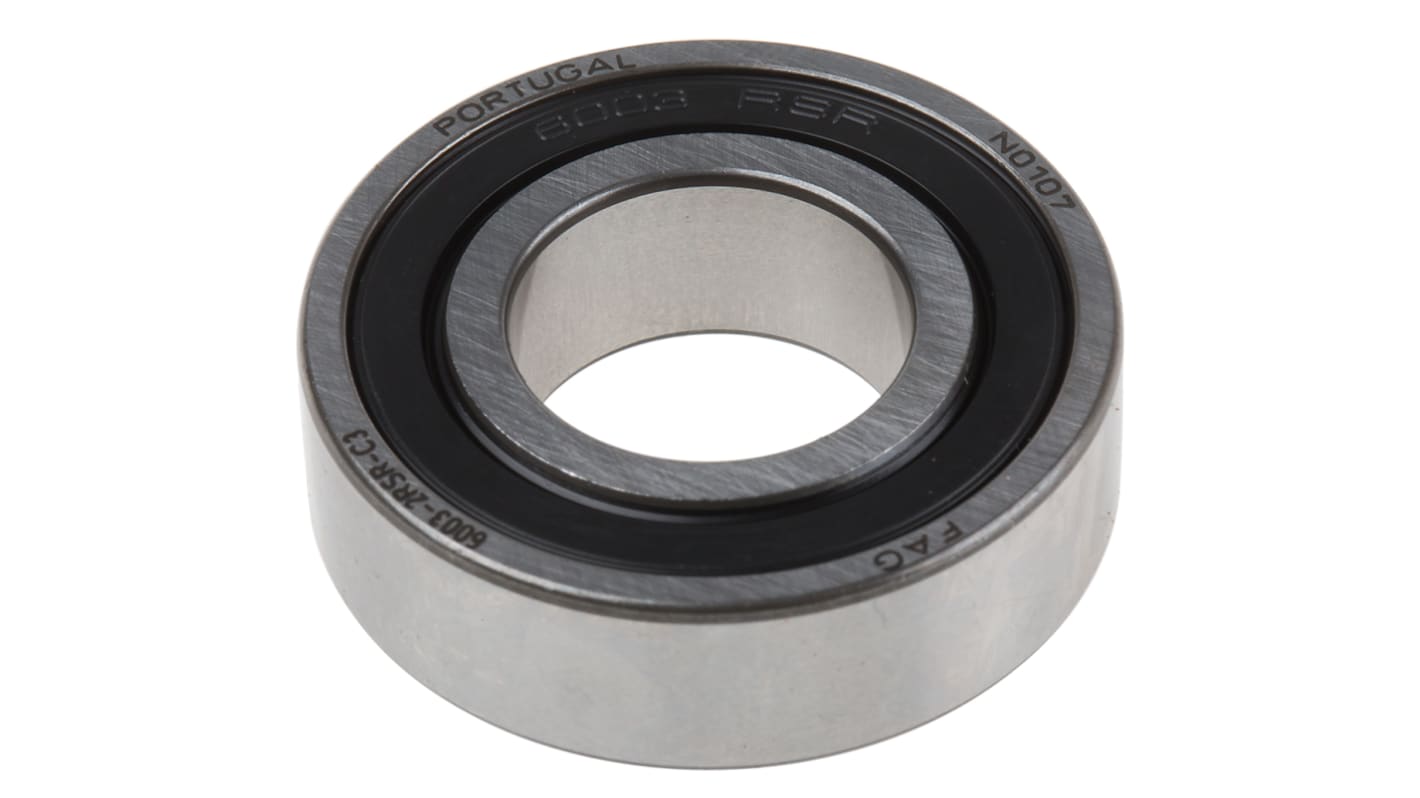

FAG 6003-2RSR-C3 1 Row Ball Bearing - 17 mm ID, 35 mm OD

This ball bearing is a sealed, single-row deep-groove unit designed to support rotating shafts in automation, electronics and mechanical assemblies. It combines steel rolling elements with a steel cage and 60 race material to provide continuous radial support while limiting lubricant loss in enclosed environments. The bearing's parallel bore and sealed end configuration help maintain performance in applications where contamination control is important.

• Sealed ends prevent ingress and retain lubrication
• Steel rolling elements deliver consistent fatigue life
• Steel cage maintains ring-centred ball spacing
• C3 internal clearance accommodates thermal expansion
• Dynamic rating 6.4 kN enables sustained radial loading
• Limiting speed 11,800 r/min supports high-speed operation

• Suitable for precision motors used in automation equipment
• Ideal for spindle support in small electrical drives
• Used with DC and stepper motors in electronics assemblies
• Can be used for idler shafts in mechanical conveyors
• Used for Compact gearboxes in industrial machinery

The bearing offers a static load rating of 3.25 kN, appropriate for light-to-moderate stationary loads during assembly or shutdown.

The C3 clearance provides extra internal radial play to accommodate shaft expansion and slight misalignment without excessive preload.

The races use a specified 60 material and the rolling elements are steel, while the cage is also steel for matched thermal and mechanical behaviour.

The sealed construction reduces the need for frequent re-lubrication by keeping contaminants out and retaining grease under typical operating conditions.
