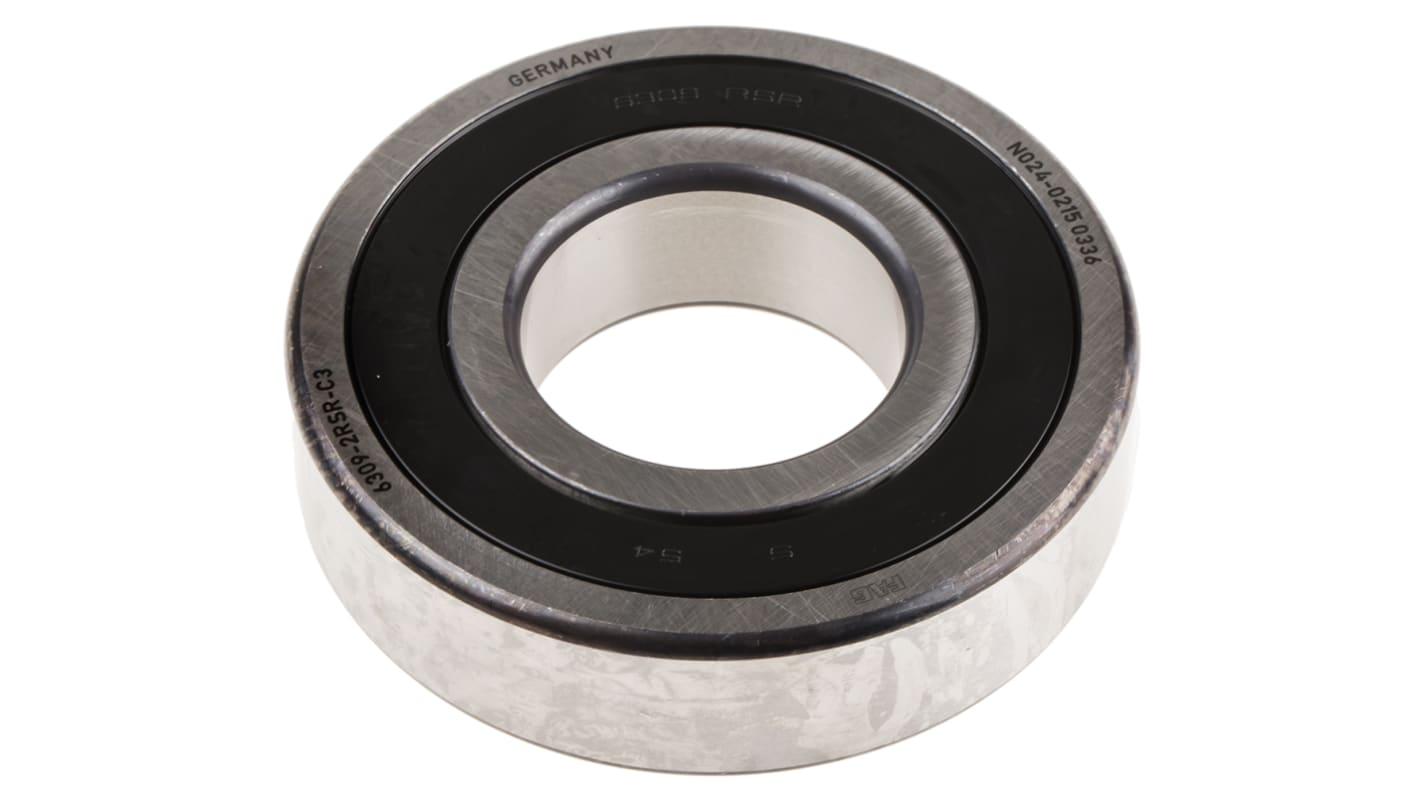

FAG 6309-2RSR-C3 Single Row Deep Groove Ball Bearing- Both Sides Sealed 45mm I.D, 100mm O.D
- RS Stock No.:
- 137-1451
- Mfr. Part No.:
- 6309-2RSR-C3
- Brand:
- FAG
Bulk discount available
Subtotal (1 unit)*
£30.62
(exc. VAT)
£36.74
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 20 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £30.62 |
| 5 - 9 | £29.41 |
| 10 - 24 | £28.79 |
| 25 + | £28.17 |
*price indicative
- RS Stock No.:
- 137-1451
- Mfr. Part No.:
- 6309-2RSR-C3
- Brand:
- FAG
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Inside Diameter | 45mm | |
| Outside Diameter | 100mm | |
| Race Width | 25mm | |
| Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
| Sealing Arrangement | Both Sides Sealed | |
| Bearing Clearance | C3 | |
| Material | Steel | |
| Ball Material | Steel | |
| Cage Material | Steel | |
| Number of Rows | 1 | |
| Static Load Rating | 31.5kN | |
| Dynamic Load Rating | 56kN | |
| Bore Type | Parallel | |
| Bearing Series | 3 Medium | |
| Race Type | Plain | |
| Partial Bearing Code | 6309 | |
Select all | ||
|---|---|---|
Brand FAG | ||
Inside Diameter 45mm | ||
Outside Diameter 100mm | ||
Race Width 25mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Both Sides Sealed | ||
Bearing Clearance C3 | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Steel | ||
Number of Rows 1 | ||
Static Load Rating 31.5kN | ||
Dynamic Load Rating 56kN | ||
Bore Type Parallel | ||
Bearing Series 3 Medium | ||
Race Type Plain | ||
Partial Bearing Code 6309 | ||
