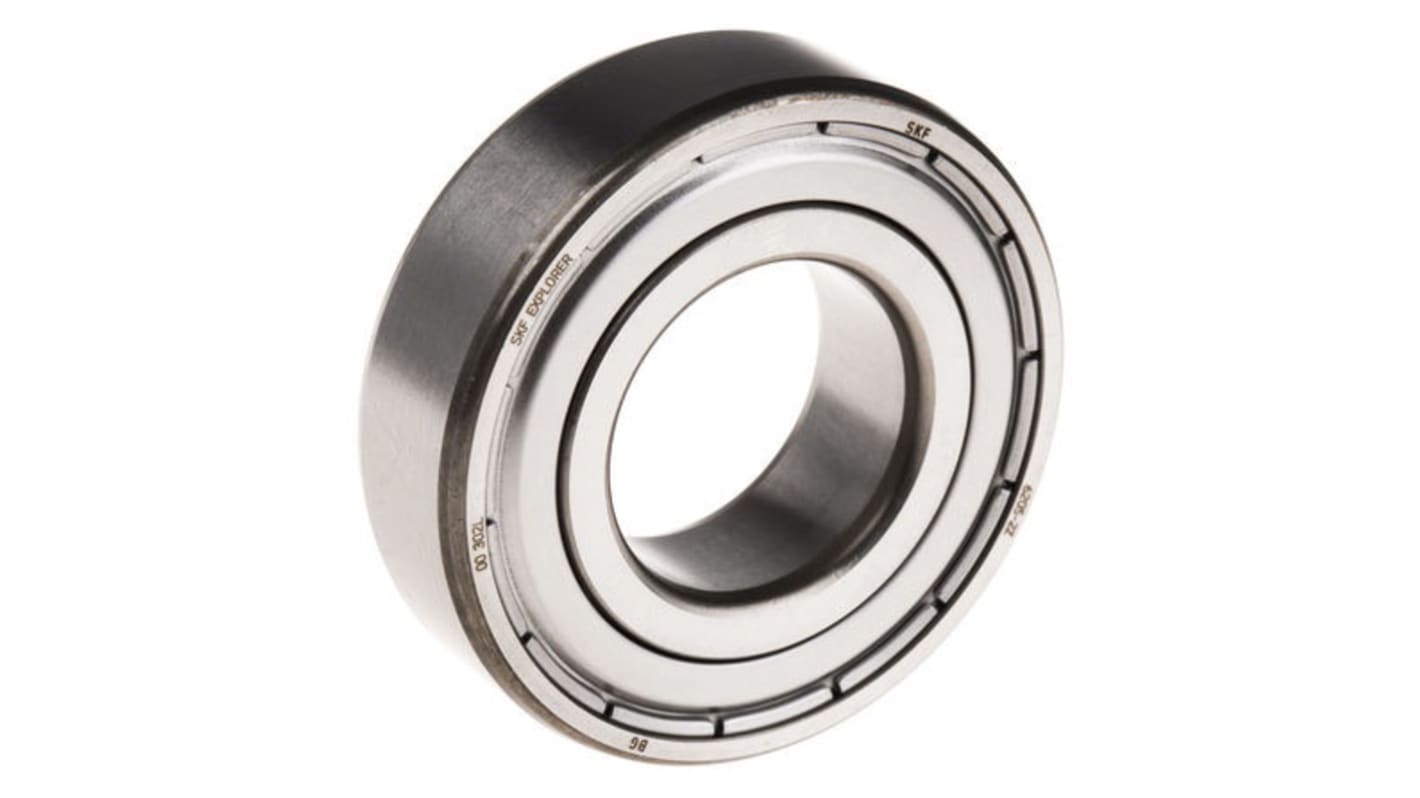

SKF 6004-2Z/C3GJN Single Row Deep Groove Ball Bearing- Both Sides Shielded 20mm I.D, 42mm O.D
- RS Stock No.:
- 123-4812
- Mfr. Part No.:
- 6004-2Z/C3GJN
- Brand:
- SKF
Bulk discount available
Subtotal (1 unit)*
£13.25
(exc. VAT)
£15.90
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 21 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £13.25 |
5 - 9 | £12.70 |
10 - 24 | £12.44 |
25 + | £12.18 |
*price indicative
- RS Stock No.:
- 123-4812
- Mfr. Part No.:
- 6004-2Z/C3GJN
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 20mm | |
Outside Diameter | 42mm | |
Race Width | 12mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Both Sides Shielded | |
Bearing Clearance | C3 | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 5kN | |
Dynamic Load Rating | 9.95kN | |
Bore Type | Parallel | |
Bearing Series | 0 Extra Light | |
Race Type | Plain | |
Partial Bearing Code | 6004 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 20mm | ||
Outside Diameter 42mm | ||
Race Width 12mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Both Sides Shielded | ||
Bearing Clearance C3 | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 5kN | ||
Dynamic Load Rating 9.95kN | ||
Bore Type Parallel | ||
Bearing Series 0 Extra Light | ||
Race Type Plain | ||
Partial Bearing Code 6004 | ||
- COO (Country of Origin):
- IT
SKF Ball Bearing, Plain-Race, Deep-Groove, 20mm ID, 42mm OD - 6004-2Z/C3GJN
This deep-groove ball bearing from SKF offers superior dimensional stability and durability in extreme industrial settings. Its structural integrity is achieved through a unique heat-treatment process, while its highly homogeneous steel composition provides extra strength. As it's sealed, it uses less grease than open-ended alternatives, boosting productivity by extending the time between maintenance intervals. This versatile bearing is a suitable option for supporting both radial and axial loads, and it's capable of achieving high rotational speeds as it generates minimal vibration.
• Wide operating temperature range of -30°C to +150°C for compatibility with demanding conditions
• Shielded on both sides to help prevent lubrication from leaking and reduce pollution and wastage
• Low noise, so enhances the quiet operation of machinery
• Long service life to increase the efficiency of your system
• Shielded on both sides to help prevent lubrication from leaking and reduce pollution and wastage
• Low noise, so enhances the quiet operation of machinery
• Long service life to increase the efficiency of your system
Applications
• Wind energy generation
• Material handling
• Textile and printing industries
• Hoist, cranes and winders
• Material handling
• Textile and printing industries
• Hoist, cranes and winders
What material is this bearing's cage made from?
This bearing has a glass-reinforced polyamide cage. This material has a high-speed capability combined with a lower sensitivity to poor lubrication, which boosts the bearing's performance.
