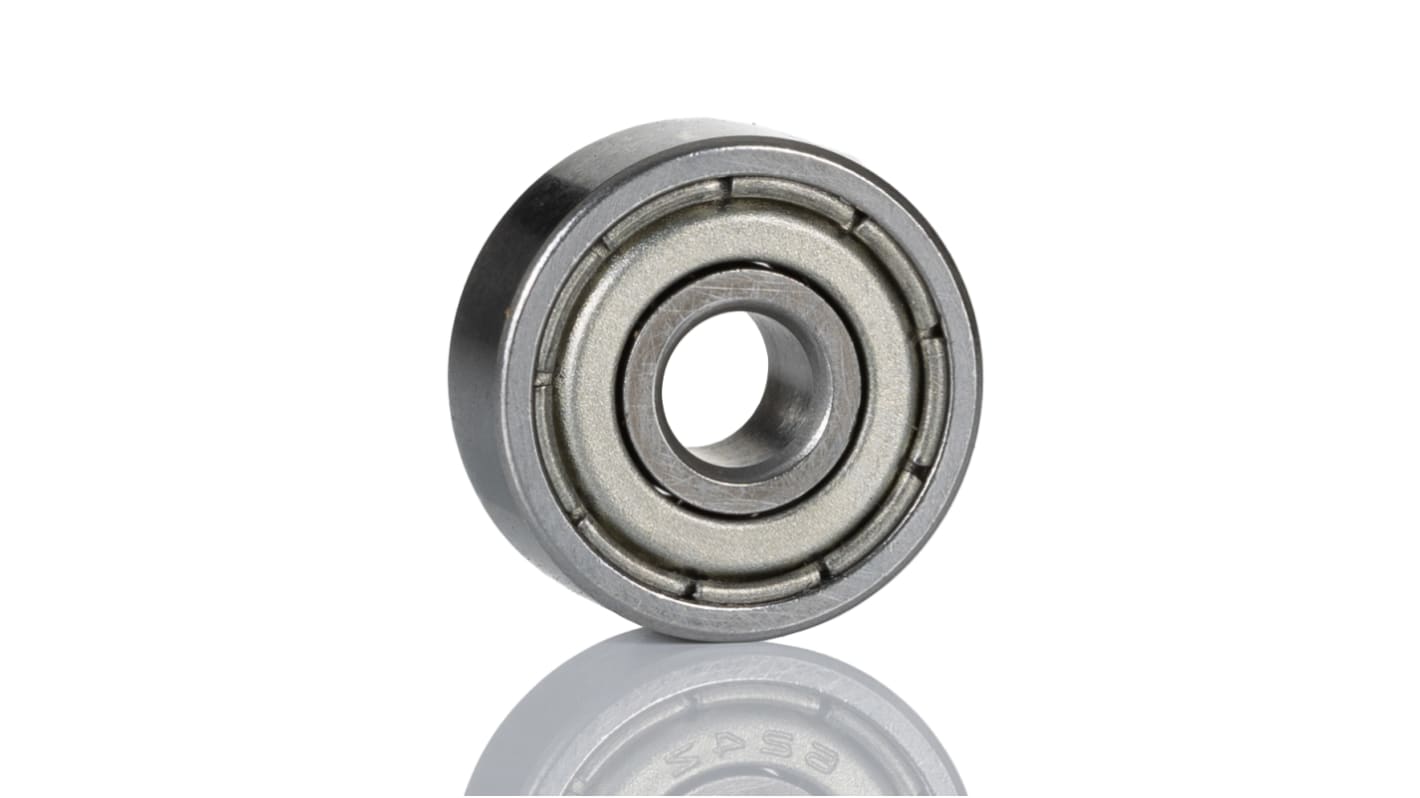

RS PRO 6004-2Z 1 Row Ball Bearing - 20 mm ID, 42 mm OD
- RS Stock No.:
- 261-2593
- Mfr. Part No.:
- 6004-2Z
- Brand:
- RS PRO
Subtotal (1 pack of 5 units)*
£15.90
(exc. VAT)
£19.10
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 35 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £3.18 | £15.90 |
*price indicative
- RS Stock No.:
- 261-2593
- Mfr. Part No.:
- 6004-2Z
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Ball Bearing | |
| Inside Diameter | 20 mm | |
| Outside Diameter | 42 mm | |
| Race Width | 12mm | |
| Race Material | Steel | |
| Cage Material | Steel | |
| Ball Material | Steel | |
| End Type | Closed | |
| Number of Rows | 1 | |
| Static Load Rating | 4.545kN | |
| Internal Clearance | CN | |
| Dynamic Load Rating | 9.63kN | |
| Standards/Approvals | No | |
| Bore Type | Parallel | |
| Series | 6004-2Z | |
| Limiting Speed | 19000rpm | |
| Race Type | Plain | |
| Bearing Type | Single Row Deep Groove Ball | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Ball Bearing | ||
Inside Diameter 20 mm | ||
Outside Diameter 42 mm | ||
Race Width 12mm | ||
Race Material Steel | ||
Cage Material Steel | ||
Ball Material Steel | ||
End Type Closed | ||
Number of Rows 1 | ||
Static Load Rating 4.545kN | ||
Internal Clearance CN | ||
Dynamic Load Rating 9.63kN | ||
Standards/Approvals No | ||
Bore Type Parallel | ||
Series 6004-2Z | ||
Limiting Speed 19000rpm | ||
Race Type Plain | ||
Bearing Type Single Row Deep Groove Ball | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- CN
Small Pack Size: 619-0424
Large Pack Size: 261-2593
RS PRO Metric Shielded Ball Bearings
RS PRO metric shielded ball bearings are a type of ball bearing that is used in a wide range of mechanical applications, such as motors, pumps, and conveyors. These bearings are designed to provide smooth and efficient rotation of shafts by reducing friction and wear between the moving parts. RS PRO metric shielded ball bearings are single row, fitted with two metal shields to prevent ingress of dirt, and foreign matter, plus accommodate radial loads and axial loads in both directions.
Features and Benefits
Applications
FAQs
What are deep groove ball bearings?
These are the most popular type of bearings and consist of an inner ring, outer ring, cage and ball bearings. The bearings have deep raceway grooves. These types of bearings deliver high performance and high load capacity.
Why use shielded ball bearings?
Ball bearings that spin at high speeds require lubrication and a clean environment by having the ball bearings shielded this offers better protection against dirt and grease therefore the ball bearings have a longer lifespan.
