SKF 6004-2Z Single Row Deep Groove Ball Bearing- Both Sides Shielded 20mm I.D, 42mm O.D
- RS Stock No.:
- 286-7647
- Mfr. Part No.:
- 6004-2Z
- Brand:
- SKF
Bulk discount available
Subtotal (1 unit)*
£4.87
(exc. VAT)
£5.84
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 376 unit(s) shipping from 02 October 2025
- Plus 112 unit(s) shipping from 02 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £4.87 |
5 - 9 | £4.67 |
10 - 24 | £4.57 |
25 + | £4.46 |
*price indicative
- RS Stock No.:
- 286-7647
- Mfr. Part No.:
- 6004-2Z
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 20mm | |
Outside Diameter | 42mm | |
Race Width | 12mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Both Sides Shielded | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 5kN | |
Dynamic Load Rating | 9.95kN | |
Bore Type | Parallel | |
Bearing Series | 0 Extra Light | |
Race Type | Plain | |
Partial Bearing Code | 6004 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 20mm | ||
Outside Diameter 42mm | ||
Race Width 12mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Both Sides Shielded | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 5kN | ||
Dynamic Load Rating 9.95kN | ||
Bore Type Parallel | ||
Bearing Series 0 Extra Light | ||
Race Type Plain | ||
Partial Bearing Code 6004 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- IT

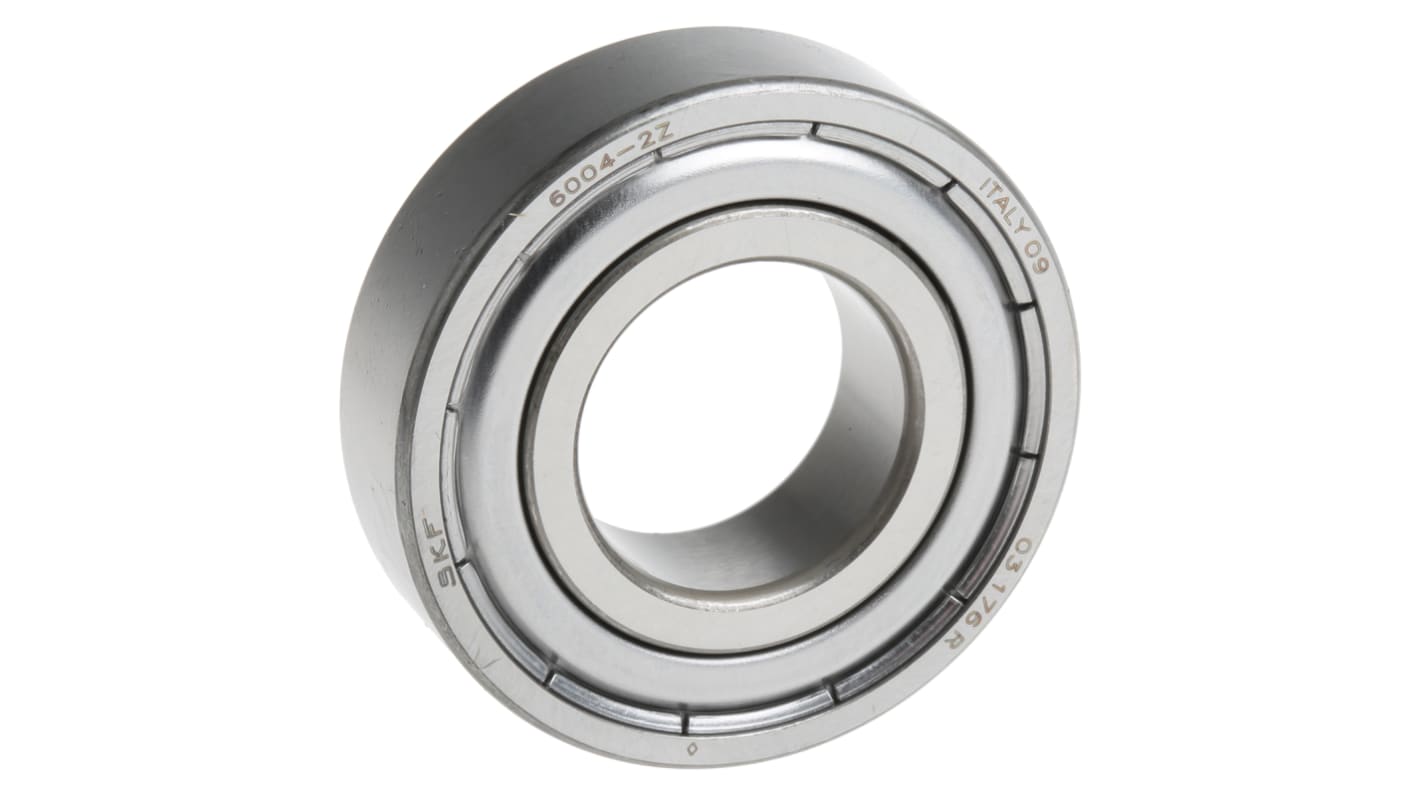

SKF Shielded Deep-Groove Ball Bearing, 20mm ID, 42mm OD - 6004-2Z
When you need to handle radial and axial loads at high speeds of up to 19,000rpm (rotations per minute), choose this SKF deep-groove ball bearing. It features finely graded steel balls and a smooth finish that keeps any friction, noise and vibrations to a minimum. The parallel bore makes mounting onto the shaft simple. As the bearing is pre-filled with lubricant, minimal maintenance is needed once it's mounted. To ensure durability and resistance to corrosion, the bearing is made of a steel material that will hold up under harsh conditions.
• Shielded end to keep lubricant in and dirt or debris out
• Slim width of 12mm for installation in tight spaces
• Static load rating of 5kN and dynamic load rating of 9.95kN to support heavy-duty loads
• Slim width of 12mm for installation in tight spaces
• Static load rating of 5kN and dynamic load rating of 9.95kN to support heavy-duty loads
Applications
• Food processing and bottling machinery
• Washing machines and dryers
• Medical and pharmaceutical industry
• Washing machines and dryers
• Medical and pharmaceutical industry
Can I use this bearing in hot environments?
This bearing is heat stabilised to temperatures of up to +120°C, so it can withstand use in heat-intensive industrial environments. Its metal shields also ensure better heat resistance than sealed ends.
