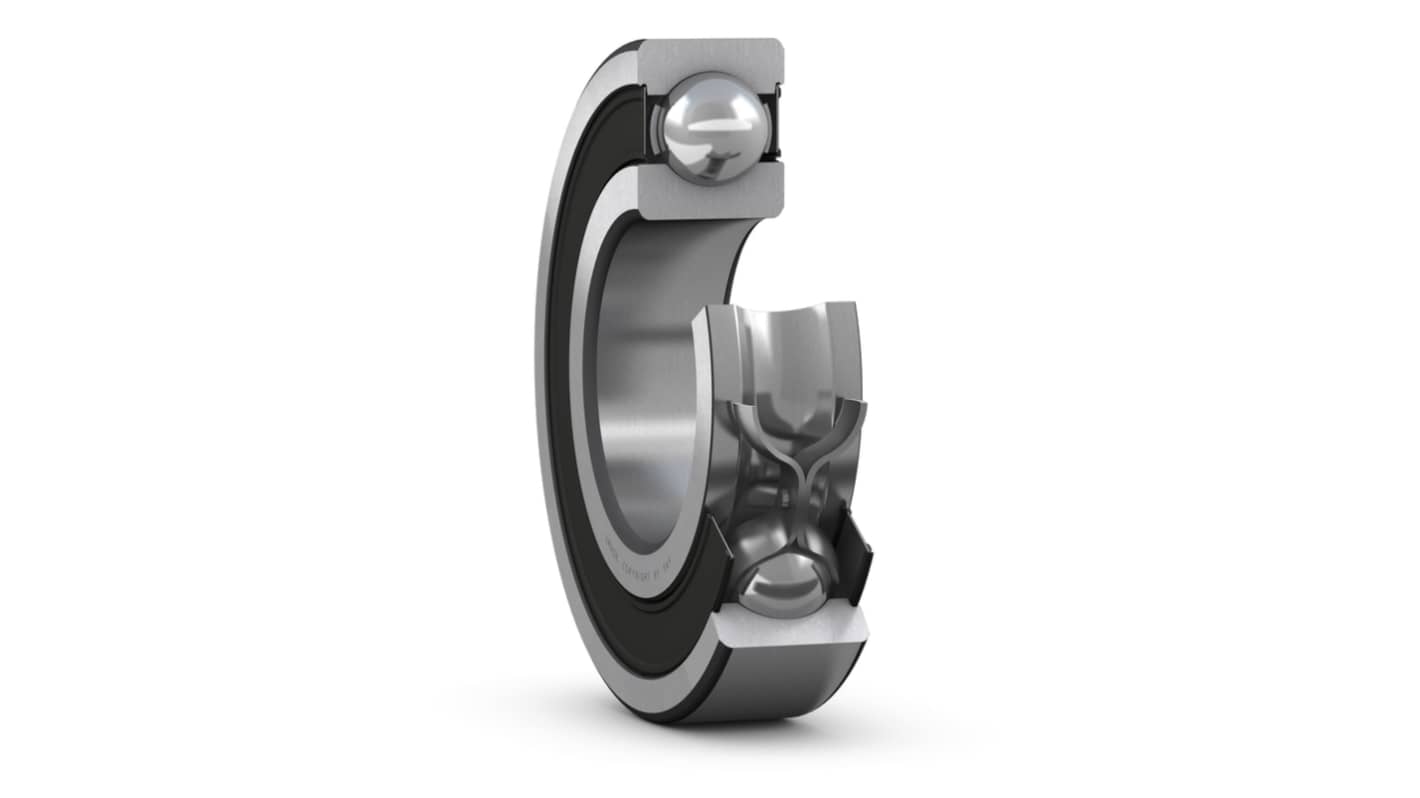

SKF 6024-2Z/C3 1 Row Deep Groove Ball Bearing - 120 mm ID, 180 mm OD
- RS Stock No.:
- 585-914
- Mfr. Part No.:
- 6024-2Z/C3
- Brand:
- SKF
Subtotal (1 pack of 2 units)*
£358.80
(exc. VAT)
£430.56
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £358.80 | £179.40 |
*price indicative
- RS Stock No.:
- 585-914
- Mfr. Part No.:
- 6024-2Z/C3
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Deep Groove Ball Bearing | |
| Inside Diameter | 120 mm | |
| Outside Diameter | 180 mm | |
| Race Width | 28mm | |
| Ball Material | Bearing Steel | |
| Cage Material | Sheet Metal | |
| Race Material | Bearing Steel | |
| Number of Rows | 1 | |
| Static Load Rating | 80kN | |
| Internal Clearance | C3 | |
| Dynamic Load Rating | 88.4kN | |
| Series | 6024 | |
| Standards/Approvals | RoHS | |
| Bore Type | Cylindrical | |
| Limiting Speed | 3800rpm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Race Type | Deep Grooved | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Deep Groove Ball Bearing | ||
Inside Diameter 120 mm | ||
Outside Diameter 180 mm | ||
Race Width 28mm | ||
Ball Material Bearing Steel | ||
Cage Material Sheet Metal | ||
Race Material Bearing Steel | ||
Number of Rows 1 | ||
Static Load Rating 80kN | ||
Internal Clearance C3 | ||
Dynamic Load Rating 88.4kN | ||
Series 6024 | ||
Standards/Approvals RoHS | ||
Bore Type Cylindrical | ||
Limiting Speed 3800rpm | ||
Bearing Type Single Row Deep Groove Ball | ||
Race Type Deep Grooved | ||
- COO (Country of Origin):
- FR
The SKF High Performance Bearing is engineered to deliver exceptional reliability and durability in even the most demanding applications. Created for engineers and mechanics who value performance, this product is ideal for use in a range of industries including automotive, manufacturing, and aerospace. Its advanced design features advanced materials that withstand extreme conditions while maintaining low friction throughout operation. The precision engineering ensures optimal load distribution, resulting in extended service life and minimal maintenance requirements. As an essential component in your machinery, this bearing maximises efficiency and improves the overall productivity of your operations.
Designed with double shields for superior contamination resistance
Offers reduced friction for improved operational efficiency
Engineered for extended durability under heavy load conditions
Versatile application across multiple industrial environments
Streamlined design enhances user experience during installation
Minimal maintenance requirements ensure hassle free operation
Compatible with various machinery types for extensive usability
