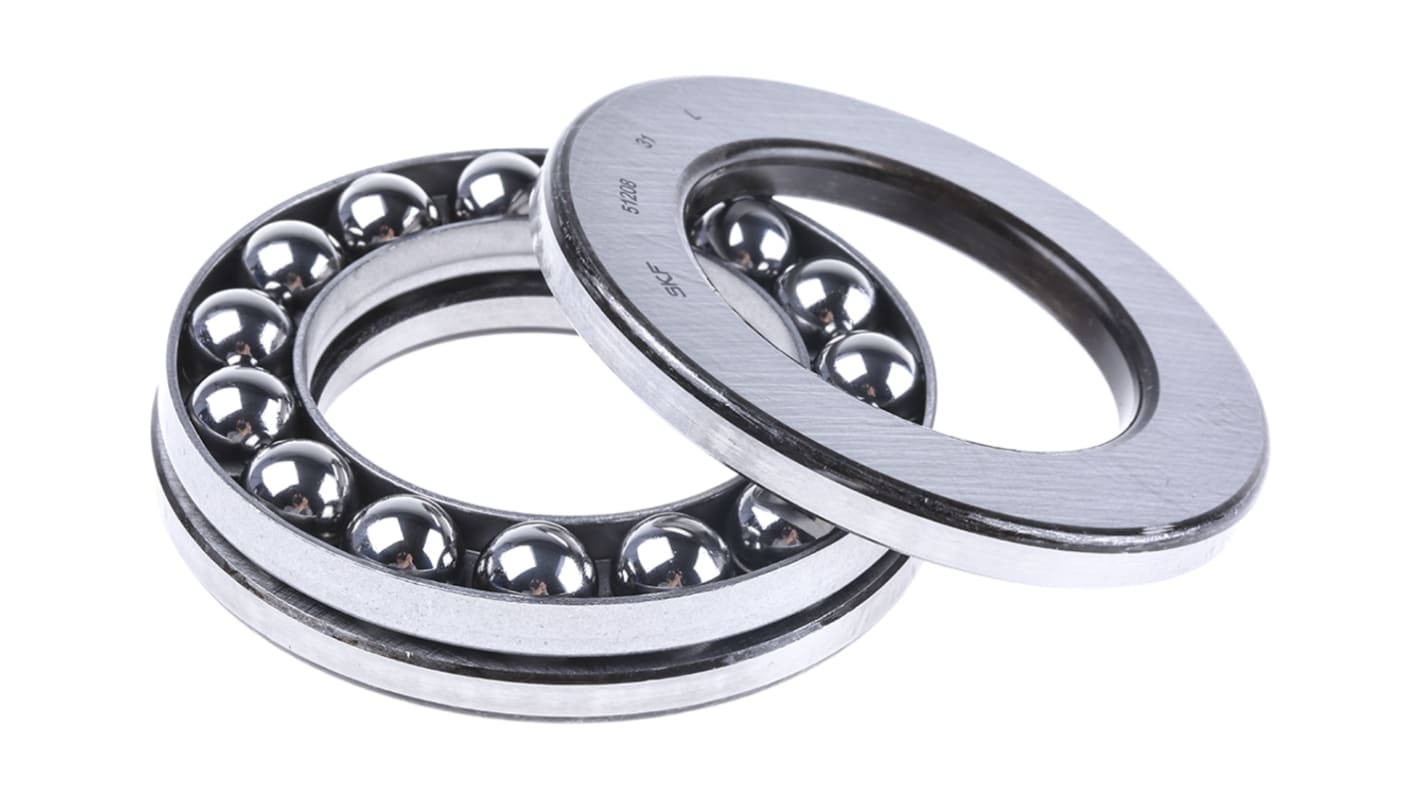

SKF 51208 Thrust Ball Bearing- Open Type 40mm I.D, 68mm O.D
- RS Stock No.:
- 506-337
- Mfr. Part No.:
- 51208
- Brand:
- SKF
Bulk discount available
Subtotal (1 unit)*
£38.09
(exc. VAT)
£45.71
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 4 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £38.09 |
5 - 9 | £36.55 |
10 - 24 | £35.80 |
25 + | £35.04 |
*price indicative
- RS Stock No.:
- 506-337
- Mfr. Part No.:
- 51208
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 40mm | |
Outside Diameter | 68mm | |
Race Width | 19mm | |
Ball Bearing Type | Thrust Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 96.5kN | |
Dynamic Load Rating | 44.2kN | |
Bore Type | Parallel | |
Bearing Series | 1 Extra Light Thrust | |
Flange Outside Diameter | 68mm | |
Partial Bearing Code | 51208 | |
Race Type | Plain | |
Race Material | Steel | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 40mm | ||
Outside Diameter 68mm | ||
Race Width 19mm | ||
Ball Bearing Type Thrust Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 96.5kN | ||
Dynamic Load Rating 44.2kN | ||
Bore Type Parallel | ||
Bearing Series 1 Extra Light Thrust | ||
Flange Outside Diameter 68mm | ||
Partial Bearing Code 51208 | ||
Race Type Plain | ||
Race Material Steel | ||
RoHS Status: Exempt
SKF Ball Bearing, Thrust Bearing Type, 40mm ID, 68mm OD - 51208
Choose this thrust ball bearing from SKF when you need a reliable way of supporting one-directional axial loads. Its handy separable design means you'll find the unit easy to mount or dismount for inspection and maintenance. As its elements are interchangeable, you only have to replace part of the product in case of damage. A sheet metal cage and internal seat work together to ensure the balls inside stay properly aligned, allowing for high limiting speeds of up to 5,300r/min. This means you can trust the component is practical for fast-moving applications.
Features & Benefits
• Balls made of high-carbon bearing steel for hardness and wear resistance
• Dynamic load rating of 44.2kN so withstands substantial forces when in motion
• Balls and washers withstand temperatures up to +125°C for safe use in harsh environments
• Dynamic load rating of 44.2kN so withstands substantial forces when in motion
• Balls and washers withstand temperatures up to +125°C for safe use in harsh environments
Applications
• Aerospace engineering
• Piercing mills
• Mining
• Agricultural equipment
• Piercing mills
• Mining
• Agricultural equipment
What does this product's interference fit mean?
A ground bore on the shaft washers helps you achieve a secure interference fit. This prevents bearing creep that can otherwise cause wear to your equipment's surfaces and shafts.
