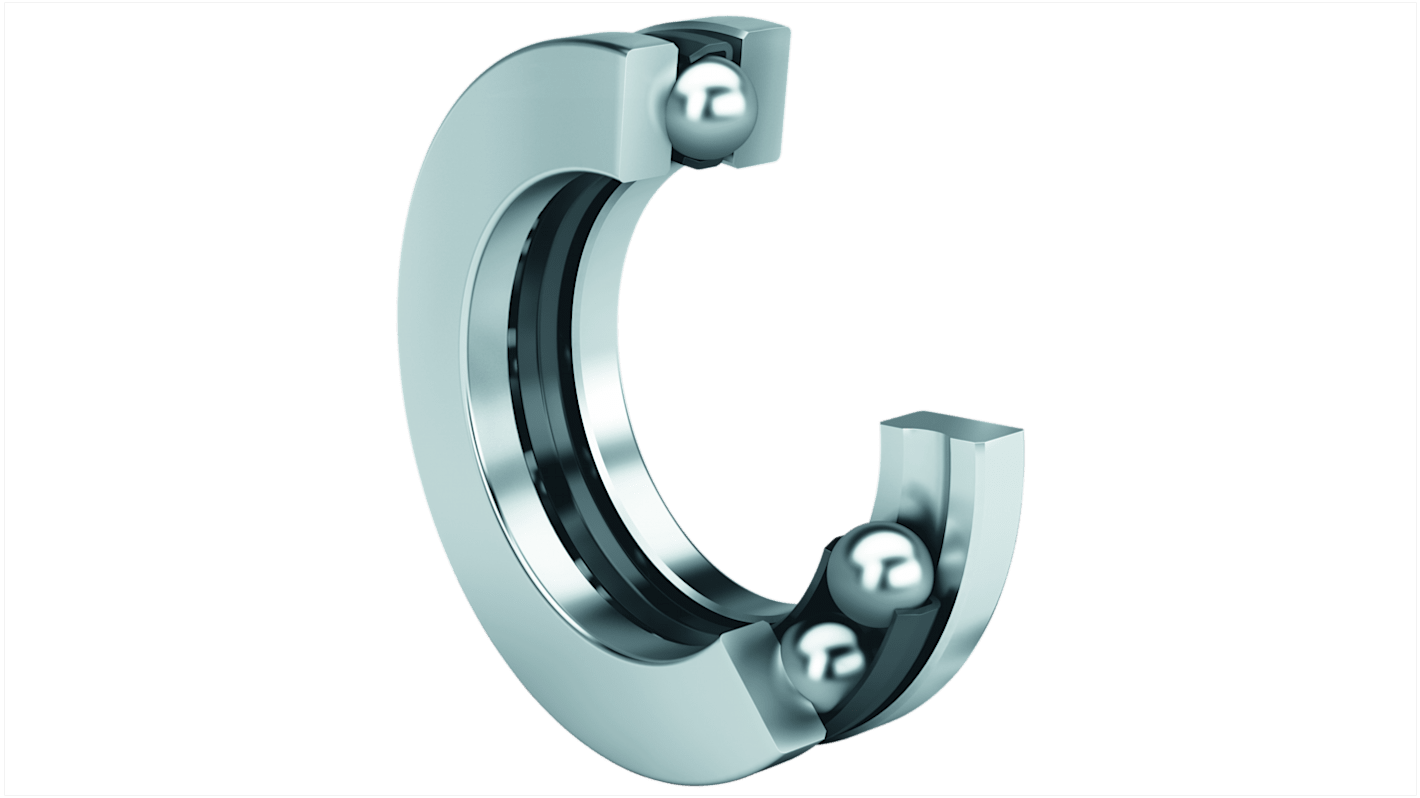

FAG 51208 Thrust Ball Bearing- Open Type 40mm I.D, 68mm O.D
- RS Stock No.:
- 260-0418
- Mfr. Part No.:
- 51208
- Brand:
- FAG
Subtotal (1 unit)*
£29.44
(exc. VAT)
£35.33
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 2 unit(s) shipping from 02 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £29.44 |
*price indicative
- RS Stock No.:
- 260-0418
- Mfr. Part No.:
- 51208
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | FAG | |
Inside Diameter | 40mm | |
Outside Diameter | 68mm | |
Race Width | 19mm | |
Ball Bearing Type | Thrust Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Steel | |
Number of Rows | 1 | |
Static Load Rating | 97kN | |
Dynamic Load Rating | 44kN | |
Bore Type | Parallel | |
Bearing Series | 1 Extra Light Thrust | |
Race Type | Plain | |
Partial Bearing Code | 51208 | |
Select all | ||
---|---|---|
Brand FAG | ||
Inside Diameter 40mm | ||
Outside Diameter 68mm | ||
Race Width 19mm | ||
Ball Bearing Type Thrust Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Steel | ||
Number of Rows 1 | ||
Static Load Rating 97kN | ||
Dynamic Load Rating 44kN | ||
Bore Type Parallel | ||
Bearing Series 1 Extra Light Thrust | ||
Race Type Plain | ||
Partial Bearing Code 51208 | ||
- COO (Country of Origin):
- CZ
The FAG axial deep groove ball bearing has 40 mm inner diameter and 19 mm height with 0.05 minimum load factor.
Operating temperature -30 to 150 °C
