SKF 3201 A-2RS1TN9/MT33 2 Row Ball Bearing - 12 mm ID, 32 mm OD 15.9 mm Race Width
- RS Stock No.:
- 505-586
- Mfr. Part No.:
- 3201 A-2RS1TN9/MT33
- Brand:
- SKF
Bulk discount available
Subtotal (1 unit)*
£41.68
(exc. VAT)
£50.02
(inc. VAT)
FREE delivery for orders over £60.00
Limited stock
- Plus 14 left, shipping from 27 April 2026
- Plus 42 left, shipping from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £41.68 |
| 5 - 9 | £40.00 |
| 10 - 24 | £39.18 |
| 25 + | £38.35 |
*price indicative
- RS Stock No.:
- 505-586
- Mfr. Part No.:
- 3201 A-2RS1TN9/MT33
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Ball Bearing | |
| Inside Diameter | 12mm | |
| Outside Diameter | 32mm | |
| Race Width | 15.9mm | |
| Cage Material | Non-Metallic | |
| Ball Material | Steel | |
| End Type | Sealed | |
| Number of Rows | 2 | |
| Contact Angle | 30° | |
| Static Load Rating | 5.6kN | |
| Internal Clearance | CN | |
| Dynamic Load Rating | 10.1kN | |
| Series | 2 Light | |
| Standards/Approvals | No | |
| Bore Type | Parallel | |
| Limiting Speed | 15000rpm | |
| Race Type | Plain | |
| Bearing Type | Double Row Angular Contact Ball | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Ball Bearing | ||
Inside Diameter 12mm | ||
Outside Diameter 32mm | ||
Race Width 15.9mm | ||
Cage Material Non-Metallic | ||
Ball Material Steel | ||
End Type Sealed | ||
Number of Rows 2 | ||
Contact Angle 30° | ||
Static Load Rating 5.6kN | ||
Internal Clearance CN | ||
Dynamic Load Rating 10.1kN | ||
Series 2 Light | ||
Standards/Approvals No | ||
Bore Type Parallel | ||
Limiting Speed 15000rpm | ||
Race Type Plain | ||
Bearing Type Double Row Angular Contact Ball | ||
RoHS Status: Exempt

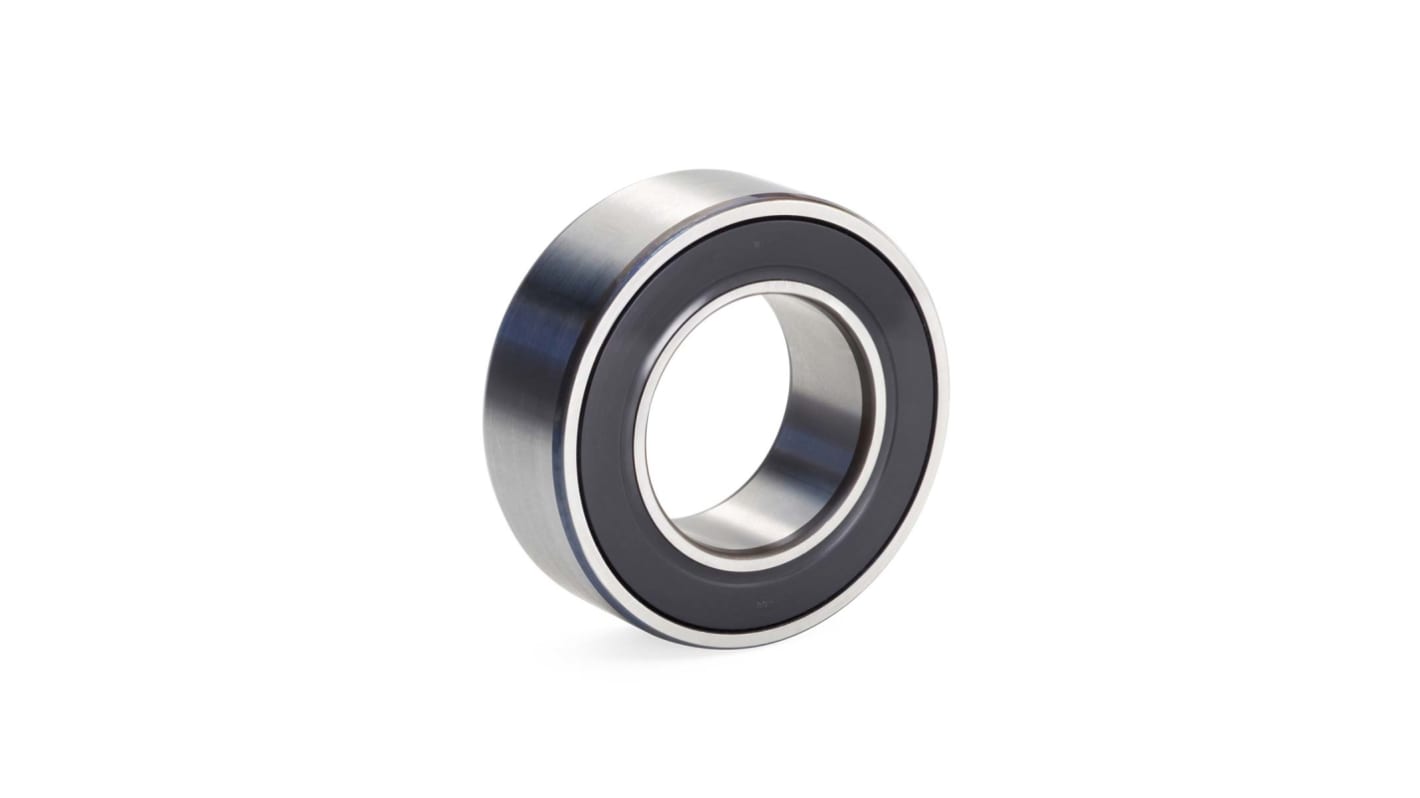

SKF Angular Contact Ball Bearing, Plain Race Type, 12 mm ID - 3201 A-2RS1TN9/MT33
These double-row angular contact ball bearings from SKF are ideal for applications where precision and high running accuracy are essential. They're well-suited to applications that experience high rotating speeds, as well as simultaneously acting radial and axial loads. These components are precision-manufactured for strength and robustness, and they offer very low levels of vibration. Advanced raceways mean minimal heat is generated, enabling quiet, cool running. These ball bearings are also pre-greased for maintenance-free lifetime usage.
• Parallel cage bore type
• Cage made from fibreglass reinforced nylon 66
• Dynamic load rating of 10.1 kN
• Inner diameter of 12 mm
• Outer diameter of 32 mm
• Plain race type
• Sealed end type
• Race width of 15.9 mm
• Static load rating of 5.6 kN
Application information
• Energy and utilities industry
• Chemical processing machinery
• Automotive industry
What are the main advantages of double-row angular contact ball bearings?
Double-row angular contact ball bearings can accept axial and radial loads in either direction. They're also a way to save space if you find two single-row ball bearings, positioned in a back-to-back arrangement, take up too much axial room.
