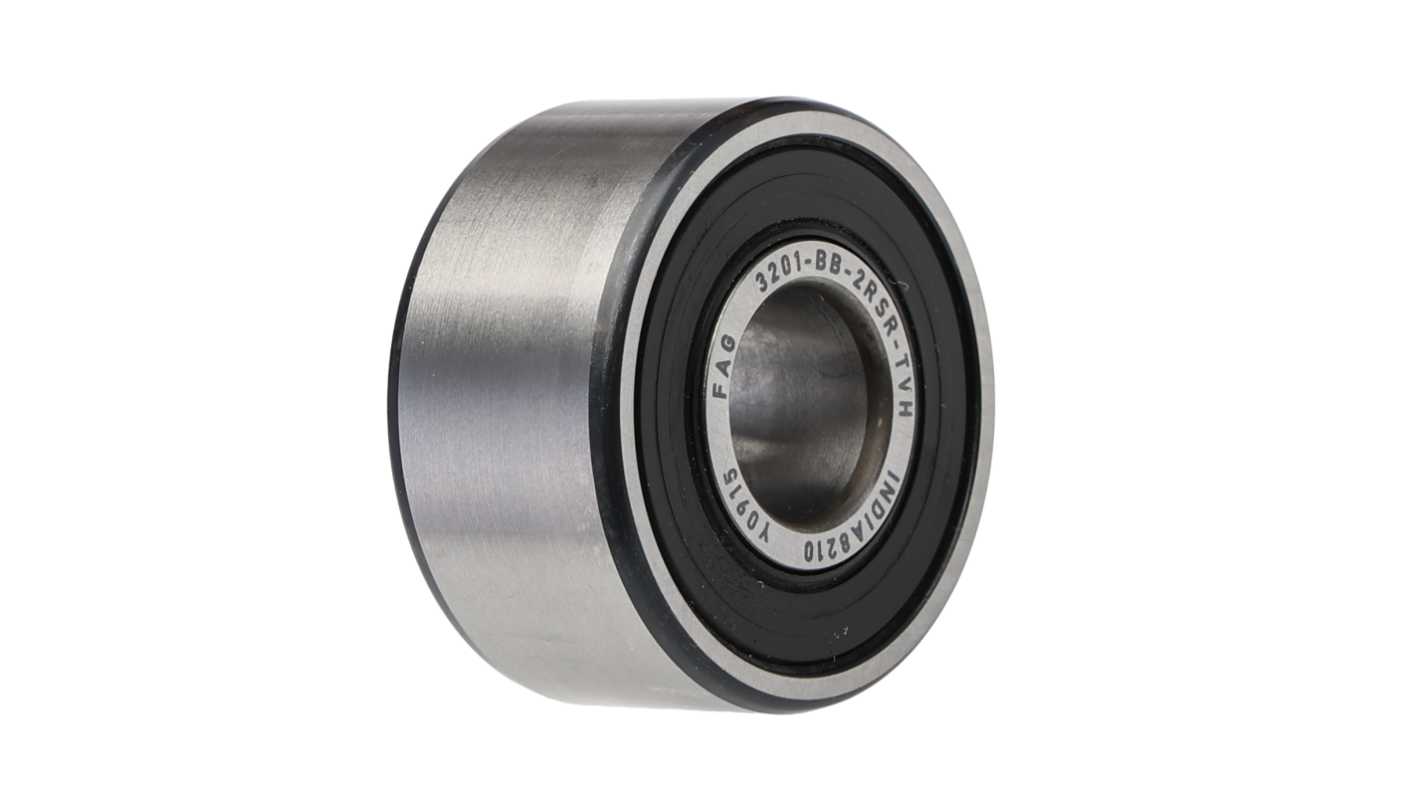

FAG 3201-BB-2RSR-TVH 2 Row Ball Bearing - 12 mm ID, 32 mm OD 15.9 mm Race Width
- RS Stock No.:
- 260-0542
- Mfr. Part No.:
- 3201-BB-2RSR-TVH
- Brand:
- FAG
Subtotal (1 unit)*
£42.54
(exc. VAT)
£51.05
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 21 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £42.54 |
*price indicative
- RS Stock No.:
- 260-0542
- Mfr. Part No.:
- 3201-BB-2RSR-TVH
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Inside Diameter | 12 mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 32 mm | |
| Race Width | 15.9mm | |
| Race Material | Steel | |
| Cage Material | Steel | |
| Ball Material | Steel | |
| End Type | Sealed | |
| Number of Rows | 2 | |
| Contact Angle | 25° | |
| Internal Clearance | CN | |
| Static Load Rating | 5.8kN | |
| Dynamic Load Rating | 10.5kN | |
| Series | 3201-BB-2RSR-TVH | |
| Standards/Approvals | No | |
| Bore Type | Parallel | |
| Limiting Speed | 15000rpm | |
| Bearing Type | Double Row Angular Contact Ball | |
| Race Type | Plain | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Inside Diameter 12 mm | ||
Product Type Ball Bearing | ||
Outside Diameter 32 mm | ||
Race Width 15.9mm | ||
Race Material Steel | ||
Cage Material Steel | ||
Ball Material Steel | ||
End Type Sealed | ||
Number of Rows 2 | ||
Contact Angle 25° | ||
Internal Clearance CN | ||
Static Load Rating 5.8kN | ||
Dynamic Load Rating 10.5kN | ||
Series 3201-BB-2RSR-TVH | ||
Standards/Approvals No | ||
Bore Type Parallel | ||
Limiting Speed 15000rpm | ||
Bearing Type Double Row Angular Contact Ball | ||
Race Type Plain | ||
RoHS Status: Exempt
- COO (Country of Origin):
- SK
Schaeffler 2 Light Series Ball Bearing, 12mm Inside Diameter, 32mm Outside Diameter - 3201-BB-2RSR-TVH
This ball bearing is designed for precision and efficiency, featuring a double row angular contact configuration. With an inner diameter of 12mm and an outer diameter of 32mm, this product delivers robust performance in demanding applications. The sealing arrangement on both sides enhances durability, making it ideal for use in various industrial sectors.
Features & Benefits
• Features a double row design for higher load capacity
• Built with seals on both sides for protection against contaminants
• Plastic cage that offers reduced friction and lower weight
• Capable of operating within a temperature range of -20°C to 100°C
• Designed for high dynamic and static load ratings for reliability
• Offers a standard CN clearance for general use applications
Applications
• Utilised in automation equipment for increased reliability
• Suitable for robotic systems where precision is crucial
• Implemented in mechanical assemblies requiring high load support
• Employed in electrical where compact size is necessary
How does this ball bearing handle varying load conditions?
It is designed with a high dynamic load rating of 10.5 kN and a static load rating of 5.8 kN, allowing it to manage various load conditions effectively.
What is the significance of the sealing arrangement in this design?
The dual sealing arrangement prevents the ingress of dirt and moisture, significantly extending the bearing's service life in harsh environments.
What is the temperature range for safe operation?
This product can function effectively in temperatures from -20°C up to 100°C, making it suitable for diverse conditions.
How does the plastic cage contribute to performance?
The plastic cage reduces friction and weight, enhancing overall performance and enabling smoother operation under load.
