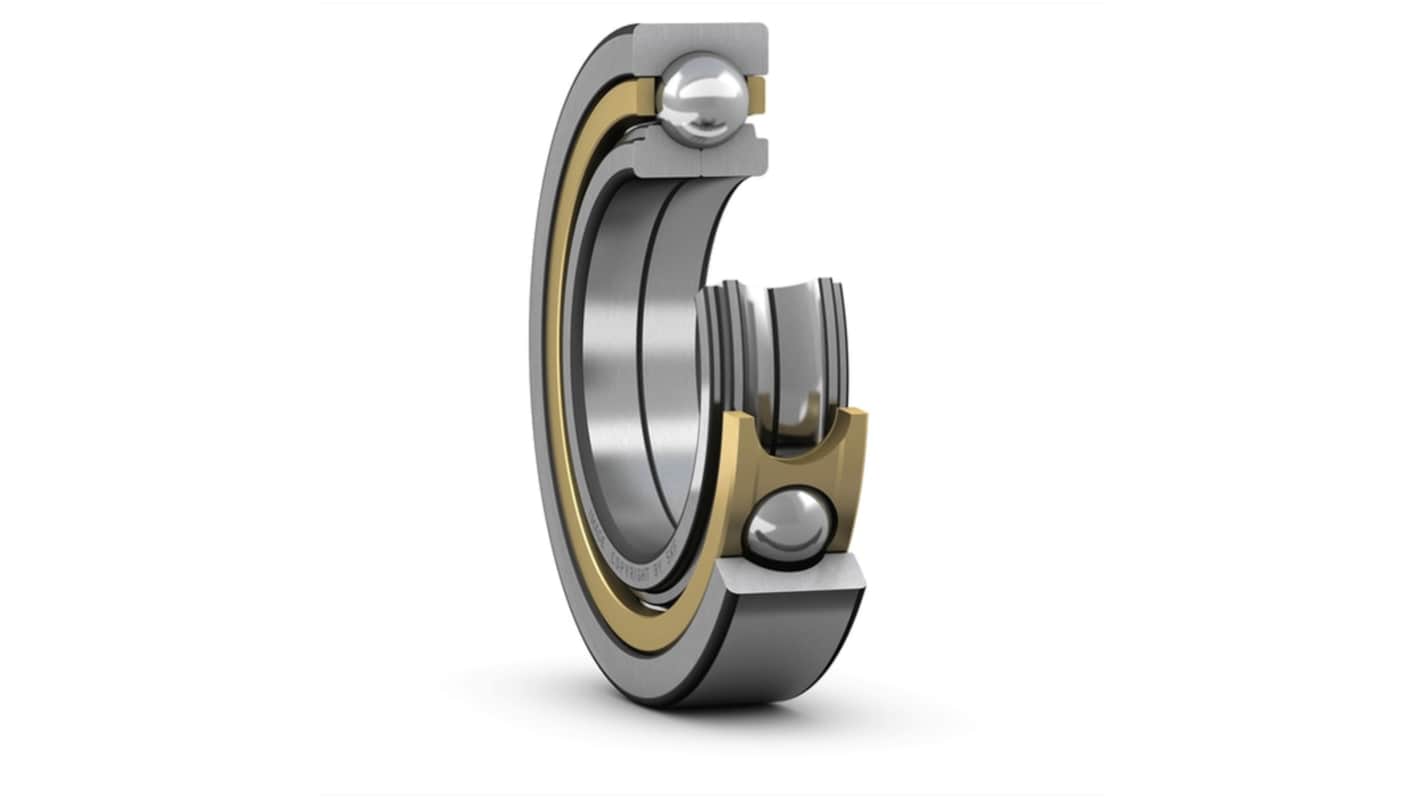

SKF QJ 305 MA/C2L 1 Row Angular Contact Ball Bearing - 25 mm ID, 62 mm OD 17 mm Race Width
- RS Stock No.:
- 465-178
- Mfr. Part No.:
- QJ 305 MA/C2L
- Brand:
- SKF
Subtotal (1 unit)*
£132.66
(exc. VAT)
£159.19
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 02 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £132.66 |
*price indicative
- RS Stock No.:
- 465-178
- Mfr. Part No.:
- QJ 305 MA/C2L
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Angular Contact Ball Bearing | |
| Inside Diameter | 25 mm | |
| Outside Diameter | 62 mm | |
| Race Width | 17mm | |
| Ball Material | Bearing Steel | |
| Cage Material | Machined Brass | |
| Number of Rows | 1 | |
| Contact Angle | 35° | |
| Static Load Rating | 30kN | |
| Dynamic Load Rating | 42.5kN | |
| Standards/Approvals | No | |
| Series | QJ 305 | |
| Limiting Speed | 20000rpm | |
| Bearing Type | Four Point Contact | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Angular Contact Ball Bearing | ||
Inside Diameter 25 mm | ||
Outside Diameter 62 mm | ||
Race Width 17mm | ||
Ball Material Bearing Steel | ||
Cage Material Machined Brass | ||
Number of Rows 1 | ||
Contact Angle 35° | ||
Static Load Rating 30kN | ||
Dynamic Load Rating 42.5kN | ||
Standards/Approvals No | ||
Series QJ 305 | ||
Limiting Speed 20000rpm | ||
Bearing Type Four Point Contact | ||
- COO (Country of Origin):
- AT
The SKF Four point contact ball bearings can accommodate high axial loads in both directions and small radial loads. They can operate at very high speeds and are more suitable than deep groove ball bearings for supporting large axial forces. The outer ring, with ball and cage assembly, can be mounted separately from the two inner ring halves.
High speed capability
Accommodate high axial loads in both directions and small radial loads
Require considerably less axial space than double row angular contact ball bearings
