SKF QJ 209 MA 1 Row Angular Contact Ball Bearing - 45 mm ID, 85 mm OD 19 mm Race Width
- RS Stock No.:
- 464-119
- Mfr. Part No.:
- QJ 209 MA
- Brand:
- SKF
Subtotal (1 unit)*
£115.38
(exc. VAT)
£138.46
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £115.38 |
*price indicative
- RS Stock No.:
- 464-119
- Mfr. Part No.:
- QJ 209 MA
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Angular Contact Ball Bearing | |
| Inside Diameter | 45 mm | |
| Outside Diameter | 85 mm | |
| Race Width | 19mm | |
| Cage Material | Machined Brass | |
| Ball Material | Bearing Steel | |
| Number of Rows | 1 | |
| Static Load Rating | 56kN | |
| Contact Angle | 35° | |
| Dynamic Load Rating | 63kN | |
| Standards/Approvals | No | |
| Series | QJ 209 | |
| Limiting Speed | 14000rpm | |
| Bearing Type | Four Point Contact | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Angular Contact Ball Bearing | ||
Inside Diameter 45 mm | ||
Outside Diameter 85 mm | ||
Race Width 19mm | ||
Cage Material Machined Brass | ||
Ball Material Bearing Steel | ||
Number of Rows 1 | ||
Static Load Rating 56kN | ||
Contact Angle 35° | ||
Dynamic Load Rating 63kN | ||
Standards/Approvals No | ||
Series QJ 209 | ||
Limiting Speed 14000rpm | ||
Bearing Type Four Point Contact | ||
- COO (Country of Origin):
- AT

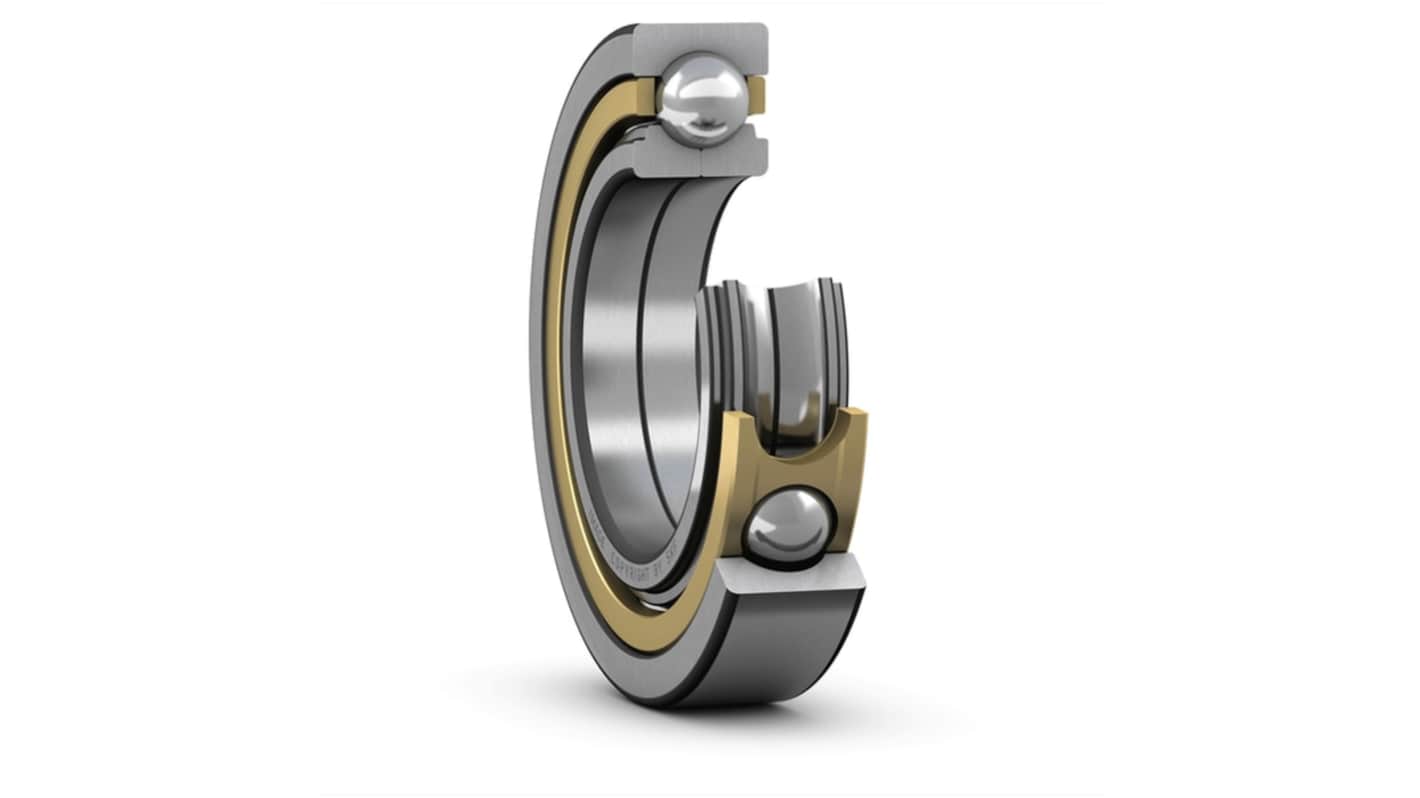

The SKF Four-point contact ball bearings can accommodate high axial loads in both directions and small radial loads. They can operate at very high speeds and are more suitable than deep groove ball bearings for supporting large axial forces. The outer ring, with ball and cage assembly, can be mounted separately from the two inner ring halves.
High-speed capability
Accommodate high axial loads in both directions and small radial loads
Require considerably less axial space than double row angular contact ball bearings
