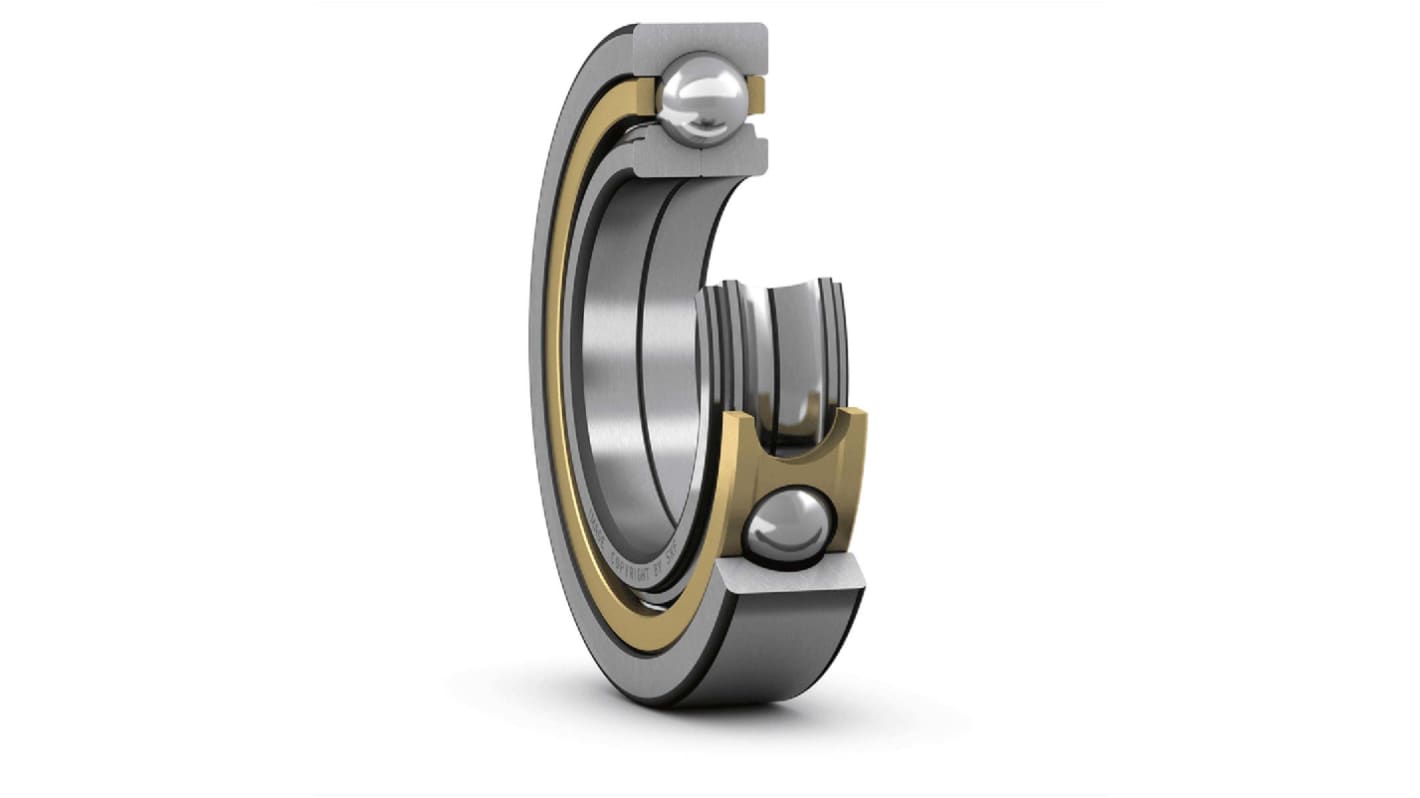

SKF QJ 309 MA Single Row Angular Contact Ball Bearing- Open Type 45mm I.D, 100mm O.D
- RS Stock No.:
- 208-0410
- Mfr. Part No.:
- QJ 309 MA
- Brand:
- SKF
Subtotal (1 unit)*
£168.12
(exc. VAT)
£201.74
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £168.12 |
*price indicative
- RS Stock No.:
- 208-0410
- Mfr. Part No.:
- QJ 309 MA
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 45mm | |
Outside Diameter | 100mm | |
Race Width | 25mm | |
Ball Bearing Type | Single Row Angular Contact Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Machined Metal | |
Number of Rows | 1 | |
Static Load Rating | 83kN | |
Dynamic Load Rating | 100kN | |
Bore Type | Parallel | |
Partial Bearing Code | QJ 309 MA | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 45mm | ||
Outside Diameter 100mm | ||
Race Width 25mm | ||
Ball Bearing Type Single Row Angular Contact Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Machined Metal | ||
Number of Rows 1 | ||
Static Load Rating 83kN | ||
Dynamic Load Rating 100kN | ||
Bore Type Parallel | ||
Partial Bearing Code QJ 309 MA | ||
- COO (Country of Origin):
- DE
The SKF Angular contact ball bearing has 45mm inner and 100mm outer ring raceways that are displaced relative to each other in the direction of the bearing axis. This means that these bearings are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads.
The axial load carrying capacity of angular contact ball bearings increases as the contact angle increases. The contact angle is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the combined load is transmitted from one raceway to another, and a line perpendicular to the bearing axis.
The axial load carrying capacity of angular contact ball bearings increases as the contact angle increases. The contact angle is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the combined load is transmitted from one raceway to another, and a line perpendicular to the bearing axis.
Single row design
Cylindrical bore type
Steel bearing
Cylindrical bore type
Steel bearing
