SKF 16048 MA 1 Row Deep Groove Ball Bearing - 240 mm ID, 360 mm OD
- RS Stock No.:
- 460-611
- Mfr. Part No.:
- 16048 MA
- Brand:
- SKF
Subtotal (1 unit)*
£2,560.77
(exc. VAT)
£3,072.92
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £2,560.77 |
*price indicative
- RS Stock No.:
- 460-611
- Mfr. Part No.:
- 16048 MA
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Inside Diameter | 240 mm | |
| Product Type | Deep Groove Ball Bearing | |
| Outside Diameter | 360 mm | |
| Race Width | 37mm | |
| Ball Material | Steel | |
| Cage Material | Machined Brass | |
| Number of Rows | 1 | |
| Internal Clearance | 85 μm | |
| Static Load Rating | 255kN | |
| Dynamic Load Rating | 203kN | |
| Standards/Approvals | No | |
| Bore Type | Cylindrical | |
| Series | 16048 | |
| Limiting Speed | 3000rpm | |
| Bearing Type | Deep Groove Ball | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Inside Diameter 240 mm | ||
Product Type Deep Groove Ball Bearing | ||
Outside Diameter 360 mm | ||
Race Width 37mm | ||
Ball Material Steel | ||
Cage Material Machined Brass | ||
Number of Rows 1 | ||
Internal Clearance 85 μm | ||
Static Load Rating 255kN | ||
Dynamic Load Rating 203kN | ||
Standards/Approvals No | ||
Bore Type Cylindrical | ||
Series 16048 | ||
Limiting Speed 3000rpm | ||
Bearing Type Deep Groove Ball | ||
- COO (Country of Origin):
- FR
Rupali

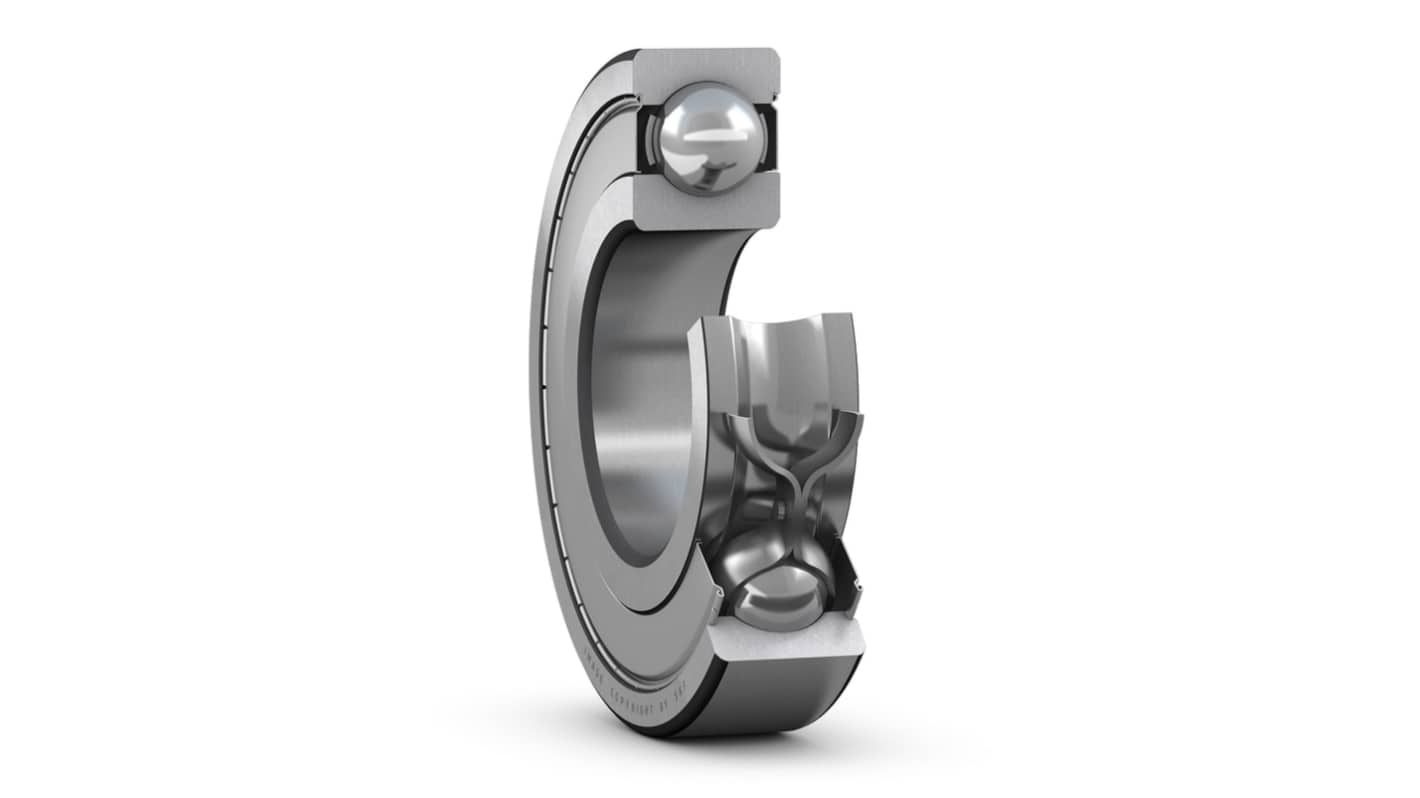

The SKF Single row deep groove ball bearings are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.
Simple and versatile and robust design
Low friction
High speed capability
Accommodate radial and axial loads in both directions
Require little maintenance
