SKF 7018 CDGA/P4A 1 Row Ball Bearing - 90 mm ID, 140 mm OD 24 mm Race Width
- RS Stock No.:
- 460-532
- Mfr. Part No.:
- 7018 CDGA/P4A
- Brand:
- SKF
Subtotal (1 unit)*
£699.33
(exc. VAT)
£839.20
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 03 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £699.33 |
*price indicative
- RS Stock No.:
- 460-532
- Mfr. Part No.:
- 7018 CDGA/P4A
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Ball Bearing | |
| Inside Diameter | 90mm | |
| Outside Diameter | 140mm | |
| Race Width | 24mm | |
| Race Material | Steel | |
| Ball Material | Steel | |
| End Type | Open | |
| Number of Rows | 1 | |
| Static Load Rating | 76.5kN | |
| Contact Angle | 15° | |
| Dynamic Load Rating | 79.3kN | |
| Standards/Approvals | RoHS | |
| Series | 7018 | |
| Limiting Speed | 15000, 9000rpm | |
| Race Type | Grooved | |
| Bearing Type | Angular Contact | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Ball Bearing | ||
Inside Diameter 90mm | ||
Outside Diameter 140mm | ||
Race Width 24mm | ||
Race Material Steel | ||
Ball Material Steel | ||
End Type Open | ||
Number of Rows 1 | ||
Static Load Rating 76.5kN | ||
Contact Angle 15° | ||
Dynamic Load Rating 79.3kN | ||
Standards/Approvals RoHS | ||
Series 7018 | ||
Limiting Speed 15000, 9000rpm | ||
Race Type Grooved | ||
Bearing Type Angular Contact | ||
Gavin

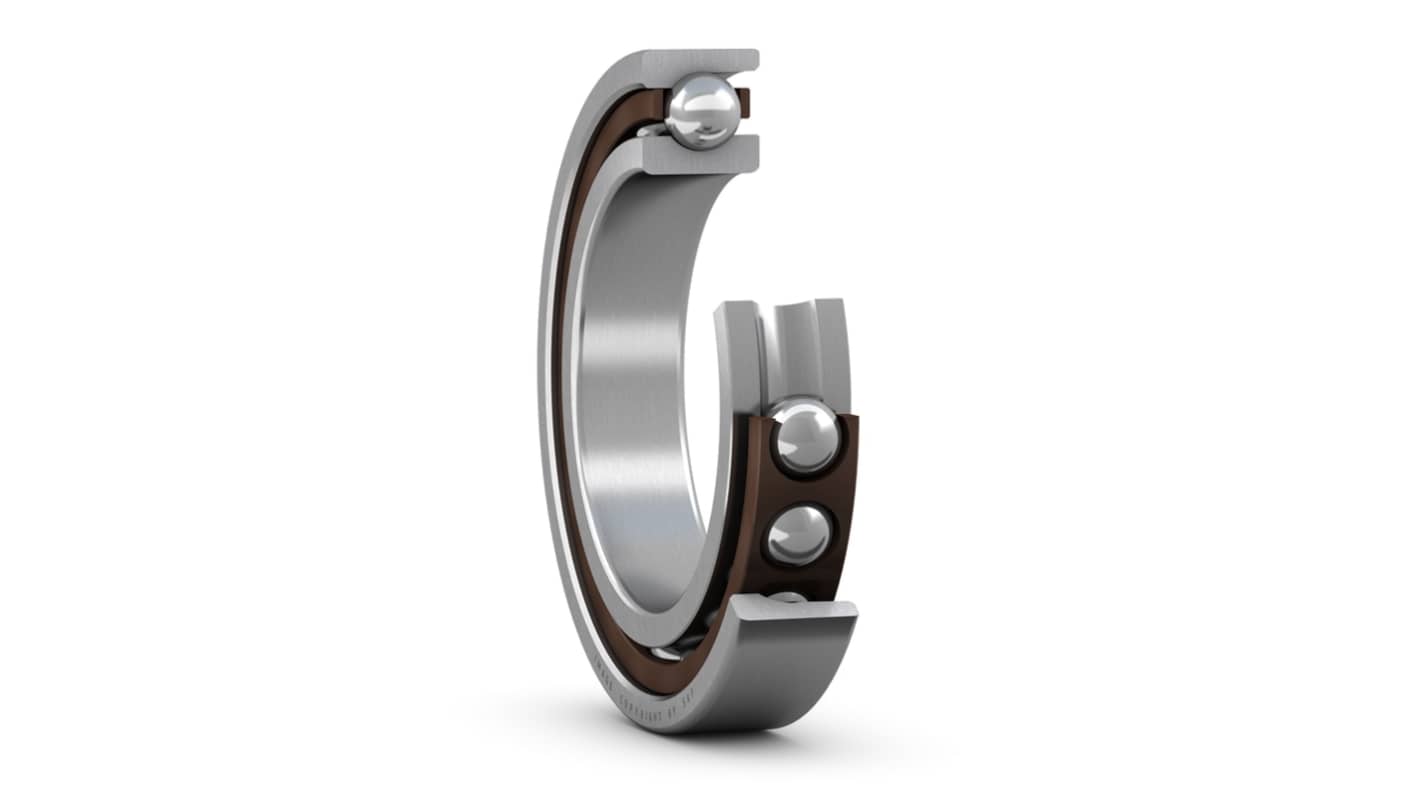

The SKF Angular Contact Ball Bearing offers remarkable performance for applications requiring high precision and load capacity. This bearing is designed to accommodate both radial and axial loads concurrently, ensuring superior functionality in various configurations. With its universally matchable design, it excels at supporting heavy loads at intermediate speeds while maintaining low operating temperatures. Its exceptional running accuracy and stiffness make it the ideal choice for demanding operational environments, where reliability and performance are paramount.
Utilises precision engineering to achieve very high running accuracy
Integrates a single row configuration for efficient space utilisation
Devoid of seals or coatings for straightforward maintenance and function
Comprises a robust bearing steel construction for enhanced durability
