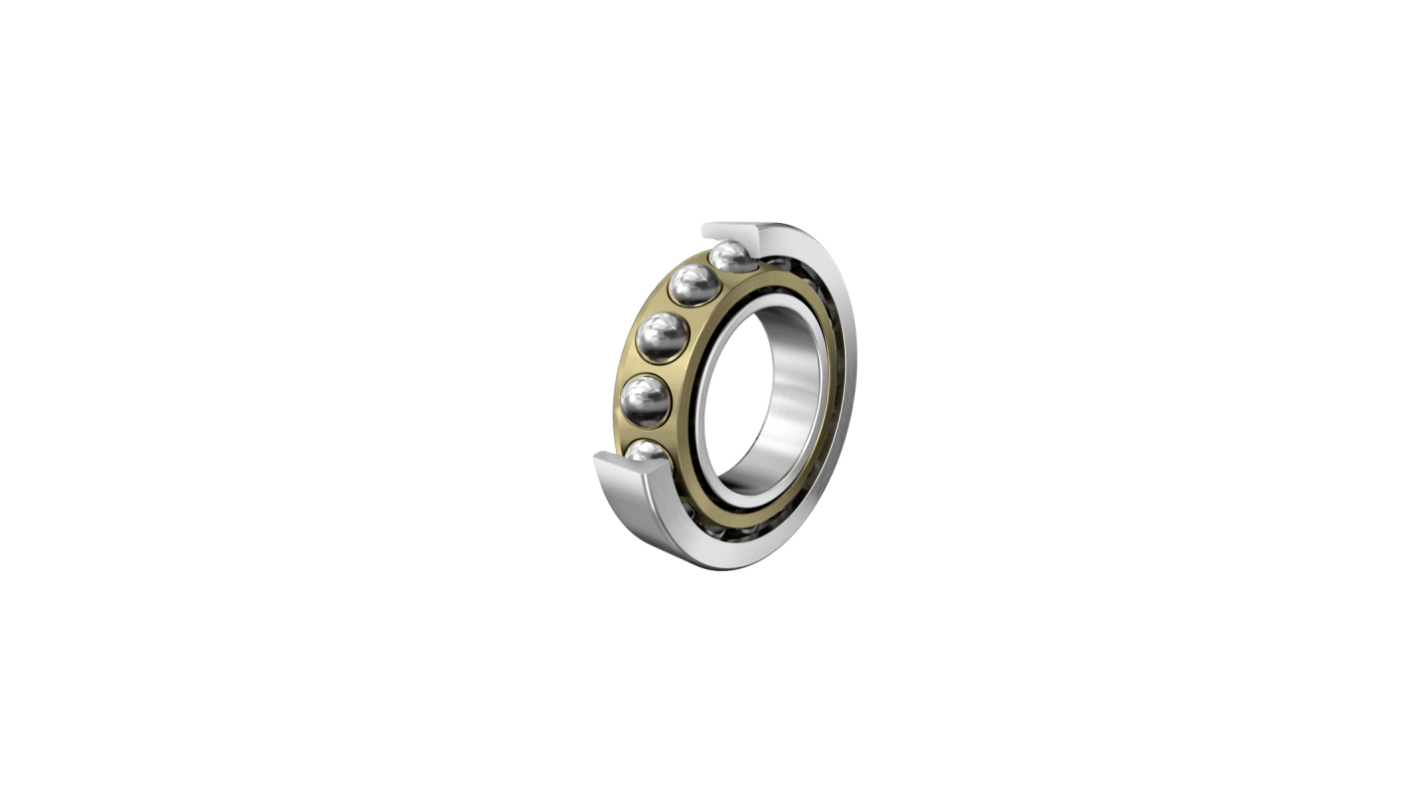

FAG 7216-B-XL-MP-UA 1 Row Angular Contact Ball Bearing - 80 mm ID, 140 mm OD 26 mm Race Width
- RS Stock No.:
- 313-143
- Mfr. Part No.:
- 7216-B-XL-MP-UA
- Brand:
- FAG
Subtotal (1 unit)*
£270.16
(exc. VAT)
£324.19
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £270.16 |
*price indicative
- RS Stock No.:
- 313-143
- Mfr. Part No.:
- 7216-B-XL-MP-UA
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Product Type | Angular Contact Ball Bearing | |
| Inside Diameter | 80 mm | |
| Outside Diameter | 140 mm | |
| Race Width | 26mm | |
| Cage Material | Solid Brass | |
| End Type | Unsealed | |
| Number of Rows | 1 | |
| Contact Angle | 40° | |
| Internal Clearance | Small Axial Internal Clearance | |
| Static Load Rating | 72000N | |
| Dynamic Load Rating | 85000N | |
| Standards/Approvals | RoHS Exempt | |
| Series | 72-B-XL-MP | |
| Limiting Speed | 8300rpm | |
| Flange Outside Diameter | 140mm | |
| Bearing Type | Angular Contact | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Product Type Angular Contact Ball Bearing | ||
Inside Diameter 80 mm | ||
Outside Diameter 140 mm | ||
Race Width 26mm | ||
Cage Material Solid Brass | ||
End Type Unsealed | ||
Number of Rows 1 | ||
Contact Angle 40° | ||
Internal Clearance Small Axial Internal Clearance | ||
Static Load Rating 72000N | ||
Dynamic Load Rating 85000N | ||
Standards/Approvals RoHS Exempt | ||
Series 72-B-XL-MP | ||
Limiting Speed 8300rpm | ||
Flange Outside Diameter 140mm | ||
Bearing Type Angular Contact | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
The FAG Angular Contact Ball Bearing is engineered for optimal performance under high load conditions. Designed with a solid brass cage, it ensures robustness and longevity, making it suitable for rigorous applications. The product’s design variant B guarantees precision and reliability, while its normal tolerance class PN meets standard specifications for industrial use. With matched bearing sets available, precise alignment and reduced axial clearance can be assured, enhancing performance across a range of machinery.
Solid brass cage offers excellent durability and load capacity
Non greased design eliminates the need for pre lubrication
Compatible with matched bearing sets for optimised fitting configurations
High limiting speed aids in reducing operational wear during high speed applications
Fatigue load limits make it reliable for high stress scenarios
Lightweight structure minimises overall assembly weight without compromising strength
