Subtotal (1 unit)*
£61.49
(exc. VAT)
£73.79
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 29 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £61.49 |
*price indicative
- RS Stock No.:
- 312-831
- Mfr. Part No.:
- 61912
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Product Type | Deep Groove Ball Bearing | |
| Ball Material | Steel | |
| Cage Material | Steel | |
| Race Material | Steel | |
| End Type | Open | |
| Number of Rows | 1 | |
| Internal Clearance | Normal | |
| Static Load Rating | 14300N | |
| Dynamic Load Rating | 17400N | |
| Bore Type | Cylindrical | |
| Standards/Approvals | DIN 625-1 | |
| Series | 619 | |
| Limiting Speed | 11300rpm | |
| Race Type | Deep Grooved | |
| Flange Outside Diameter | 85mm | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Product Type Deep Groove Ball Bearing | ||
Ball Material Steel | ||
Cage Material Steel | ||
Race Material Steel | ||
End Type Open | ||
Number of Rows 1 | ||
Internal Clearance Normal | ||
Static Load Rating 14300N | ||
Dynamic Load Rating 17400N | ||
Bore Type Cylindrical | ||
Standards/Approvals DIN 625-1 | ||
Series 619 | ||
Limiting Speed 11300rpm | ||
Race Type Deep Grooved | ||
Flange Outside Diameter 85mm | ||
- COO (Country of Origin):
- SK

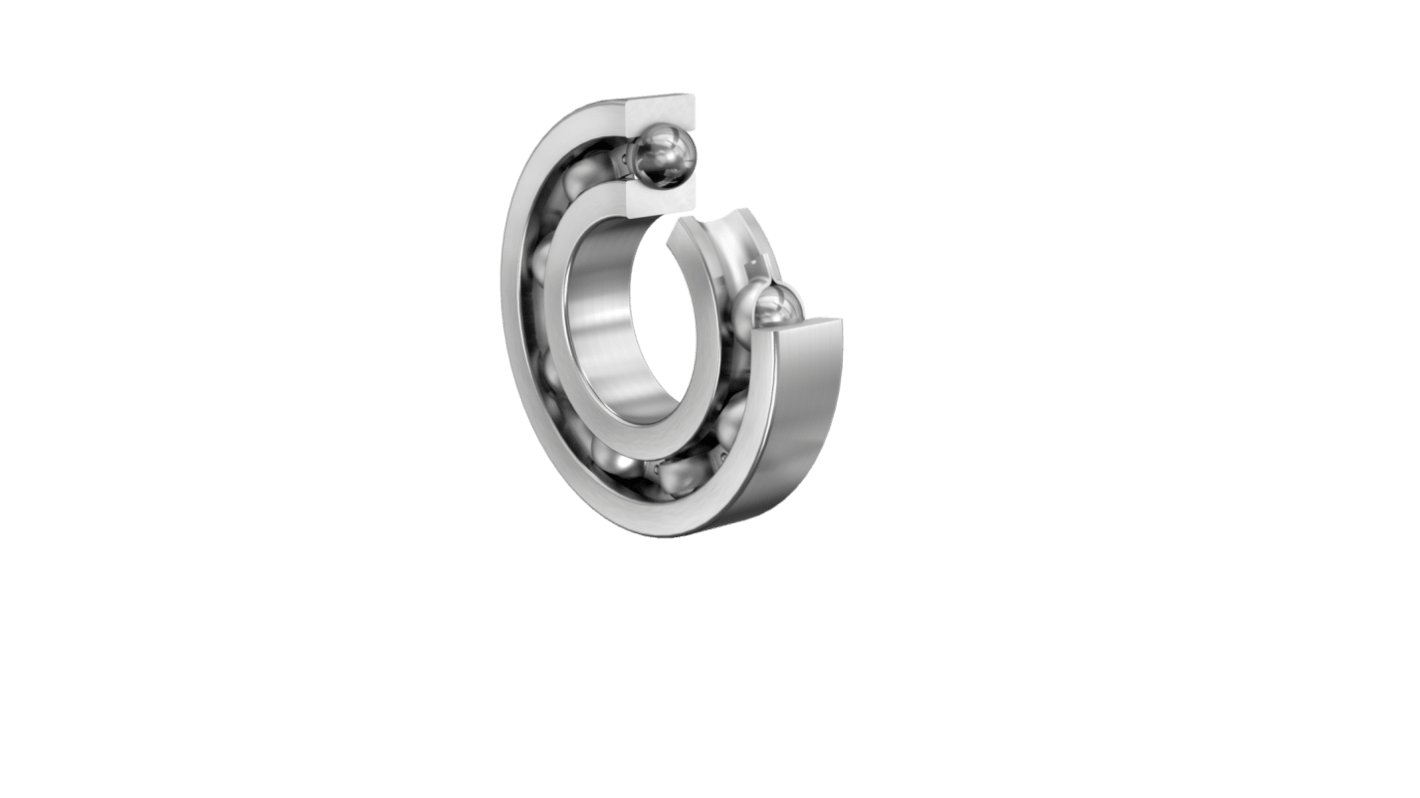

The FAG Deep Groove Ball Bearing is designed to offer exceptional performance in a wide range of applications. Designed with a single row and a steel sheet metal cage, it promises robust durability and reliability. The advanced engineering ensures that it provides optimal load ratings and a smooth operational experience, making it suitable for various industrial and mechanical uses. With minimal maintenance requirements, this bearing is not only efficient but also economical over its lifespan.
Optimised for both radial and axial loads enhancing versatility
Utilises modern materials for increased longevity and reduced wear
Designed to minimise operational noise contributing to a quieter workspace
Allows for a significant limiting speed supporting higher operational capabilities
Low weight contributes to ease of installation and less strain on surrounding components
