FAG 7218-B-XL-MP-UA 1 Row Ball Bearing - 90 mm ID, 160 mm OD 30 mm Race Width
- RS Stock No.:
- 312-796
- Mfr. Part No.:
- 7218-B-XL-MP-UA
- Brand:
- FAG
Subtotal (1 unit)*
£382.79
(exc. VAT)
£459.35
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £382.79 |
*price indicative
- RS Stock No.:
- 312-796
- Mfr. Part No.:
- 7218-B-XL-MP-UA
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Inside Diameter | 90mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 160mm | |
| Race Width | 30mm | |
| Cage Material | Solid Brass | |
| End Type | Unsealed | |
| Number of Rows | 1 | |
| Internal Clearance | Small Axial Internal Clearance | |
| Static Load Rating | 98000N | |
| Contact Angle | 40° | |
| Dynamic Load Rating | 114000N | |
| Standards/Approvals | RoHS Exempt | |
| Series | 72-B-XL-MP | |
| Limiting Speed | 7200rpm | |
| Flange Outside Diameter | 160mm | |
| Bearing Type | Angular Contact | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Inside Diameter 90mm | ||
Product Type Ball Bearing | ||
Outside Diameter 160mm | ||
Race Width 30mm | ||
Cage Material Solid Brass | ||
End Type Unsealed | ||
Number of Rows 1 | ||
Internal Clearance Small Axial Internal Clearance | ||
Static Load Rating 98000N | ||
Contact Angle 40° | ||
Dynamic Load Rating 114000N | ||
Standards/Approvals RoHS Exempt | ||
Series 72-B-XL-MP | ||
Limiting Speed 7200rpm | ||
Flange Outside Diameter 160mm | ||
Bearing Type Angular Contact | ||
RoHS Status: Exempt

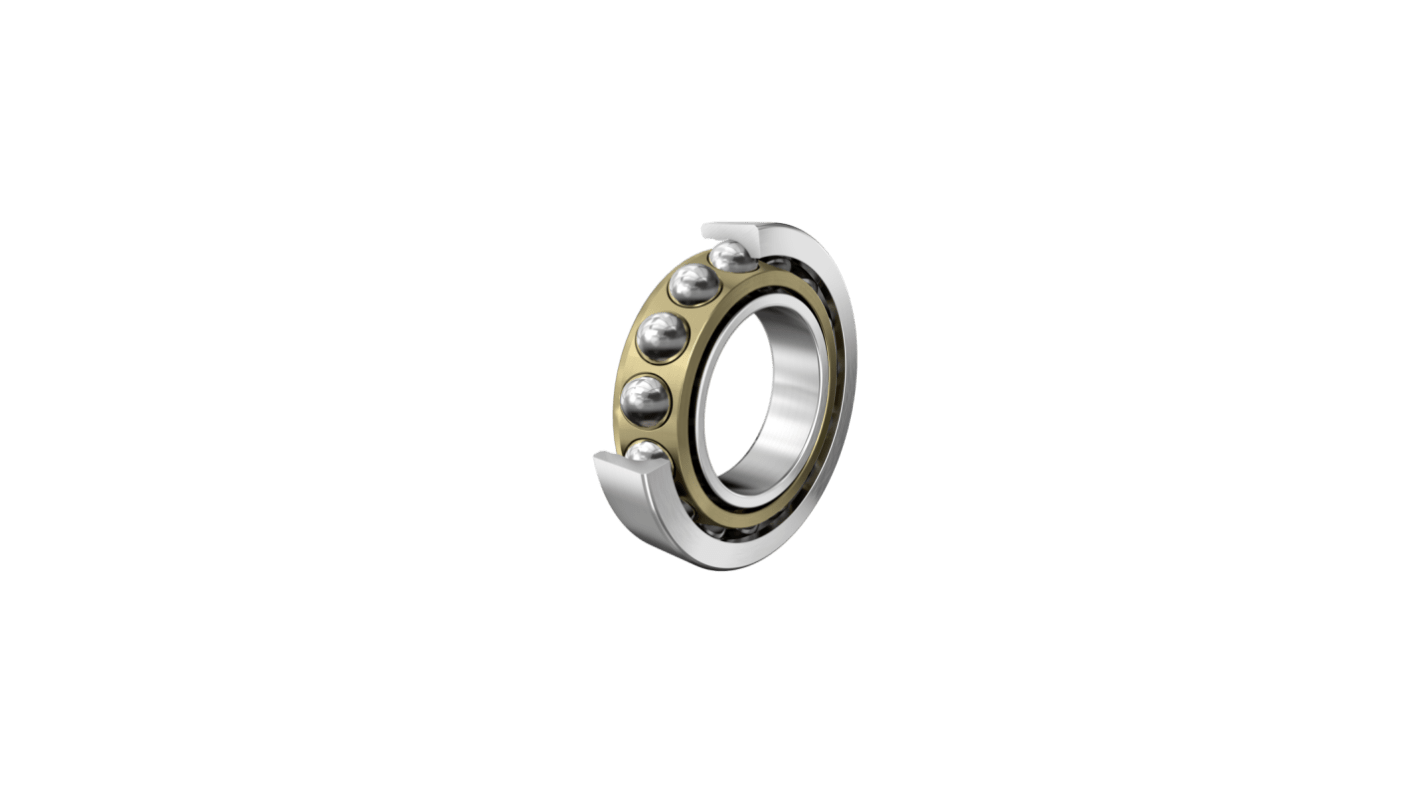

The FAG Angular Contact Ball Bearing is a remarkable solution designed for high performance applications. With its innovative single row and X life design, this bearing ensures enhanced durability and reliability under dynamic loads, making it ideal for various mechanical systems. The solid brass cage provides superior structural integrity while effectively guiding the balls for optimal performance. Its precision engineering allows for effective heat dissipation during operation, securing a longer service life.
Designed to operate within a wide temperature range
Ability to handle radial and axial loads efficiently
Precision tolerances ensure a snug fit and minimal vibrations
Fatigue load limit to prolong lifespan under stress
Low maintenance requirement due to its no grease design
Offers compatibility with a variety of mounting configurations
