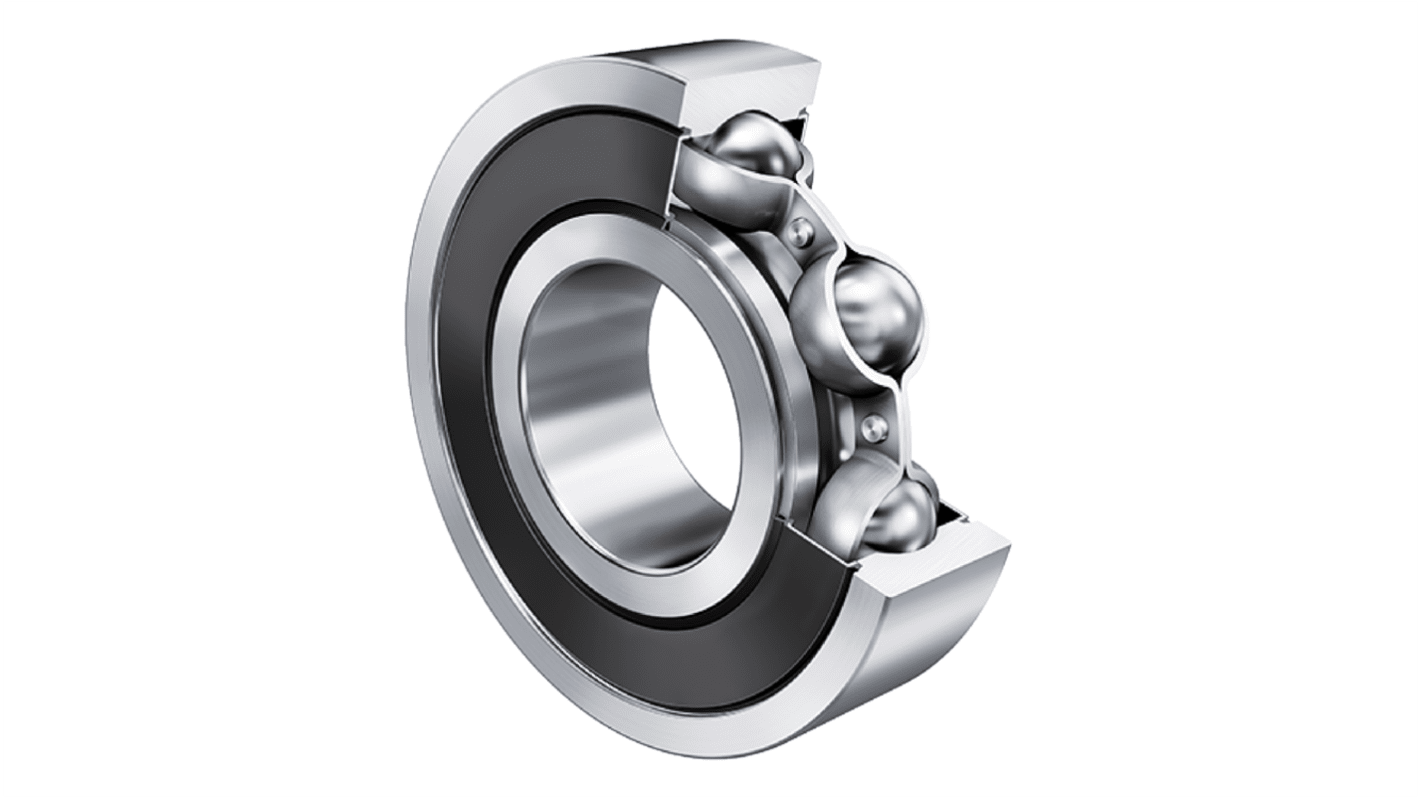

FAG 6209-C-HRS 1 Row Deep Groove Ball Bearing - 45 mm ID, 85 mm OD
- RS Stock No.:
- 311-166
- Mfr. Part No.:
- 6209-C-HRS
- Brand:
- FAG
Subtotal (1 unit)*
£28.30
(exc. VAT)
£33.96
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 12 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £28.30 |
*price indicative
- RS Stock No.:
- 311-166
- Mfr. Part No.:
- 6209-C-HRS
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Product Type | Deep Groove Ball Bearing | |
| Inside Diameter | 45mm | |
| Outside Diameter | 85mm | |
| Race Width | 19mm | |
| Race Material | Steel | |
| Ball Material | Steel | |
| Cage Material | Steel Sheet Metal | |
| End Type | Sealed | |
| Number of Rows | 1 | |
| Static Load Rating | 20300N | |
| Internal Clearance | Normal | |
| Dynamic Load Rating | 35500N | |
| Series | 62 | |
| Bore Type | Cylindrical | |
| Standards/Approvals | DIN 625-1 | |
| Limiting Speed | 7100rpm | |
| Race Type | Deep Grooved | |
| Flange Outside Diameter | 85mm | |
| Bearing Type | Deep Groove | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Product Type Deep Groove Ball Bearing | ||
Inside Diameter 45mm | ||
Outside Diameter 85mm | ||
Race Width 19mm | ||
Race Material Steel | ||
Ball Material Steel | ||
Cage Material Steel Sheet Metal | ||
End Type Sealed | ||
Number of Rows 1 | ||
Static Load Rating 20300N | ||
Internal Clearance Normal | ||
Dynamic Load Rating 35500N | ||
Series 62 | ||
Bore Type Cylindrical | ||
Standards/Approvals DIN 625-1 | ||
Limiting Speed 7100rpm | ||
Race Type Deep Grooved | ||
Flange Outside Diameter 85mm | ||
Bearing Type Deep Groove | ||
The FAG Deep Groove Ball Bearing represents precision engineering and reliability for a myriad of applications. Designed with a single row and featuring a Generation C internal design, it is ideal for situations where reduced friction and greater durability are paramount. The HRS sealing configuration ensures protection against contaminants, while the robust steel sheet metal cage enhances structural integrity.
Designed with a contact seal on one side for enhanced protection against contamination
Operates effectively under a wide temperature range which ensuring reliability in diverse conditions
Offers normal internal clearance for versatile application compatibility
Provides dimensional stability adding to its longevity and reducing maintenance needs
